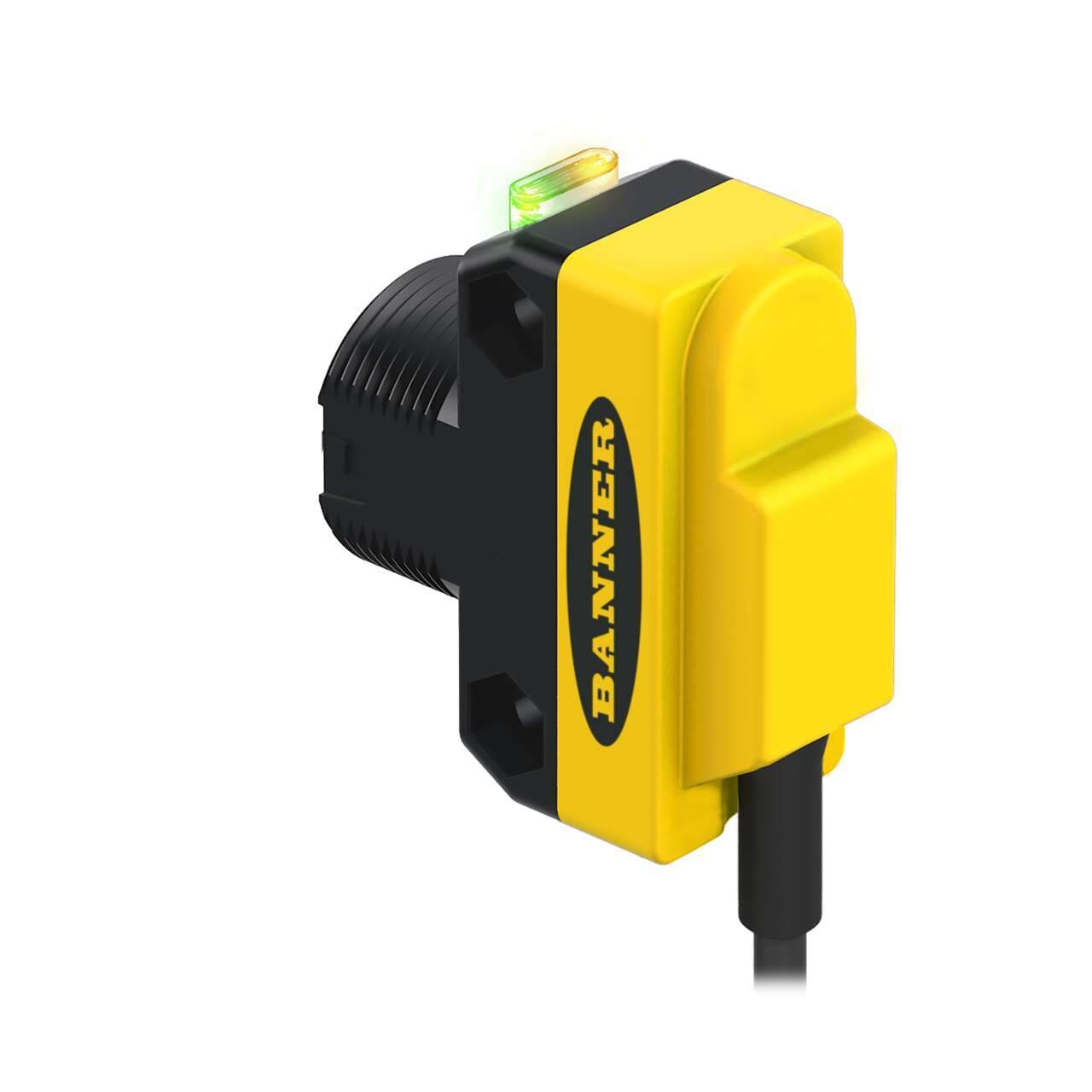

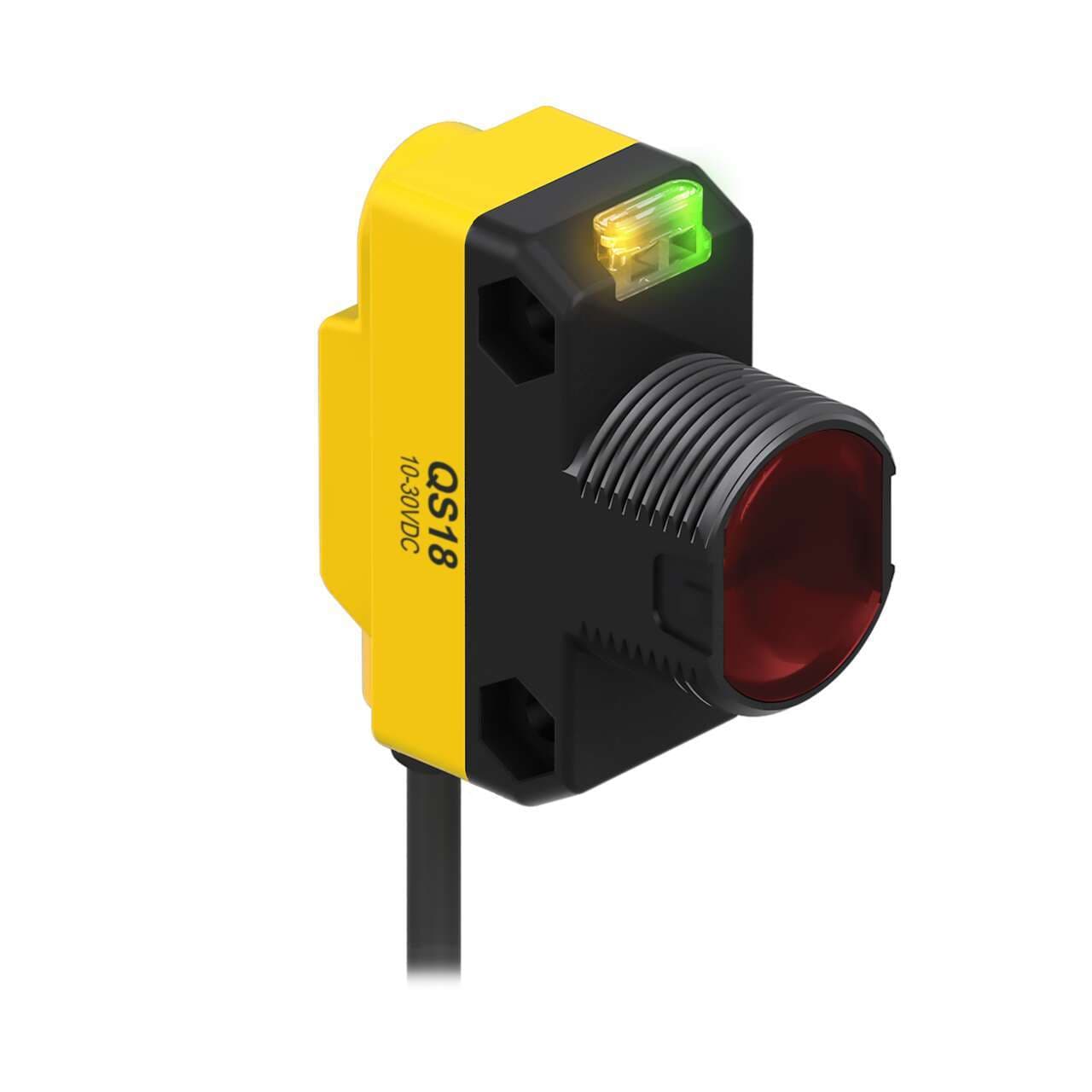

QS18VP6R W/30 Banner Proximity Sensors

QS18VP6R W/30 on Powermatic Associates
Banner
  • QS18VP6R W/30
  • QS18VP6R W/30

Part#:QS18VP6R W/30

Alt. Part#:61626

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    181.4368 g
  • Country Of Origin
    MX
  • Sensing Mode (Detailed)
    Receiver
  • Outputs
    PNP
  • Special Feature: Water Detection
    No
  • Adjustments
    N/A
  • DeviceNet
    No
  • Max Op. Temp. (°C)
    70
  • Connection
    Cable
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    ABS
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Delay at Power-up (ms)
    100
  • Barrel Diameter (mm)
    18
  • Feature: Quick Disconnect
    No
  • Sensing Mode (General)
    Opposed
  • Operation
    Light/Dark Operate
  • IP Rating
    IP67
  • Feature: Hazardous Area
    No
  • Quick Disconnect Type
    No QD
  • Special Feature: Remote Teach
    No
  • Indicator
    LEDs
  • IO Link
    No
  • Sensing Beam
    Visible Red or IR
  • Housing Style
    Rectangular w/M18 Mount
  • Output response time (ms)
    0.75 ON/0.375 OFF
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    No
  • NEMA Rating
    NEMA 6
  • Max Sensing Distance (mm)
    20000
  • Feature: Encapsulated
    No
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -20
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Audible
    No
  • Cable Length (m)
    9
  • Input/Output
    Discrete
  • Repeatability (µs)
    100
  • Opposed Mode Emitter/Receiver
    Receiver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6R W/30 on Powermatic Associates is $107.00. Order now.

About the product

Banner Engineering QS18VP6R W/30 is a photo-electric sensor designed for through-beam system applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with an acrylic lens. It is part of the QS18 series and offers a sensing distance of up to 20 meters. The sensor is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads, facilitating easy connection. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The QS18VP6R W/30 provides one digital output (PNP transistor; complementary NO/NC) and features an operating mode that allows for both Light-ON and Dark-ON activation. It boasts a quick response time of 0.75ms / 0.00075 s and is protected to IP67 NEMA 6 standards, ensuring its operation in various environmental conditions.
