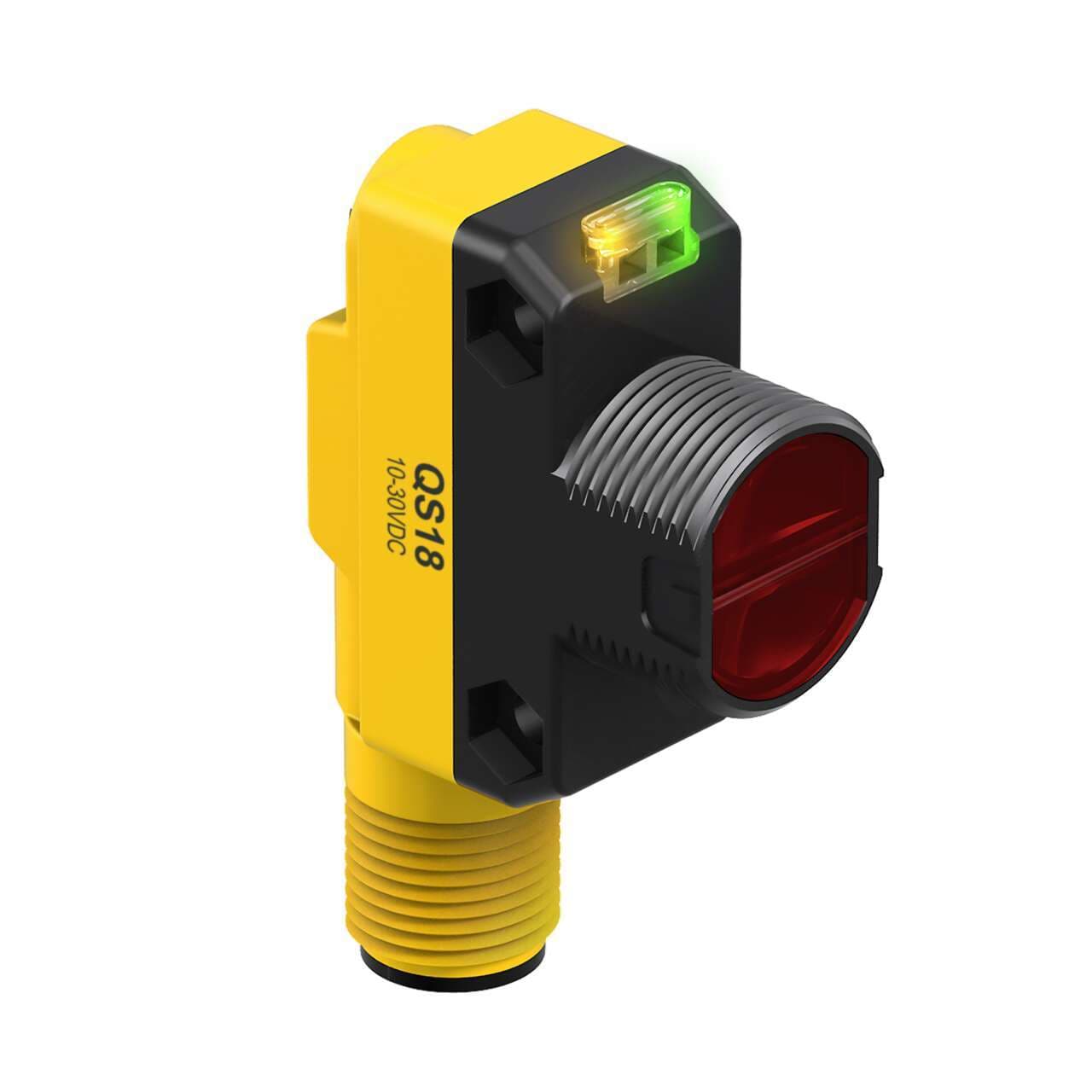

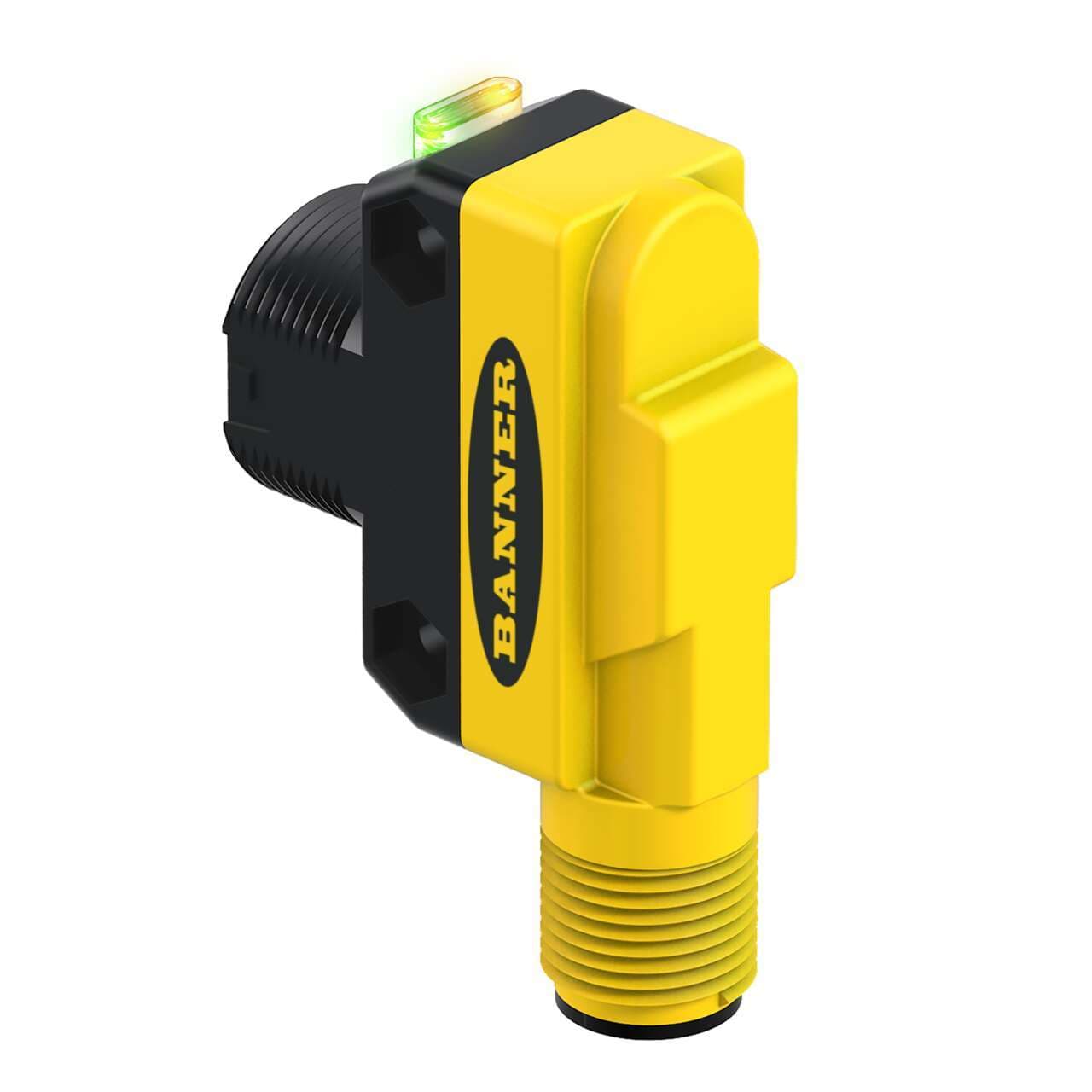

QS18VP6FF150Q8 Banner Proximity Sensors
Part#:QS18VP6FF150Q8
Alt. Part#:801162
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q18 Series: Fixed-Field; Range: 150 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin CN
- Operation Light/Dark Operate
- Outputs PNP
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 70
- Min Op. Temp. (°C) -20
- Output response time (ms) 0.85
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Sensing Beam Wavelength 632
- Number of Pins 4
- NEMA Rating NEMA 6
- Delay at Power-up (ms) 100
- Primary Housing Material ABS
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Power DC
- Housing Style Rectangular w/M18 Mount
- Input/Output Discrete
- Sensing Mode (General) Proximity
- Small Visible Spot LED
- Max Sensing Distance (mm) 150
- Connection Integral QD
- Special Feature: Water Detection No
- Repeatability (µs) 160
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- IP Rating IP67
- Adjustments N/A
- Feature: Encapsulated No
- Indicator LEDs
- Barrel Diameter (mm) 18
- Feature: Quick Disconnect Yes
- Feature: Hazardous Area No
- Feature: Audible No
- IO Link No
- Feature: Timing (Hold/Delay) No
- Feature: Chemical Resistant No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FF150Q8 on Powermatic Associates is $102.00. Order now.
About the product
Banner Engineering QS18VP6FF150Q8 is a fixed-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance its sensing capabilities. This sensor is equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. As part of the QS18 series, it offers a high degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, designed for longevity and resilience. The QS18VP6FF150Q8 has a sensing distance of 150mm and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes for flexible application use. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.85ms / 0.00085 s, facilitating efficient operation in automated systems.
