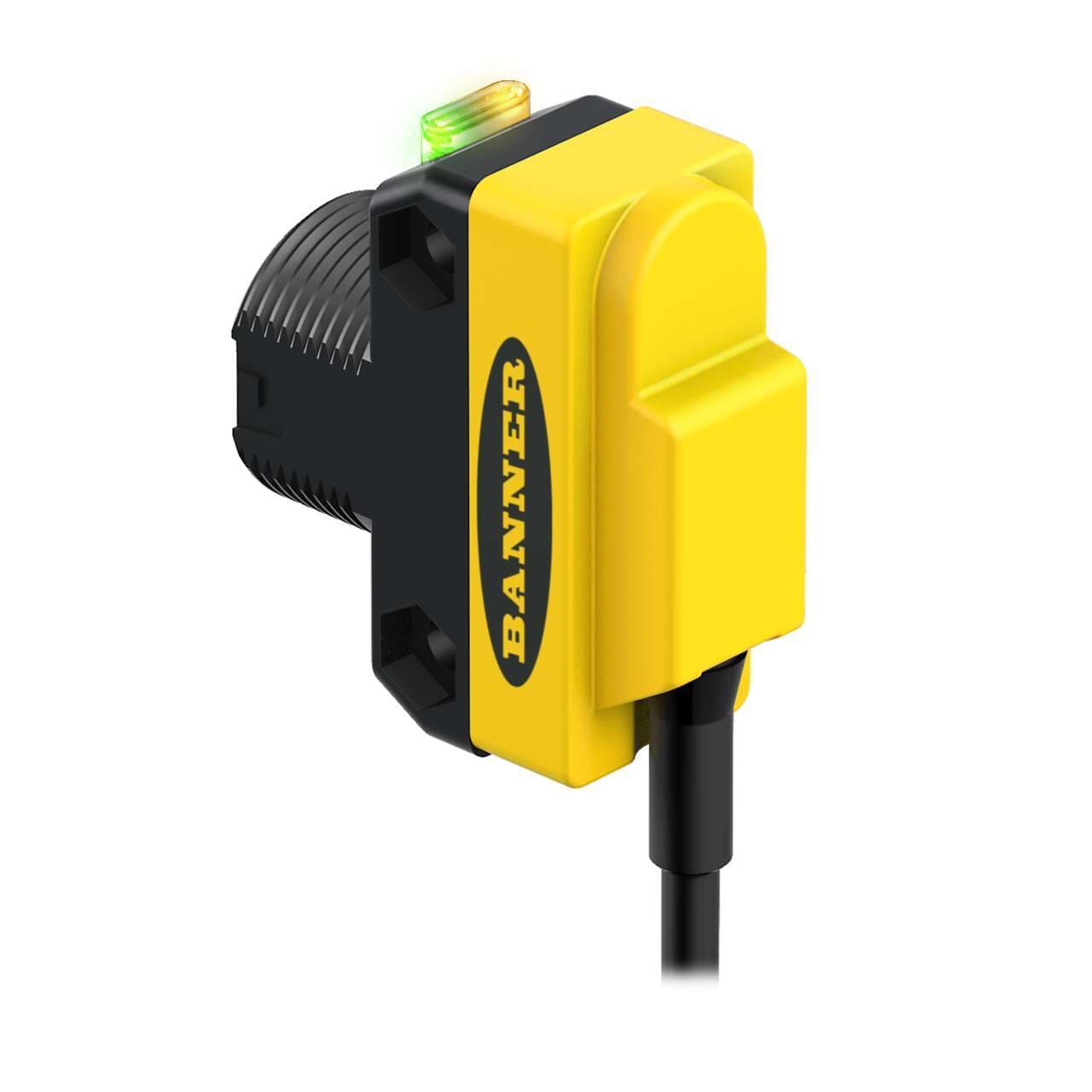

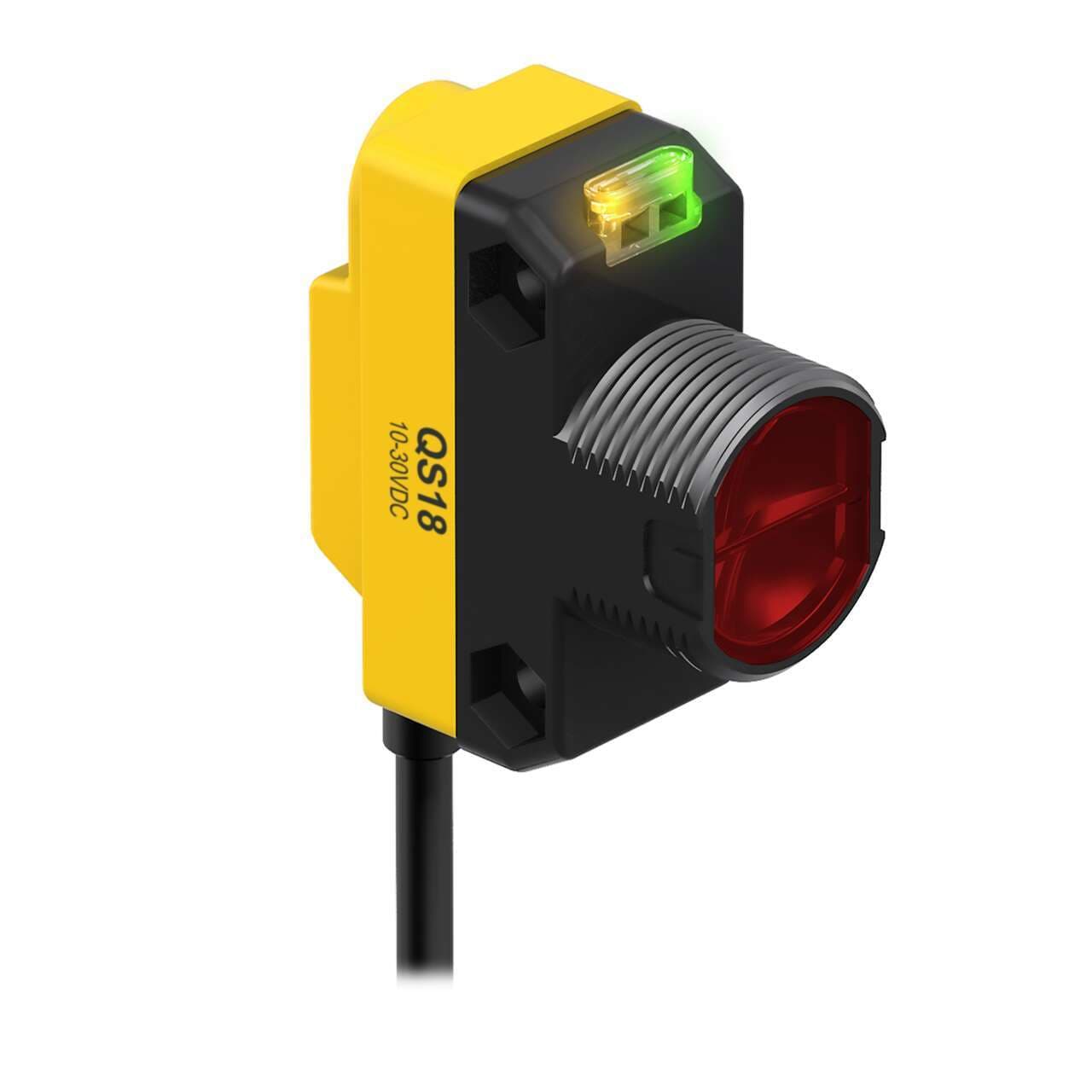

QS18VN6FF50Q5 Banner Proximity Sensors

Name: QS18VN6FF50Q5
Brand: Banner
Price: 119 USD
Availability: BackOrder

Part#:QS18VN6FF50Q5

Alt. Part#:71753

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M12 Pigtail QD

Product Details

Weight
54.43104 g
Country Of Origin
MX
Feature: Encapsulated
No
IO Link
No
DeviceNet
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
Indicator
LEDs
Barrel Diameter (mm)
18
Lens Material
Acrylic
Adjustments
N/A
Max Op. Relative Humidity [%]
95% @ 50°C
IP Rating
IP67
NEMA Rating
NEMA 6
Number of Pins
4
Repeatability (µs)
160
Delay at Power-up (ms)
100

Sensing Beam Wavelength

630

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Output response time (ms)

0.85

Max Op. Temp. (°C)

Quick Disconnect Type

M12 (Euro)

Power Supply/Supply Voltage

10-30 V dc

Min Op. Temp. (°C)

-20

Operation

Light/Dark Operate

Connection

Pigtail QD

Outputs

NPN

Sensing Mode (Detailed)

Background Suppression (Fixed)

Sensing Mode (General)

Proximity

Housing Style

Rectangular w/M18 Mount

Max Sensing Distance (mm)

Primary Housing Material

ABS

Small Visible Spot

LED

Input/Output

Discrete

Power

Sensing Beam

Visible Red LED

Product series / family name

WORLD-BEAM series

Design

background suppression system

Operating mode

Light-ON Dark-ON

Response time

0.85ms / 0.00085 s

Order code / Manufacturer SKU

71753

Light Color

Visible red

Thread size

M18

Primary brand

Banner Engineering

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Digital outputs

1 x digital output (NPN transistor)

Ambient air temperature for operation

-20...+70 °C

Sensing distance

50mm

Shape

Rectangular

Degree of protection

IP67 NEMA 6

Mounting mode

Threaded mount

Main function

Sensor (Photo-electric)

Material

thermoplastic housing Acrylic lns.

Sub-range name

QS18 series

Functions

Fixed-field photo-electric sensor green LED (power ON) yellow LED (light sensed)

Compliant with standard(s)

cURus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FF50Q5 on Powermatic Associates is $119.00. Order now.

About the product

Banner Engineering QS18VN6FF50Q5 is a fixed-field photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and comes pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, facilitating easy integration into various systems. Part of the QS18 series, it boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it has a sensing distance of 50mm. The visible red light aids in alignment and detection, while the operating modes include Light-ON and Dark-ON for versatile application. It features 1 x digital output (NPN transistor; complementary NO/NC) and a quick response time of 0.85ms / 0.00085 s, making it suitable for fast-paced automation tasks.
