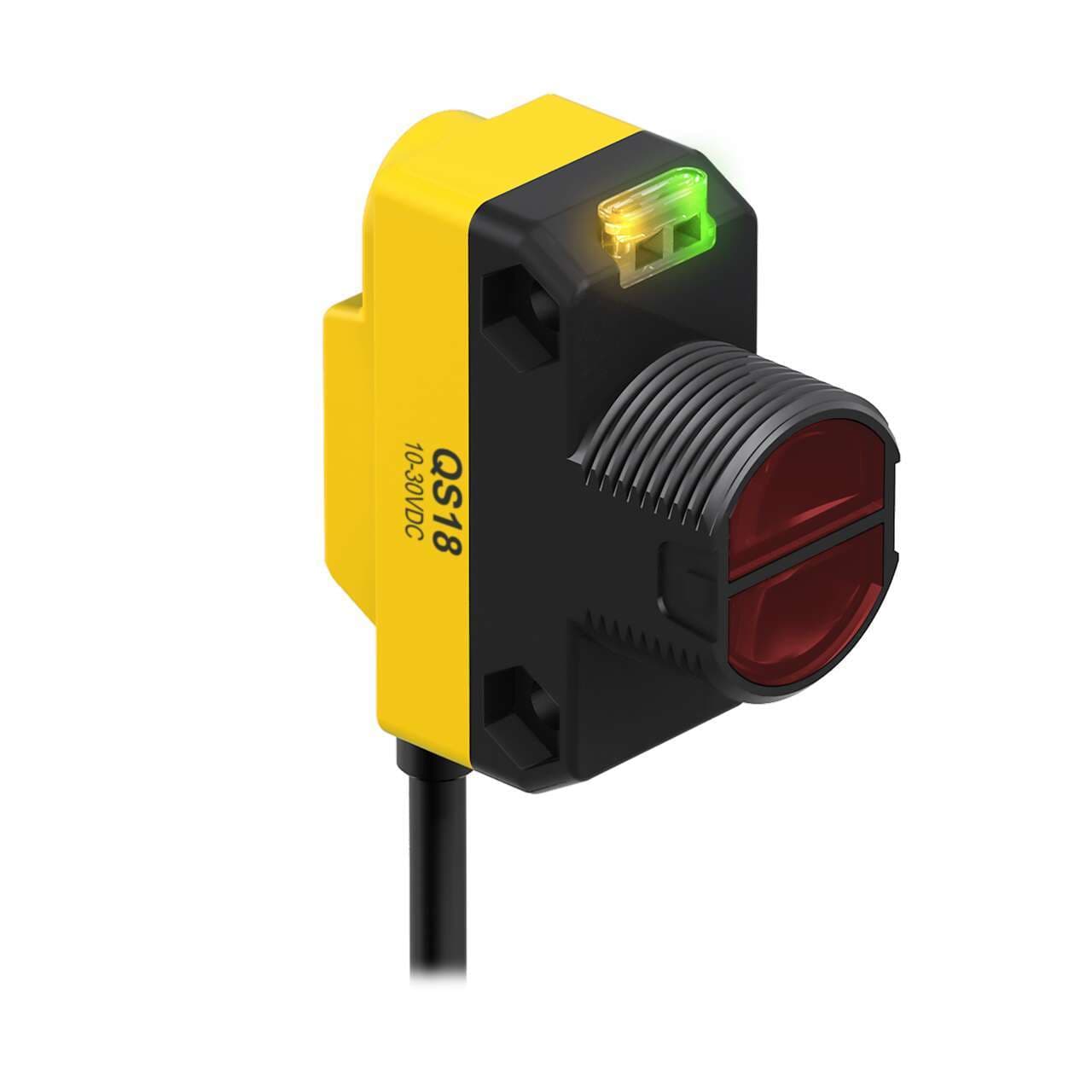

QS18VN6D W/30 Banner Proximity Sensors

Name: QS18VN6D W/30
Brand: Banner
Price: 121 USD
Availability: BackOrder

Part#:QS18VN6D W/30

Alt. Part#:61653

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Diffuse; Range: 450 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 9 m (30 ft) Cable

Product Details

Weight
181.4368 g
Country Of Origin
MX
Feature: Hazardous Area
No
Feature: Timing (Hold/Delay)
No
IO Link
No
Feature: Audible
No
Indicator
LEDs
Adjustments
Potentiometer
Feature: Quick Disconnect
No
NEMA Rating
NEMA 6
Repeatability (µs)
150
Min Op. Temp. (°C)
-20
Primary Housing Material
ABS
DeviceNet
No
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Barrel Diameter (mm)
18
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
IP Rating
IP67

Number of Pins

Delay at Power-up (ms)

100

Special Feature: Water Detection

Special Feature: Remote Teach

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Output response time (ms)

0.6

Operation

Light/Dark Operate

Quick Disconnect Type

No QD

Connection

Cable

Power Supply/Supply Voltage

10-30 V dc

Outputs

NPN

Max Sensing Distance (mm)

450

Sensing Mode (General)

Proximity

Input/Output

Discrete

Cable Length (m)

Sensing Beam

Infrared LED

Housing Style

Rectangular w/M18 Mount

Sensing Mode (Detailed)

Diffuse

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6D W/30 on Powermatic Associates is $121.00. Order now.

About the product

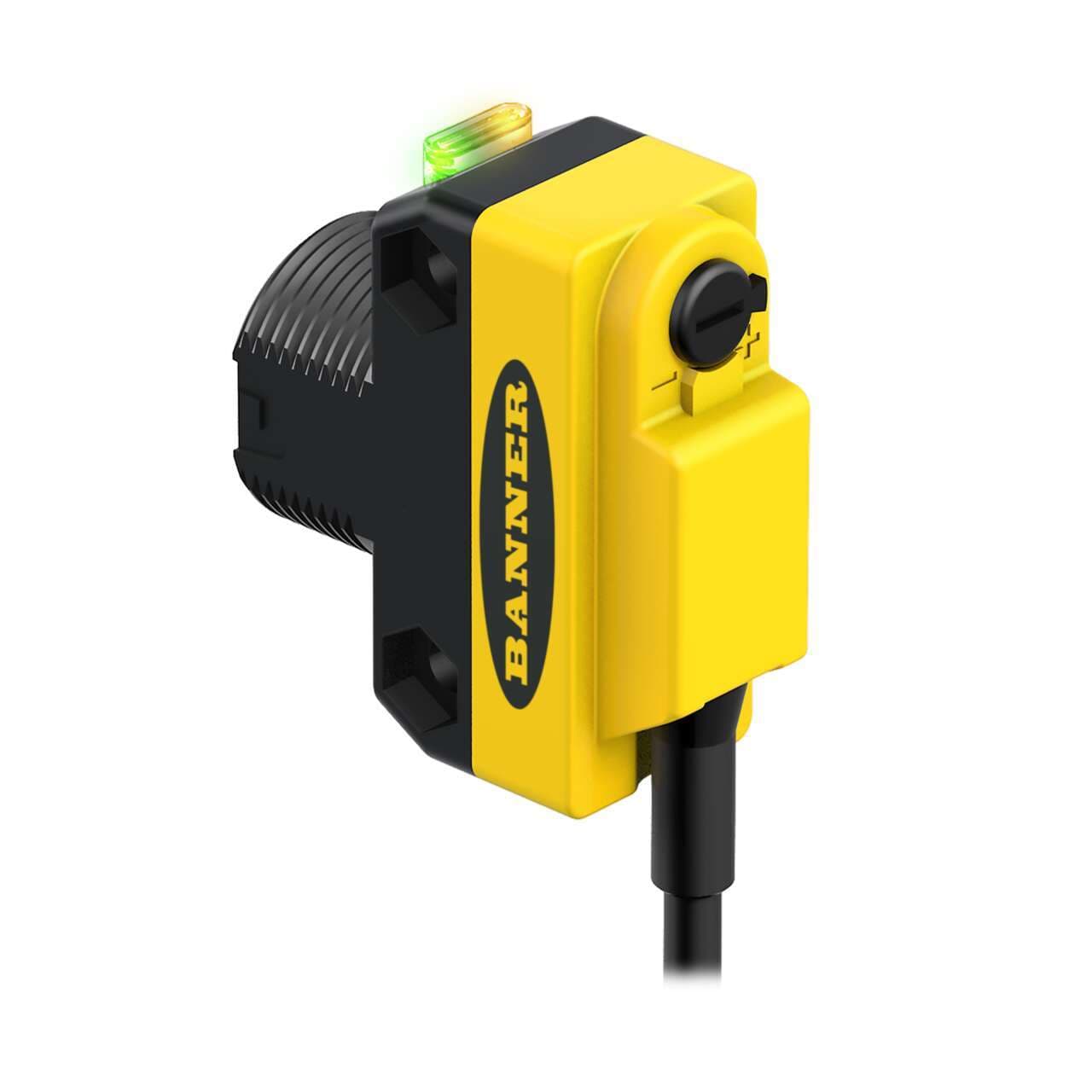

Banner Engineering QS18VN6D W/30 is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is equipped with a diffuse mode potentiometer for easy adjustment. This sensor is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, ensuring convenient connection options. Part of the QS18 series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. With a sensing distance of 450mm and utilizing infrared (IR) light, it supports both Light-ON and Dark-ON operating modes. Additionally, it features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a rapid response time of 0.6ms / 0.0006 s.
