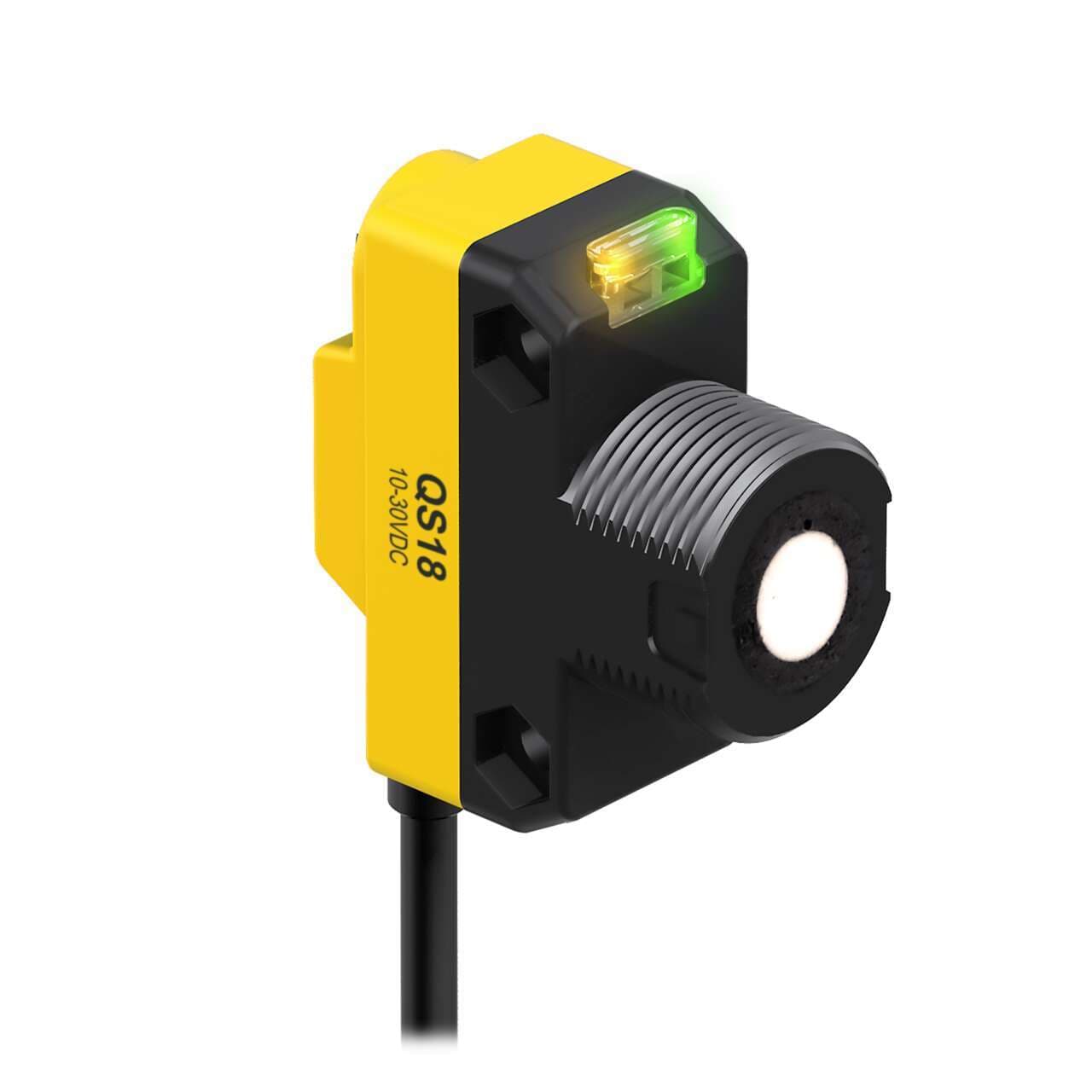

QS18UNAEQ5 Banner Ultrasonic Sensors

Product Details

• Weight
  18.14368 g
• Country Of Origin
  CN
• Wireless
  No
• 1-wire Serial Interface
  No
• Profibus
  No
• SSI
  No
• RS-485
  No
• RS-422
  No
• PROFINET
  No
• RS-232
  No
• Common Ethernet Protocol
  No
• IO Link
  No
• Feature: Remote Teach
  Yes
• Feature: Chemical Resistant
  No
• Application: Ultrasonic
  Yes
• Feature: Timing (Hold/Delay)
  No
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Clear Object Detection
  Yes
• Minimum Window Size (mm)
  5
• Rep Rate (ms)
  7.5
Power/Current Consumption (exclusive of load)
25 mA max
Max Off-state Leakage Current (µA)
NPN: < 10; PNP: < 5
Discrete Output Hysteresis (mm)
1.4
Ultrasonic Frequency (kHz)
300
Barrel Diameter (mm)
18
Minimum Response Time (ms)
15
Warm-up Time (minutes)
5
Min Operating Temperature (°C)
-20
Max Op. Relative Humidity Non-Condensing (%)
100
Storage Temperature (°C)
-40 to 85
Max Operating Temperature (°C)
60
NEMA Rating
NEMA 6P
Output Protection
Protected against short circuit conditions
IP Rating
IP68
Discrete (Switched) Outputs
1 NPN
Max Discrete (Switched) Output (mA)
100
Output Saturation Voltage PNP Outputs
< 2.0 V at 100 mA
Output Saturation Voltage NPN Outputs
< 1.6 V at 100 mA
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Temperature Effect (mm/°C)
+/- 0.05% of sensing distance/°C from 0 °C to +60 °C, +/- 1% of sensing distance/°C from -20 °C to 0 °C
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Delay at Power-up (ms)
300
Number of Pins
4
Power Supply
12-30 V dc
Max Sensing Distance (mm)
500
Adjustments
Remote Teach
Minimum Sensing Distance (mm)
50
Quick Disconnect Type
M12 (Euro)
Analog Resolution/Discrete Repeatability
0.7
Primary Housing Material
ABS
Device Type
Sensor
Housing Style
Rectangular w/M18 Mount
Sensing Mode (Detailed)
Time of Flight
Connection
Pigtail QD
Input/Output
Discrete
Indicator
LED(s)
Sensing Mode (General)
Proximity
PC Configurable
No
Cable Length (m)
0.15
Power
DC
Max Measurement Range
>100 mm - <=500 mm
Sensing Beam
Ultrasonic
Product series / family name
WORLD-BEAM series
Thread size
M18
Degree of protection
IP68 NEMA 6P
Emission frequency
300kHz
Supply voltage (DC)
12Vdc-30Vdc (24Vdc nom.)
Mounting mode
Threaded mount
Primary brand
Banner Engineering
Sensing distance
50...500mm
Ambient air temperature for operation
-20...+60 °C
Main function
Sensor (Distance)
Functions
Ultrasonic distance sensor green LED (power ON) yellow LED (output state) remote IP68 / NEMA 6 TEACH btn.
Shape
Rectangular
Digital outputs
1 x digital output (NPN transistor)
Sub-range name
QS18U series
Design
time-of-flight system
Connection type
Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
Material
ABS housing
Order code / Manufacturer SKU
73163
Protection functions
Short-circuit

Related documents QS18UNAEQ5 Specs
