QS186LE2Q5
Banner
Product Lifecycle: Active

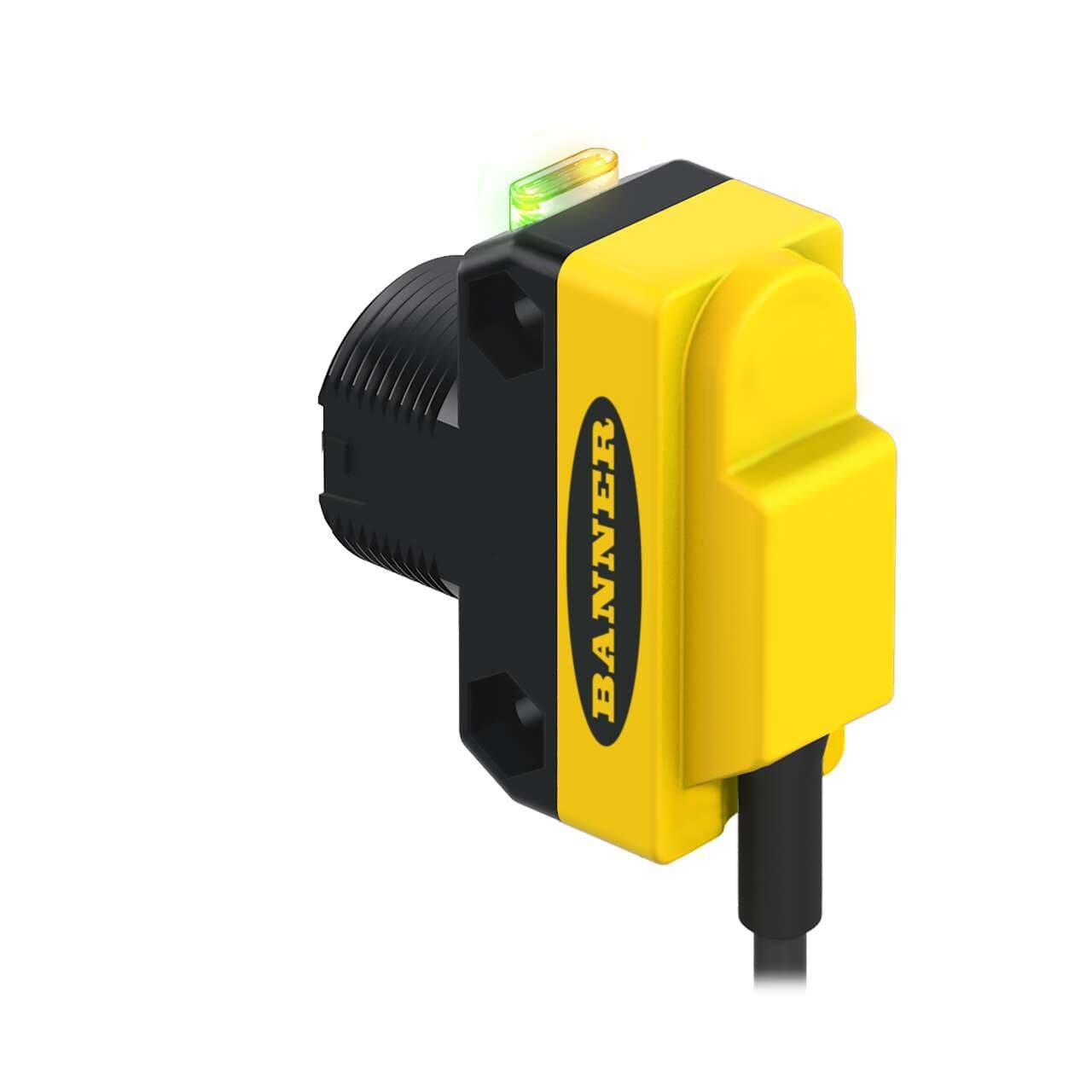

Banner Engineering QS186LE2Q5 is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and is characterized by its opposed (small spot) system, ensuring accurate sensing over distances up to 30m. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy connection. The QS186LE2Q5 is built with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens, offering a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc / 24Vdc nominal, and emits a visible red light with a wavelength of 650 nm for clear visibility and alignment.

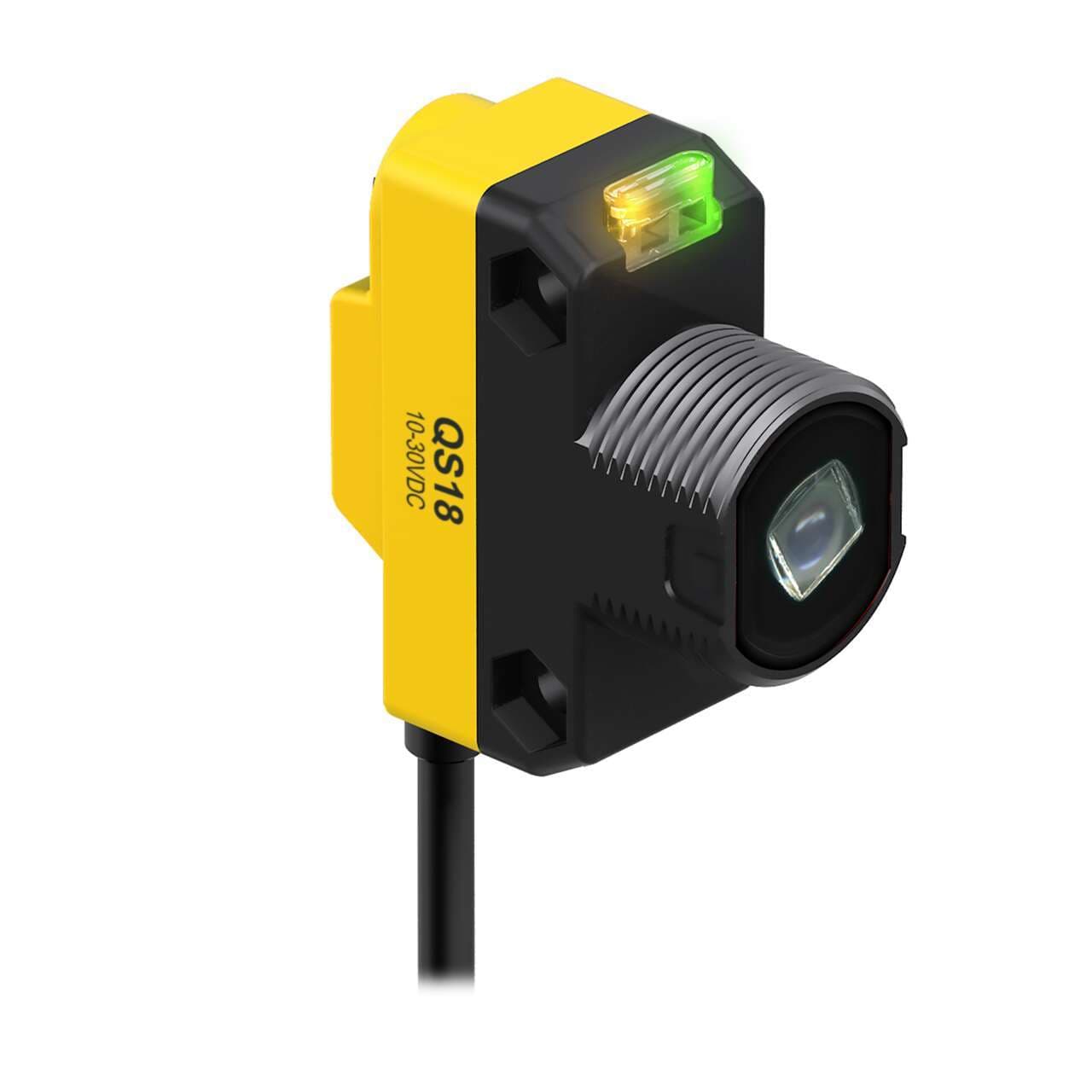

![QS186LE2Q5](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2Ff80a157b-19af-4c86-ab70-bc4861ddc6b8.jpeg&w=3840&q=75)
Banner Engineering QS186LE2Q5 is a Class 2 laser photo-electric sensor designed for precise detection tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50°C. This sensor is part of the QS186LE series and is characterized by its opposed (small spot) system, ensuring accurate sensing over distances up to 30m. It comes pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy connection. The QS186LE2Q5 is built with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens, offering a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc / 24Vdc nominal, and emits a visible red light with a wavelength of 650 nm for clear visibility and alignment.
Product details
- IO LinkNo
- DeviceNetNo
- Feature: Quick DisconnectYes
- Feature: Chemical ResistantNo
- IndicatorLEDs
- Barrel Diameter (mm)18
- Opposed Mode Emitter/ReceiverEmitter
- Lens MaterialPMMA
- AdjustmentsN/A
- Feature: AudibleNo
- Feature: EncapsulatedNo
- Feature: Hazardous AreaNo
- Feature: Timing (Hold/Delay)No
- NEMA RatingNEMA 6
- IP RatingIP67
- Max Op. Relative Humidity [%]95% @ 50°C
- Repeatability (µs)N/A
- Number of Pins4
- Sensing Beam Wavelength650
- Special Feature: Water DetectionNo
- Delay at Power-up (ms)10
- Special Feature: Remote TeachNo
- Output response time (ms)N/A
- Min Op. Temp. (°C)-10
- OperationN/A
- Max Op. Temp. (°C)50
- Special Feature: Intrinsically SafeNo
- ConnectionPigtail QD
- Quick Disconnect TypeM12 (Euro)
- Power Supply/Supply Voltage10-30 V dc
- Small Visible SpotLaser
- OutputsN/A
- Max Sensing Distance (mm)30000
- Laser ClassificationClass 2
- Housing StyleRectangular w/M18 Mount
- Primary Housing MaterialABS
- Sensing BeamVisible Red Laser
- Sensing Mode (General)Opposed
- Sensing Mode (Detailed)Laser Emitter
- PowerDC
- Light ColorVisible red
- Thread sizeM18
- Mounting modeThreaded mount
- Product series / family nameWORLD-BEAM series
- FunctionsClass 2 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
- ShapeRectangular
- Materialthermoplastic housing PMMA lns.
- Sub-range nameQS186LE series
- Wavelength650 nm
- Degree of protectionIP67 NEMA 6
- Order code / Manufacturer SKU75954
- Primary brandBanner Engineering
- Supply voltage (DC)10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection typePre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Compliant with standard(s)cURus CE
- Main functionSensor (Photo-electric)
- Designopposed (small spot) system
- Ambient air temperature for operation-10...+50 °C
