QDE-12100E Banner Cordsets

Name: QDE-12100E
Brand: Banner
Price: 128 USD
Availability: BackOrder

Part#:QDE-12100E

Manufacturer:Banner

Alt. Part#:13801

Product Lifecycle:Active

Get a quick Quote!

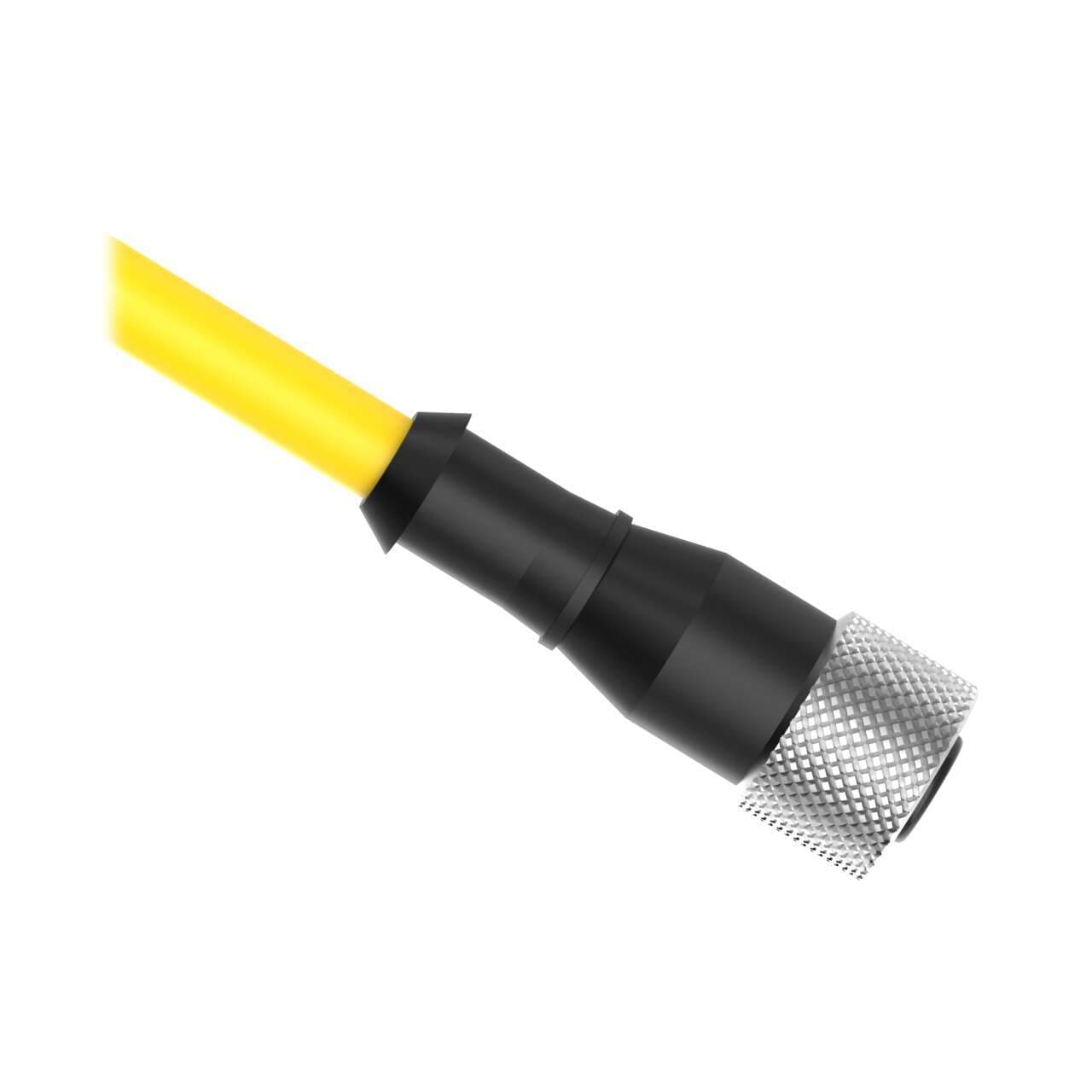

Cordset: Single Ended M12; 11-pin Straight Female; 30.48 m 11x24 Yellow PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QDE-12100E Banner price in the box on the right side or send a quick quote.

Product Details

Weight
1721.835232 g
Country Of Origin
TW
Primary Number of Conductors
11
Primary Orientation
Straight
Oil/Grease Resistant
No
Secondary Connector Type
Flying Leads
Primary AWG
24
Feature: Hazardous Area
No
Primary Gender
Female
Primary Coupling Method
M12 Single Key
Primary Connector Type
EURO
IP Rating
IP67
Coupling Material/Color
Nickel Plated Brass
Voltage Rating (V)
60 V ac/75 V dc
Maximum Temp. (°C)
105
Minimum Temp. (°C)
-40
Current Rating (A)
2.0
Connector Body Material/Color
PUR Black
Cordset Length (m)
30.5
Trunk Length (m)
No Trunk

Number of Connectors

Shield/No Shield

No Shield

Outside Cable Diameter (mm)

Cable Jacket Color

Yellow

Number of Contacts

Cable Jacket Material

PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QDE-12100E Description

Banner Engineering QDE-12100E is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 12-pin Euro-style M12 female connector and bare end flying leads. The cable has a diameter of 6mm and is protected by yellow sheathing made of PVC, ensuring durability and visibility. It is equipped with a nickel-plated brass coupling nut for secure connections. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The QDE-12100E is rated for 75Vdc and 60Vac, with a total length of 30.5 meters, accommodating extensive reach for various installation needs.
