Q45UR3LIU64C W/30 Banner Ultrasonic Sensors

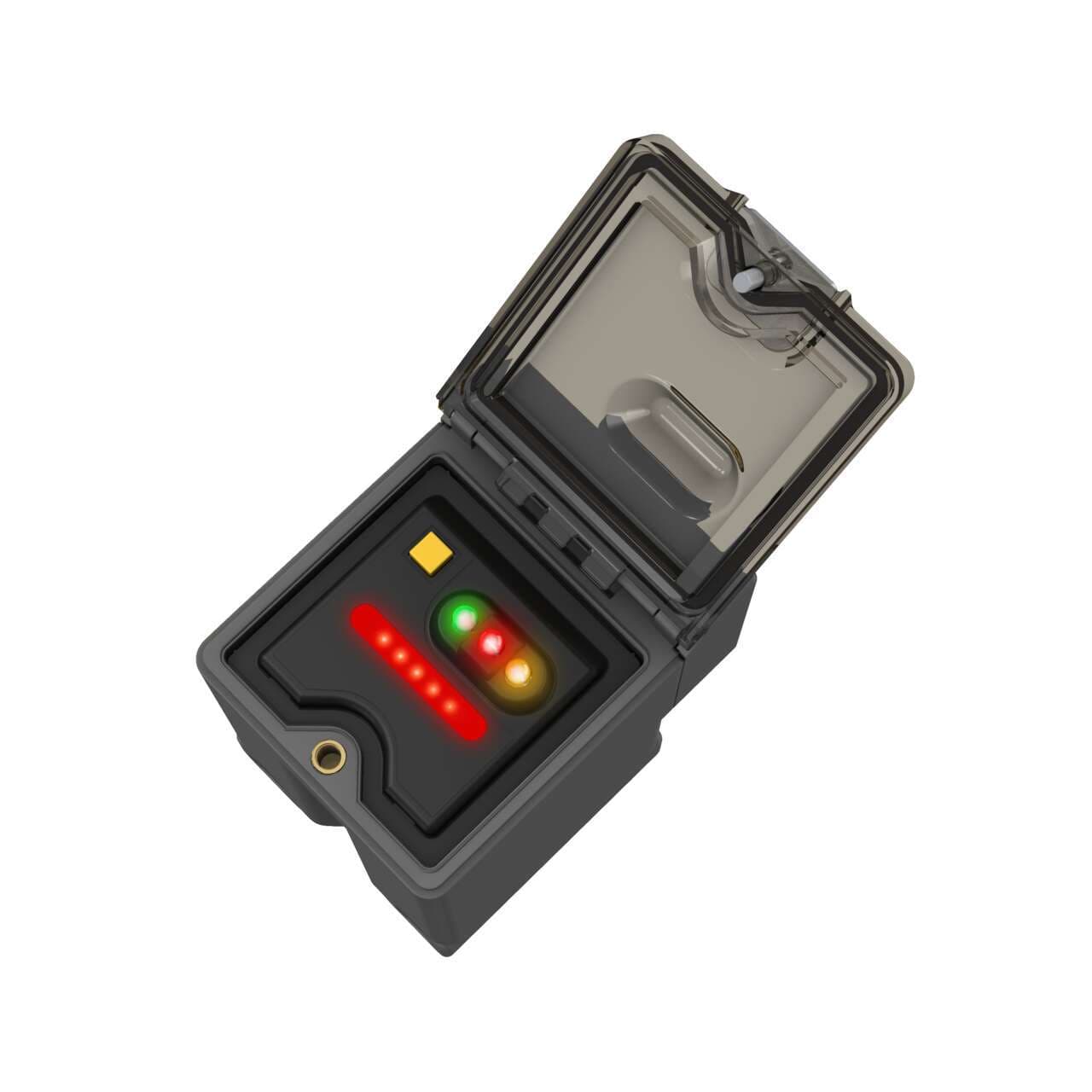

Banner Q45UR3LIU64C W/30 Q45UR Analog Series:Controller; Range: 50-250 mm; Input: 15-24 V dc; Output: Selectable 0-10 V dc or 4-20 mA Sourcing; 9 m (30 ft) Cable
Banner

Part#:Q45UR3LIU64C W/30

Manufacturer:Banner

Alt. Part#:57992

Product Lifecycle:Active

Get a quick Quote!

Q45UR Analog Series:Controller; Range: 50-250 mm; Input: 15-24 V dc; Output: Selectable 0-10 V dc or 4-20 mA Sourcing; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UR3LIU64C W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    835.970056 g
  • Country Of Origin
    US
  • SSI
    No
  • Feature: Timing (Hold/Delay)
    No
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • RS-422
    No
  • RS-485
    No
  • PROFINET
    No
  • Application: Ultrasonic
    Yes
  • IO Link
    No
  • RS-232
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Clear Object Detection
    Yes
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Ultrasonic Frequency (kHz)
    400
  • Minimum Window Size (mm)
    1
  • Minimum Response Time (ms)
    10
  • Max Op. Relative Humidity Non-Condensing (%)
    85
  • Analog Linearity (mm)
    1% of full scale
  • Warm-up Time (minutes)
    15
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Analog Current Output Rating
    1 to 500 Ω impedance
  • IP Rating
    IP67
  • Output Protection
    Protected against continuous overload and short circuit
  • Analog Voltage Output Rating
    10mA Max
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Number of Pins
    5
  • Adjustments
    Teach Button; DIP Switches
  • Temperature Effect (mm/°C)
    0.03% to 0.05% of sensing distance/°C
  • Minimum Sensing Distance (mm)
    50
  • Power Supply
    15-24 V dc
  • Max Sensing Distance (mm)
    250
  • Analog Resolution/Discrete Repeatability
    +/- 0.2% of measured distance at 320 ms response speed, 0.4% of measured distance at 10 ms response speed
  • Quick Disconnect Type
    No QD
  • Analog Output Configuration
    0-10 V dc or 4-20 mA
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Input/Output
    Analog
  • Primary Housing Material
    Thermoplastic Polyester
  • Device Type
    Controller
  • Sensing Beam
    Ultrasonic
  • Sensing Mode (General)
    Proximity
  • PC Configurable
    No
  • Max Measurement Range
    >100 mm - <=500 mm
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Time of Flight
  • Power
    DC
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45UR3LIU64C W/30 Description

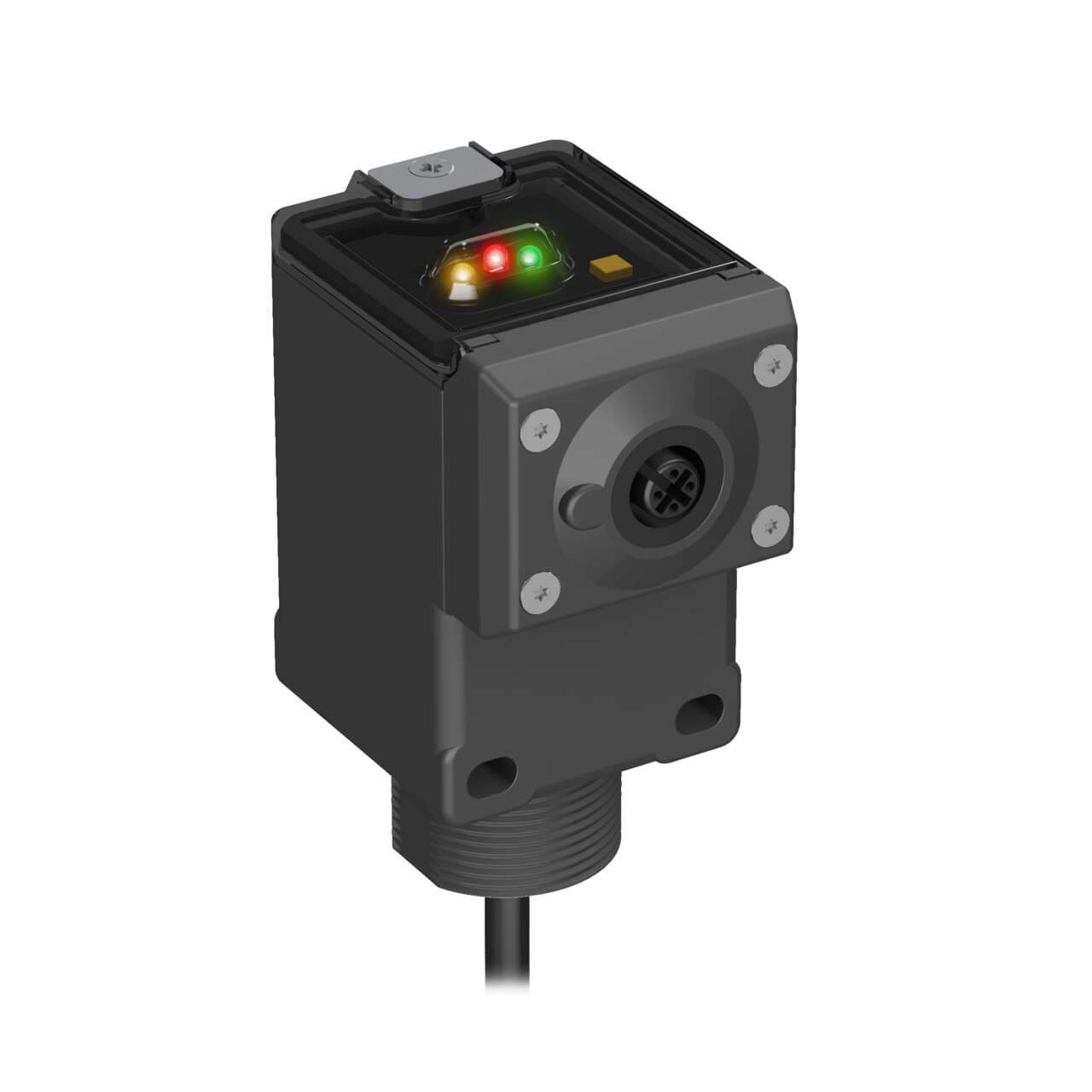

Banner Engineering Q45UR3LIU64C W/30 is a control unit that functions as a remote transducer controller. It features an M30 threaded mount for installation and operates within an ambient air temperature range of -25 to +70°C. This unit is designed with a time-of-flight system TEACH mode and comes pre-wired with a 30ft / 9m cable terminated with bare end flying leads. It belongs to the Q45UR series and offers a degree of protection rated at IP67 NEMA 6P. The supply voltage required for operation is between 15Vdc and 24Vdc. Its rectangular shape is constructed from thermoplastic polyester housing, ensuring durability. The Q45UR3LIU64C W/30 operates at a frequency of 400kHz and has a sensing distance range of 50 to 250mm. It includes protection functions against overload and short-circuit, along with 1 x analog output (0-10Vdc / 4-20mA) for connectivity.

Related documents Q45UR3LIU64C W/30 Specs

Q45UR3LIU64C W/30 59323.pdf
