Q45UR3BA63CQ6 Banner Ultrasonic Sensors

Banner Q45UR3BA63CQ6 Q45UR Discrete Series: Controller; Range: 50-250 mm; Input: 12 - 24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Banner

Part#:Q45UR3BA63CQ6

Manufacturer:Banner

Alt. Part#:53011

Product Lifecycle:Active

Get a quick Quote!

Q45UR Discrete Series: Controller; Range: 50-250 mm; Input: 12 - 24 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Ultrasonic Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45UR3BA63CQ6 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    299.37072 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Common Ethernet Protocol
    No
  • Profibus
    No
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • RS-422
    No
  • RS-232
    No
  • IO Link
    No
  • PROFINET
    No
  • Application: Ultrasonic
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Clear Object Detection
    Yes
  • Ultrasonic Frequency (kHz)
    400
  • Max Off-state Leakage Current (µA)
    25
  • Minimum Response Time (ms)
    40
  • Feature: Remote Teach
    Yes
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    100 mA
  • Discrete Output Hysteresis (mm)
    0.5
  • Minimum Window Size (mm)
    1
  • Warm-up Time (minutes)
    15
  • Max Op. Relative Humidity Non-Condensing (%)
    85
  • Min Operating Temperature (°C)
    -25
  • Max Operating Temperature (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Output Protection
    Protected against continuous overload and short circuit
  • Max Discrete (Switched) Output (mA)
    150
  • IP Rating
    IP67
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Mechanical Shock
    IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
  • Number of Pins
    5
  • Vibration
    MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
  • Temperature Effect (mm/°C)
    0.03% to 0.05% of sensing distance/°C
  • Max Sensing Distance (mm)
    250
  • Adjustments
    Teach Button; DIP Switches
  • Connection
    Integral QD
  • Minimum Sensing Distance (mm)
    50
  • Indicator
    LED(s)
  • Input/Output
    Discrete
  • Power Supply
    12-24 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Analog Resolution/Discrete Repeatability
    +/- 0.2% of measured distance
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Device Type
    Controller
  • Sensing Beam
    Ultrasonic
  • Primary Housing Material
    Thermoplastic Polyester
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Power
    DC
  • Max Measurement Range
    >100 mm - <=500 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q45UR3BA63CQ6 Description

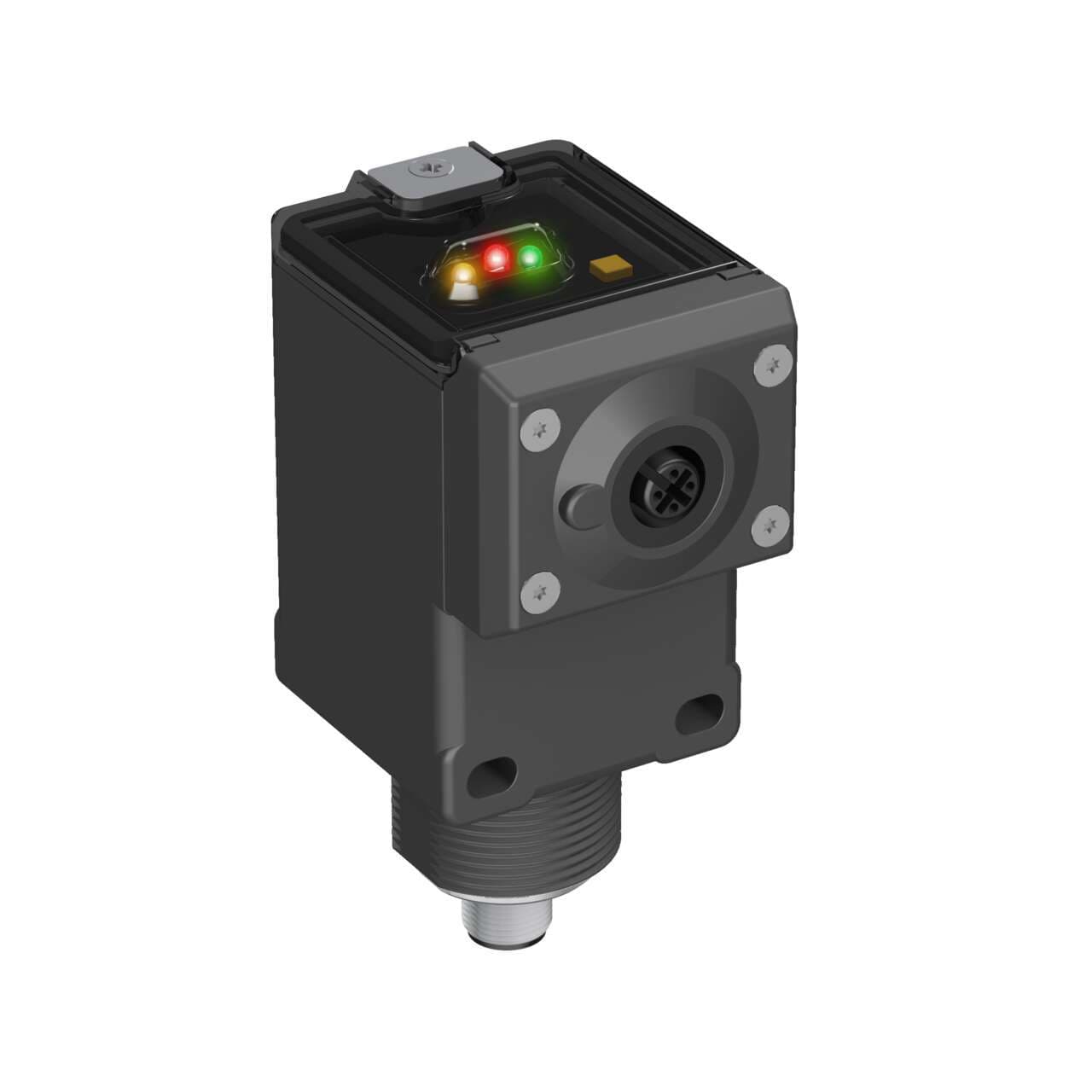

Banner Engineering Q45UR3BA63CQ6 is a control unit designed for remote transducer control applications. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This unit is based on a time-of-flight system with TEACH mode for enhanced functionality. It comes pre-equipped with a 5-pin Euro-style M12 connector for straightforward connectivity. As part of the Q45UR series, it boasts an IP67 NEMA 6P degree of protection, ensuring durability in various environments. The supply voltage requirement is 12Vdc-24Vdc, making it compatible with a wide range of DC power supplies. Its rectangular shape is constructed from thermoplastic polyester housing, offering robustness. With a 400kHz frequency, the sensing distance ranges from 50 to 250mm. It includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against overload and short-circuit, ensuring reliable operation.

Related documents Q45UR3BA63CQ6 Specs

Q45UR3BA63CQ6 59321.pdf
