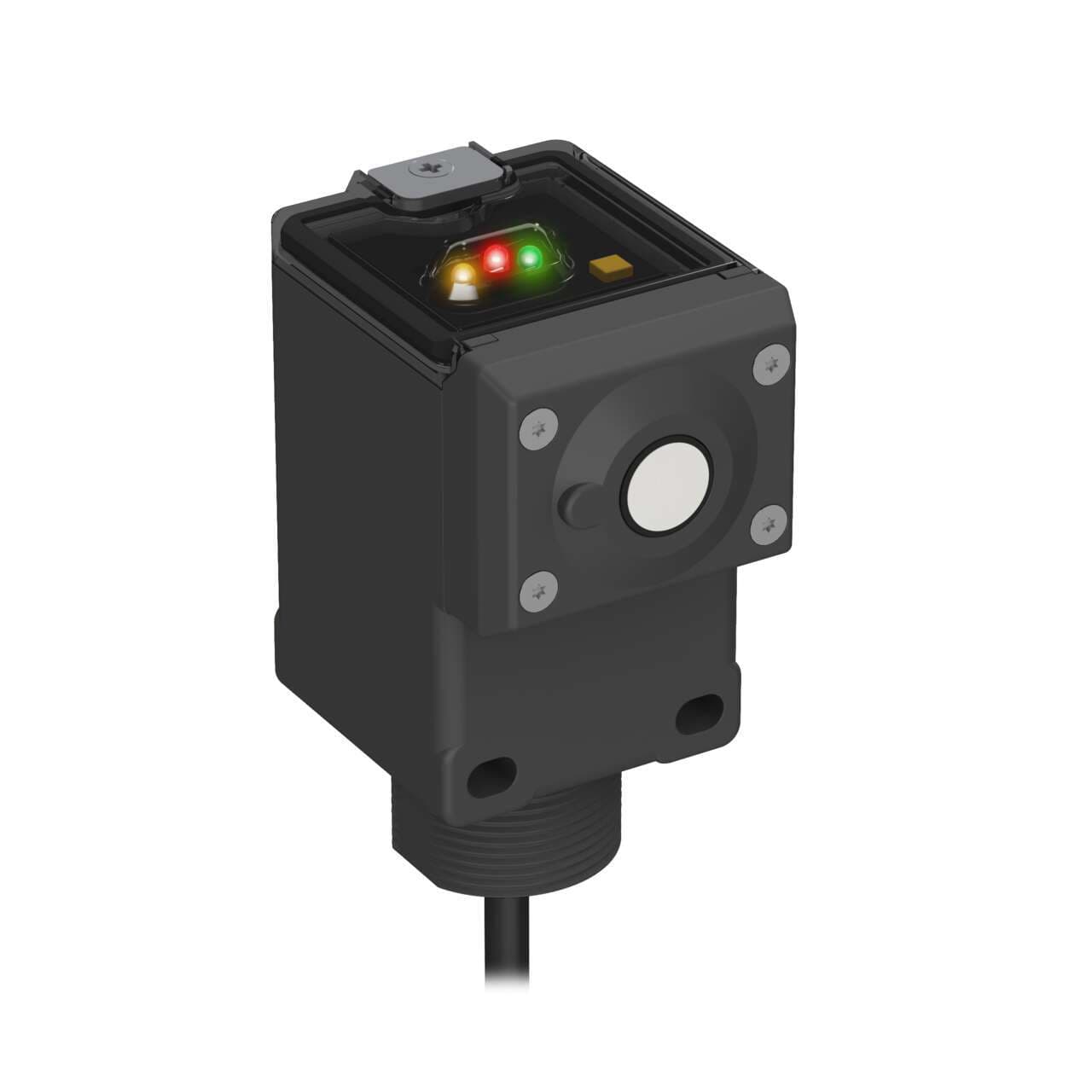

Q45ULIU64ACR Banner Ultrasonic Sensors

Product Details

• Weight
  344.72992 g
• Country Of Origin
  US
• Wireless
  No
• 1-wire Serial Interface
  No
• Profibus
  No
• RS-485
  No
• SSI
  No
• RS-422
  No
• PROFINET
  No
• RS-232
  No
• IO Link
  No
• Common Ethernet Protocol
  No
• Feature: Chemical Resistant
  No
• Feature: Clear Object Detection
  Yes
• Feature: Timing (Hold/Delay)
  No
• Application: Ultrasonic
  Yes
• Supply Protection Circuitry
  Protected against reverse polarity and transient overvoltages
• Feature: Remote Teach
  Yes
• Power/Current Consumption (exclusive of load)
  100 mA
• Minimum Response Time (ms)
  40
Ultrasonic Frequency (kHz)
230
Minimum Window Size (mm)
10
Analog Linearity (mm)
1% of full scale
Warm-up Time (minutes)
15
Max Op. Relative Humidity Non-Condensing (%)
100
Max Operating Temperature (°C)
70
NEMA Rating
NEMA 6P
Min Operating Temperature (°C)
-25
IP Rating
IP67
Output Protection
Protected against false pulse on power-up and continuous overload or short-circuit of outputs
Analog Voltage Output Rating
10mA Max
Analog Current Output Rating
1 to 500 Ω impedance
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Number of Pins
5
Temperature Effect (mm/°C)
0.05% of sensing distance/°C
Adjustments
Teach Button; DIP Switches
Power Supply
15-24 V dc
Minimum Sensing Distance (mm)
100
Indicator
LED(s)
Quick Disconnect Type
No QD
Analog Resolution/Discrete Repeatability
+/- 0.1% of measured distance (+/- 0.25 min)
Max Sensing Distance (mm)
1400
Connection
Flying Leads
Analog Output Configuration
0-10 V dc or 4-20 mA
Input/Output
Analog
Primary Housing Material
PBT
Housing Style
Rectangular
Max Measurement Range
>1 m - <=20 m
Sensing Mode (Detailed)
Time of Flight
PC Configurable
No
Device Type
Sensor
Sensing Mode (General)
Proximity
Cable Length (m)
2
Power
DC
Sensing Beam
Ultrasonic
Functions

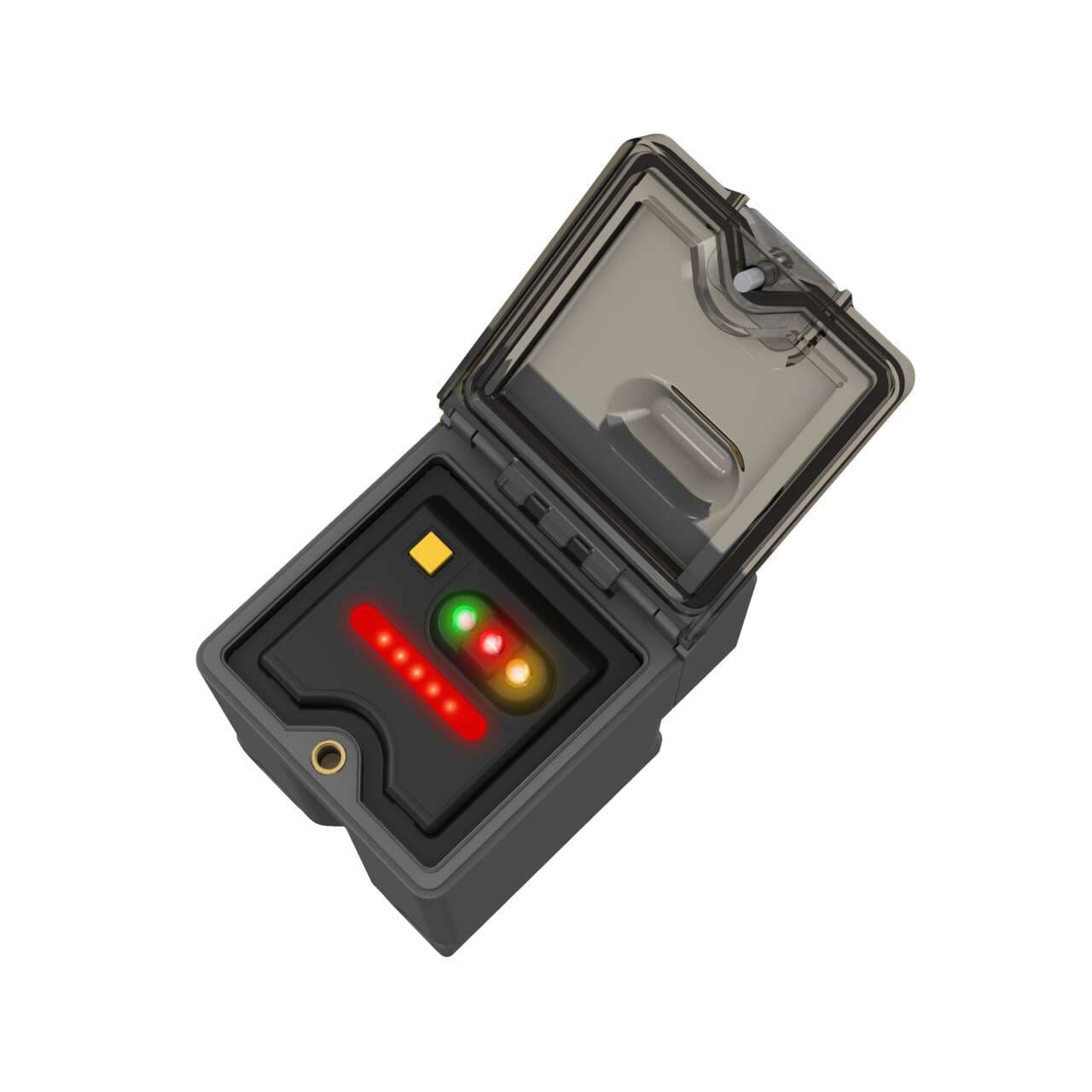

Versatile ultrasonic distance sensor/transmitter green LED (power ON) amber LED (output state) red LED (signal) TEACH mode
Mounting mode
Threaded mount
Analog outputs
1 x analog output (0-10Vdc / 4-20mA)
Product series / family name
U-GAGE series
Sensing distance
10cm...1.4m
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Material
thermoplastic housing
Order code / Manufacturer SKU
47551
Main function
Sensor (Distance)
Design
time-of-flight system
Degree of protection
IP67 NEMA 6P
Ambient air temperature for operation
-25...+70 °C
Primary brand
Banner Engineering
Supply voltage (DC)
15Vdc-24Vdc
Thread size
M30
Compliant with standard(s)
cCSAus CE
Sub-range name
Q45U series
Shape
Rectangular
Protection functions
Overload Short-circuit
Emission frequency
239kHz
