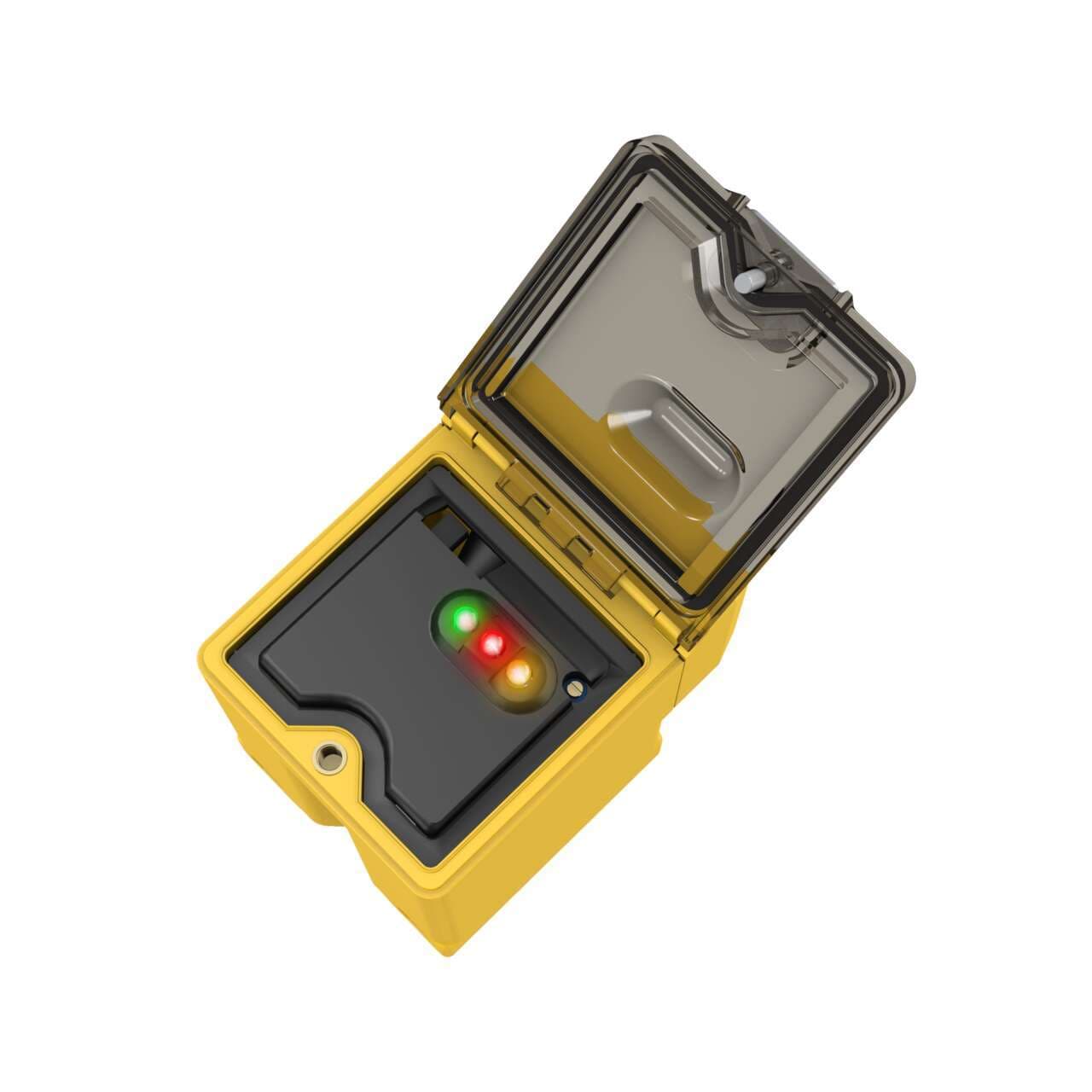

Q45AD9DLQ Banner Proximity Sensors

Q45AD9DLQ on Powermatic Associates
Banner
  • Q45AD9DLQ
  • Q45AD9DLQ

Part#:Q45AD9DLQ

Alt. Part#:37628

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 NAMUR: Diffuse; Range: 1 m; Input: 5-15 V dc; Output: NAMUR; 4-pin M12 Integral QD

Product Details

  • Weight
    263.08336 g
  • Country Of Origin
    US
  • IO Link
    No
  • Input/Output
    Discrete
  • Special Feature: Remote Teach
    No
  • Special Feature: Water Detection
    No
  • Barrel Diameter (mm)
    30
  • Max Sensing Distance (mm)
    1000
  • Operation
    Light/Dark Operate
  • Number of Pins
    4
  • Opposed Mode Emitter/Receiver
    N/A
  • Sensing Beam
    Infrared LED
  • Min Op. Temp. (°C)
    -40
  • Lens Material
    Acrylic
  • DeviceNet
    No
  • Housing Style
    Rectangular
  • Special Feature: Intrinsically Safe
    Yes
  • Repeatability (µs)
    N/A
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (General)
    Proximity
  • Outputs
    Constant Current
  • Output response time (ms)
    5
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Diffuse
  • Max Op. Temp. (°C)
    70
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Primary Housing Material
    Thermoplastic
  • Connection
    Integral QD
  • Adjustments
    Potentiometer
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    Yes
  • Power Supply/Supply Voltage
    5-15 V dc
  • Delay at Power-up (ms)
    N/A
  • Indicator
    LEDs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45AD9DLQ on Powermatic Associates is $174.00. Order now.

About the product

Banner Engineering Q45AD9DLQ is an intrinsically-safe photo-electric sensor designed for a variety of applications requiring precise detection. This sensor features a diffuse mode with potentiometer adjustment and is mounted using an M30 threaded mount. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability in challenging environments. The Q45AD9DLQ, part of the Q45AD9 series, offers a sensing distance of up to 1 meter and utilizes infrared light with a wavelength of 880 nm for detection. It supports both Light-ON and Dark-ON operating modes for increased application flexibility. The sensor is equipped with a 4-pin Euro-style M12 connector for easy installation and has a degree of protection rated at IP67 NEMA 6P, making it resistant to dust and water ingress. It requires a supply voltage of 5Vdc to 15Vdc, with 12Vdc nominal, and features a single digital output (NAMUR) with a quick response time of 5ms or 0.005 seconds.
