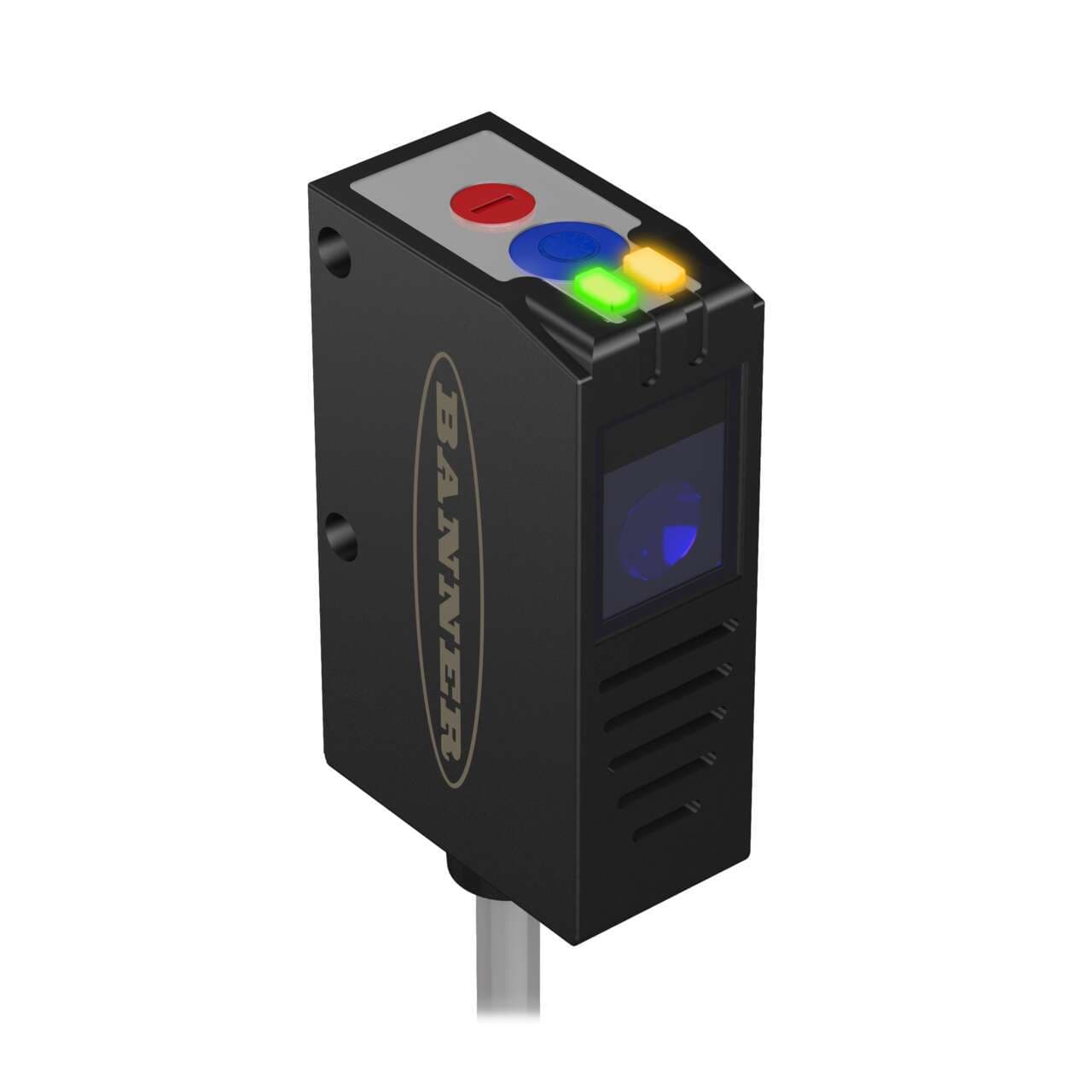

Q26PLUMQ5 Banner Optical Sensors

Name: Q26PLUMQ5
Brand: Banner

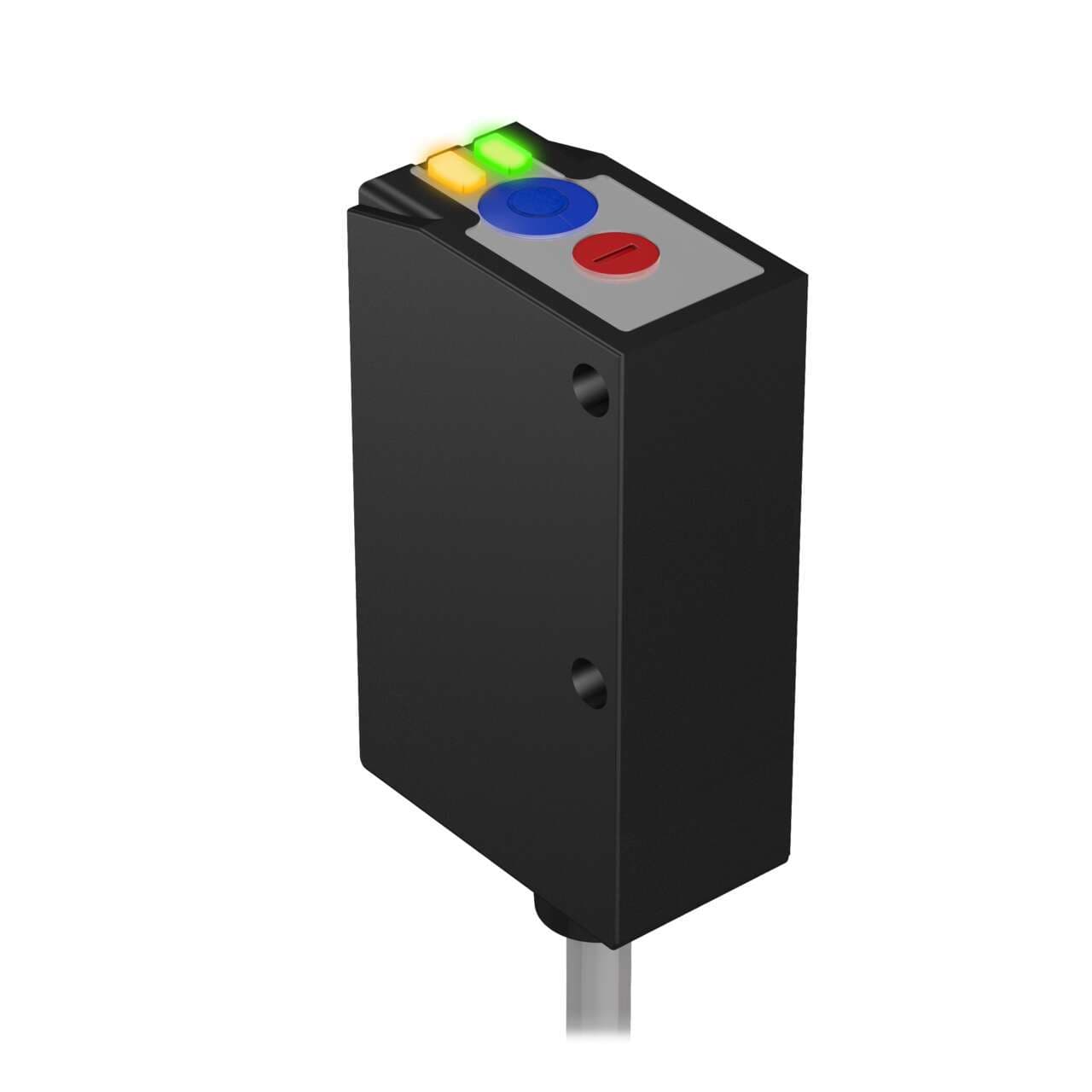

Banner Q26PLUMQ5 Q26 Series Luminescence Sensor; Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67; PNP Outputs; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

Part#:Q26PLUMQ5

Manufacturer:Banner

Alt. Part#:95143

Product Lifecycle:Active

Get a quick Quote!

Q26 Series Luminescence Sensor; Range 10-30 mm; Supply Voltage 12-30 V dc; Rating IP67; PNP Outputs; 150 mm (6 in) 4-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q26PLUMQ5 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
45.3592 g
Country Of Origin
HU
Application: Luminescence
Yes
Application: Color
No
Application: Registration Mark
No
IO Link
No
Feature: Timing (Hold/Delay)
No
Beam Spot Size
1 mm at 12 mm
Max Op. Temperature (°C)
55
Min Op. Temperature (°C)
-10
Special Feature: Analog Output
No
NEMA Rating
N/A
IP Rating
IP67
Lens Material
Polycarbonate
Repeatability (µs)
N/A
Indicator
LEDs
Output response time (ms)
0.25
Operation
Light/Dark Operate
Number of Pins
4
LED Orientation
Parallel to sensor length

Power Supply/Supply Voltage

12-30 V dc

Max Sensing Range (mm)

Sensing Beam Wavelength

375

Quick Disconnect Type

M12 (Euro)

Adjustments

Teach Button

Special Feature: Remote Teach

Yes

Connection

Pigtail QD

Outputs

PNP

Sensing Beam

Black Ultraviolet LED

Primary Housing Material

Thermoplastic

Cable Length (m)

0.15

Power

Shape

Rectangular

Ambient air temperature for operation

-10...+55 °C

Product series / family name

Q series

Wavelength

375 nm

Sensing distance

10...30mm

Connection type

Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector

Order code / Manufacturer SKU

95143

Primary brand

Banner Engineering

Supply voltage (DC)

12Vdc-30Vdc (24Vdc nom.)

Light Color

Ultraviolet (UV)

Response time

0.25ms / 0.00025 s

Compliant with standard(s)

cULus CE

Main function

Sensor (Luminescence)

Functions

Compact luminescence sensor green LED (power ON) yellow LED (output state) TEACH mode

Operating mode

Light-ON Dark-ON

Sub-range name

Q26 Luminescence

Digital outputs

1 x digital output (PNP transistor)

Material

thermoplastic housing Polycarbonate lns. PVC (connector)

Degree of protection

IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q26PLUMQ5 Description

Banner Engineering Q26PLUMQ5 is a compact luminescence sensor within the Q26 Luminescence series, designed for detecting materials that respond to ultraviolet (UV) light. This sensor operates within an ambient air temperature range of -10 to +55 °C and features a TEACH mode for easy setup. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector for quick installation. The Q26PLUMQ5 is housed in a thermoplastic with a polycarbonate (PC) lens and a PVC connector, ensuring durability. It offers a sensing distance of 10 to 30mm and operates with a light color of ultraviolet (UV) at a wavelength of 375 nm. This sensor supports both Light-ON and Dark-ON operating modes, has a supply voltage range of 12Vdc to 30Vdc (24Vdc nominal), and is equipped with one digital output (PNP transistor). The response time is notably quick at 0.25ms (0.00025 seconds), and it boasts a degree of protection rated at IP67, making it suitable for various industrial applications.
