Q26PXLPQ7 Banner Optical Sensors

Name: Q26PXLPQ7
Brand: Banner
Price: 222 USD
Availability: BackOrder

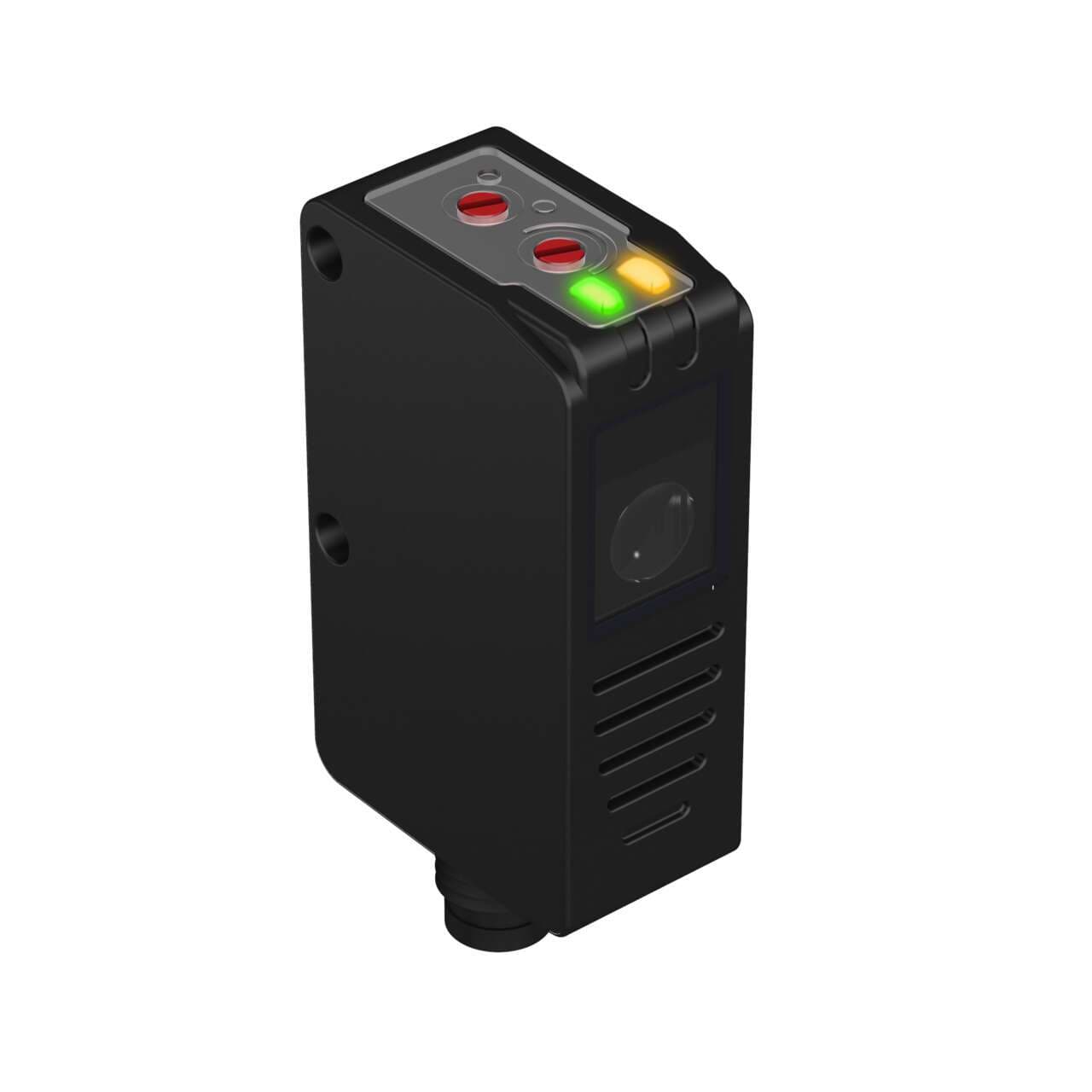

Banner Q26PXLPQ7 Q26 Series Clear Object Sensor; Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67; PNP Outputs; Coaxial Optics Visible Red LED; 4-pin M8 Integral QD

Part#:Q26PXLPQ7

Manufacturer:Banner

Alt. Part#:17129

Product Lifecycle:Active

Get a quick Quote!

Q26 Series Clear Object Sensor; Range 0-0.8 m; Supply Voltage 12-30 V dc; Rating IP67; PNP Outputs; Coaxial Optics Visible Red LED; 4-pin M8 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q26PXLPQ7 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
45.3592 g
Country Of Origin
HU
DeviceNet
No
IO Link
No
Feature: Health/ Marginal Signal Output
Yes
Feature: Chemical Resistant
No
Opposed Mode Emitter/Receiver
N/A
Feature: Audible
No
Feature: Hazardous Area
No
Indicator
LEDs
Barrel Diameter (mm)
N/A
Adjustments
Potentiometer
Feature: Encapsulated
No
Feature: Timing (Hold/Delay)
No
Feature: Clear Object Detection
Yes
Lens Material
Glass
NEMA Rating
N/A
IP Rating
IP67
Max Op. Relative Humidity [%]
90% @ 50°C
Number of Pins
4

Repeatability (µs)

Delay at Power-up (ms)

N/A

Sensing Beam Wavelength

660

Special Feature: Water Detection

Special Feature: Remote Teach

Output response time (ms)

0.25

Special Feature: Intrinsically Safe

Max Op. Temp. (°C)

Operation

Light/Dark Operate

Min Op. Temp. (°C)

-10

Quick Disconnect Type

M8 (Pico)

Power Supply/Supply Voltage

12-30 V dc

Connection

Integral QD

Sensing Mode (Detailed)

Polarized (Coaxial)

Housing Style

Rectangular

Primary Housing Material

Thermoplastic

Sensing Beam

Visible Red LED

Input/Output

Discrete

Sensing Mode (General)

Retroreflective

Max Sensing Distance (mm)

800

Power

Outputs

PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q26PXLPQ7 Description

Banner Engineering Q26PXLPQ7 is a polarized (coaxial) photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -10 to +55 °C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Pico-style M8 connector for easy installation. As part of the Q26 series, it boasts an IP67 degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in a rectangular, thermoplastic casing with a glass lens. It offers a sensing distance of 0 to 800mm and utilizes visible red light with a wavelength of 660 nm. The Q26PXLPQ7 supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor) with a rapid response time of 0.25ms / 0.00025 s.
