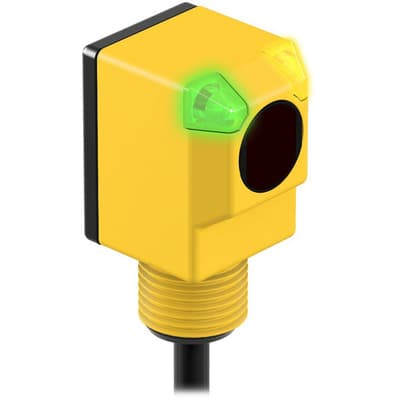

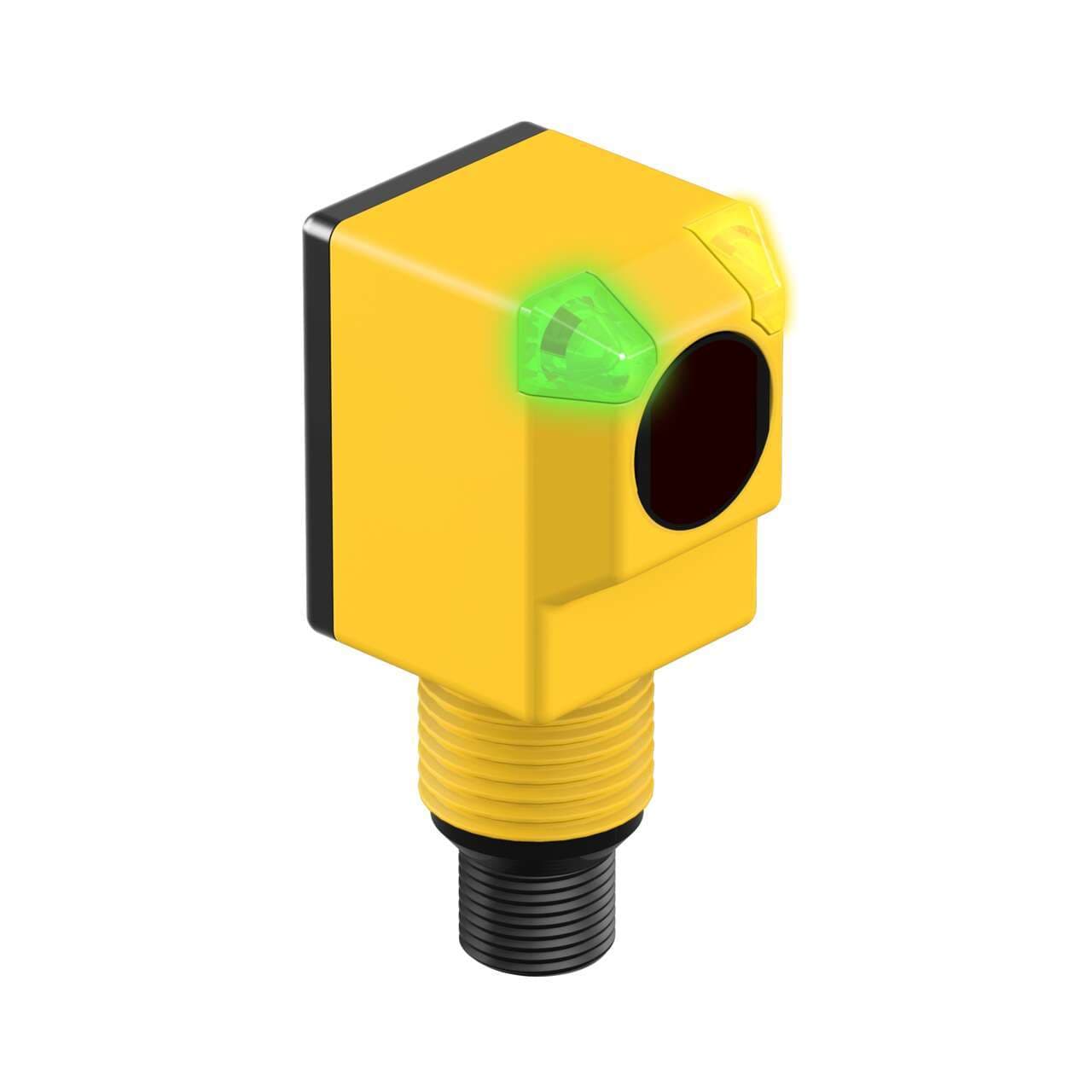

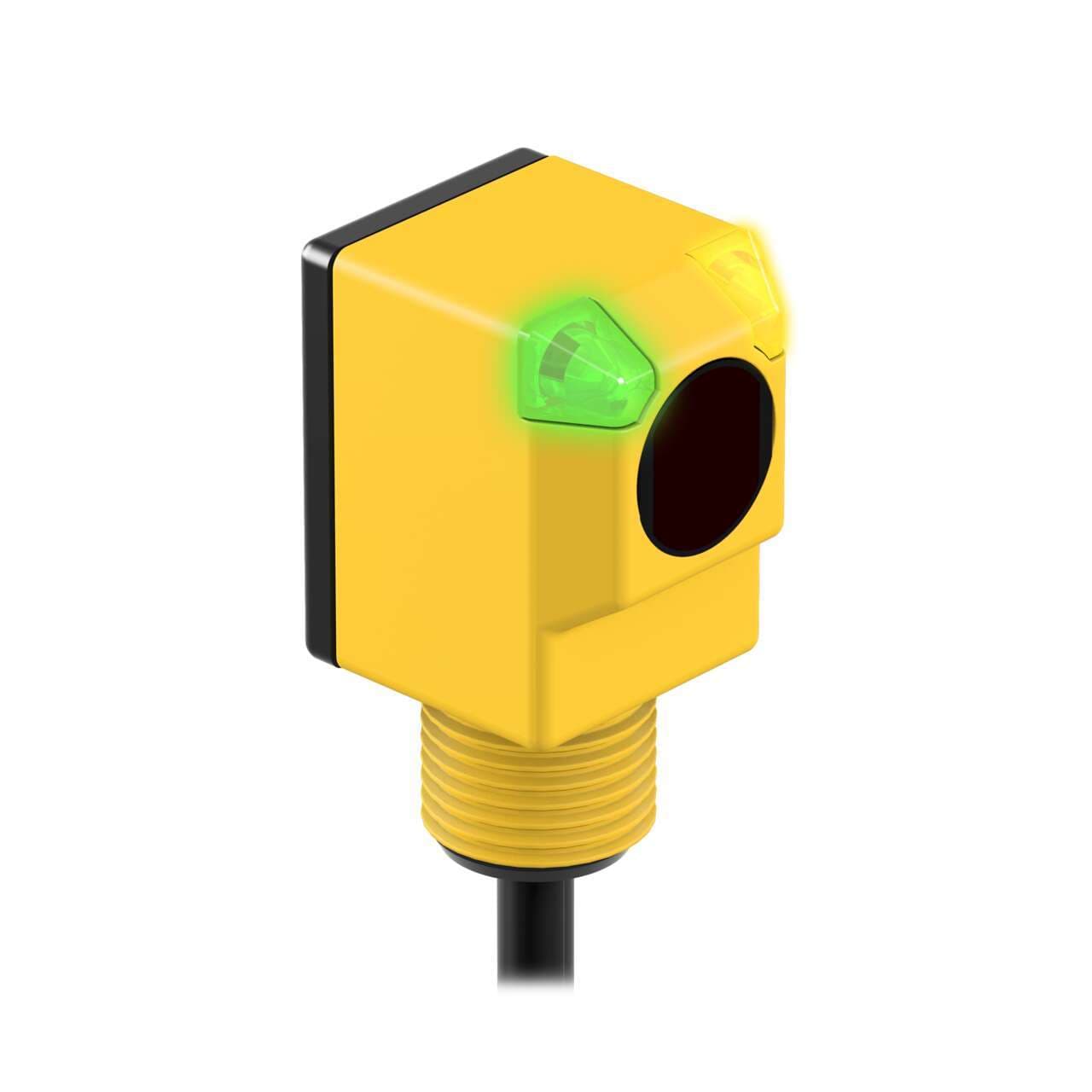

Q256EQ Banner Proximity Sensors

Product Details

• Weight
  55.791816 g
• Country Of Origin
  US
• Main function
  Sensor (Photo-electric)
• Light Color
  Infrared (IR)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Functions
  Photo-electric emitter green LED (power ON) amber LED (output state)
• Shape
  Rectangular
• Ambient air temperature for operation
  -40...+70 °C
• Sub-range name
  Q25 AC series
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Degree of protection
  IP67 NEMA 6P
• Material
  thermoplastic housing Polycarbonate lns.
• Order code / Manufacturer SKU
  31935
• Product series / family name
  EZ-BEAM series
• Wavelength
  950 nm
• Response time
  3ms / 0.003 s
• Primary brand
  Banner Engineering
• Design
  through-beam system / opposed mode
• Thread size
  M18
• Compliant with standard(s)
  cULus cCSAus CE
Sensing Mode (Detailed)
Emitter
Special Feature: Remote Teach
No
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Hazardous Area
No
Sensing Mode (General)
Opposed
Quick Disconnect Type
No QD
Special Feature: Water Detection
No
Adjustments
N/A
Feature: Chemical Resistant
Yes
Housing Style
Rectangular
Operation
N/A
Lens Material
Polycarbonate
Feature: Ecolab Certified
Yes
Outputs
N/A
Special Feature: Intrinsically Safe
No
Indicator
LEDs
Feature: Health/ Marginal Signal Output
Yes
Primary Housing Material
Thermoplastic
Power Supply/Supply Voltage
10-30 V dc
Delay at Power-up (ms)
100
Barrel Diameter (mm)
18
Feature: Encapsulated
Yes
Power
DC
Connection
Cable
Repeatability (µs)
375
Feature: Timing (Hold/Delay)
No
DeviceNet
No
Min Op. Temp. (°C)
-40
Cable Length (m)
2
Number of Pins
2
Feature: Washdown Rated
Yes
Sensing Beam
Infrared LED
Output response time (ms)
3 ON/1.5 OFF
NEMA Rating
NEMA 6P
Feature: Audible
No
Max Sensing Distance (mm)
20000
Max Op. Temp. (°C)
70
IP Rating
IP69
Opposed Mode Emitter/Receiver
Emitter
IO Link
No
