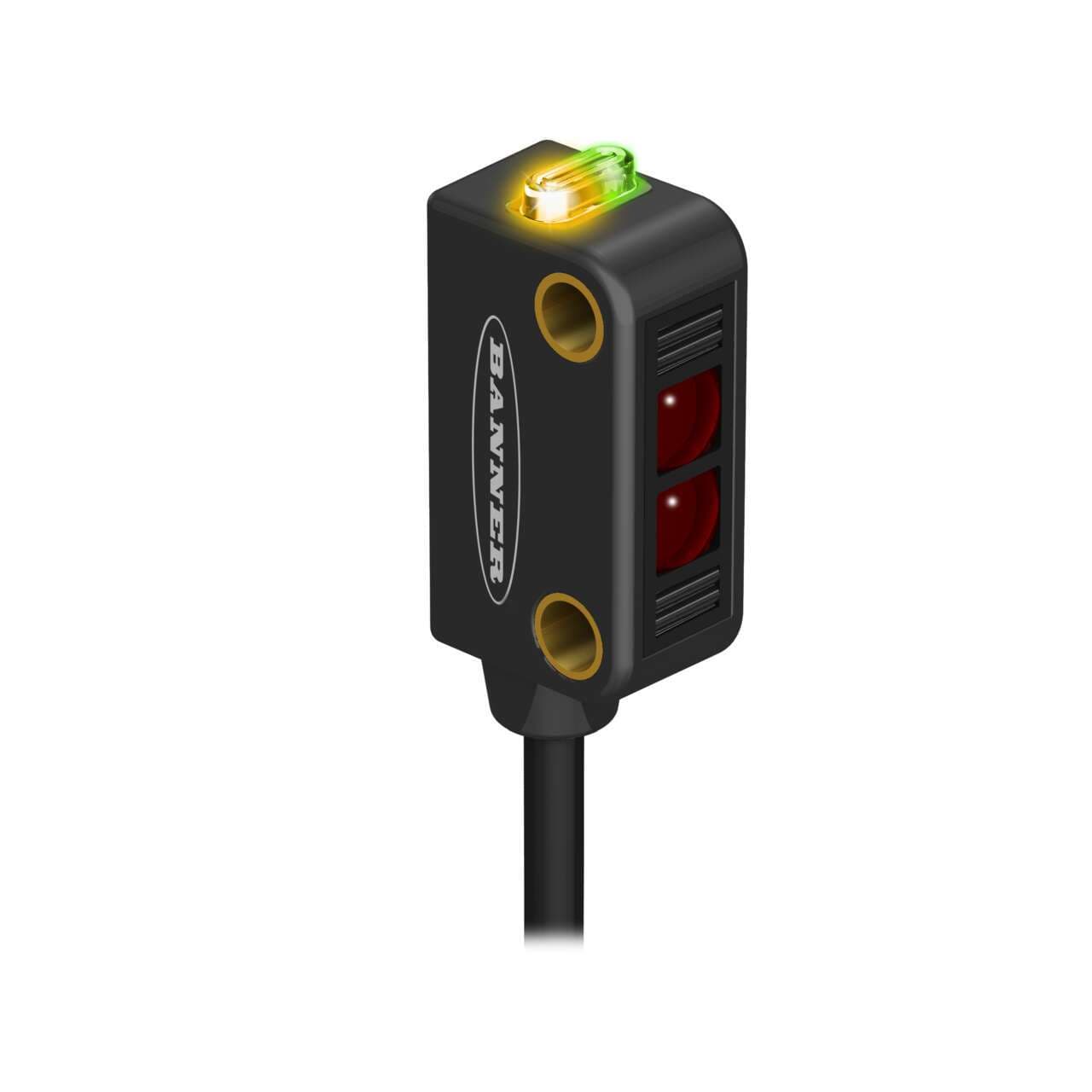

Q12AB6LVQ5 Banner Proximity Sensors
Part#:Q12AB6LVQ5
Alt. Part#:74147
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Retroreflective; Range: 1.5 m; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Operating mode Light-ON
- Compliant with standard(s) cURus CE
- Product series / family name WORLD-BEAM series
- Light Color Visible red
- Sensing distance 1.5m
- Ambient air temperature for operation -20...+55 °C
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) yellow LED (signal)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Response time 0.7ms / 0.0007 s
- Order code / Manufacturer SKU 74147
- Main function Sensor (Photo-electric)
- Wavelength 640 nm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Sub-range name Q12 series
- Design retro-reflective mode
- Shape Rectangular
- Degree of protection IP67
- Material thermoplastic housing Polycarbonate lns.
- Output response time (ms) 0.7
- Lens Material Polycarbonate
- IO Link No
- Sensing Mode (Detailed) Non-Polarized
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator LEDs
- Input/Output Discrete
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Connection Pigtail QD
- Number of Pins 4
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Operation Light Operate
- IP Rating IP67
- Feature: Encapsulated No
- Power DC
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 640
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 1500
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Cable Length (m) 0.15
- Max Op. Temp. (°C) 55
- Repeatability (µs) 175
- Opposed Mode Emitter/Receiver N/A
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) N/A
- Sensing Mode (General) Retroreflective
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 120
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AB6LVQ5 on Powermatic Associates is $143.00. Order now.
About the product
Banner Engineering Q12AB6LVQ5 is a photo-electric sensor designed for retro-reflective mode operation with a sensing distance of 1.5m. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It belongs to the Q12 series and offers a degree of protection rated at IP67, making it suitable for various industrial environments. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape and emits a visible red light with a wavelength of 640 nm. The operating mode is Light-ON, and it includes 1 x digital output (PNP/NPN transistor) with a response time of 0.7ms / 0.0007 s.
