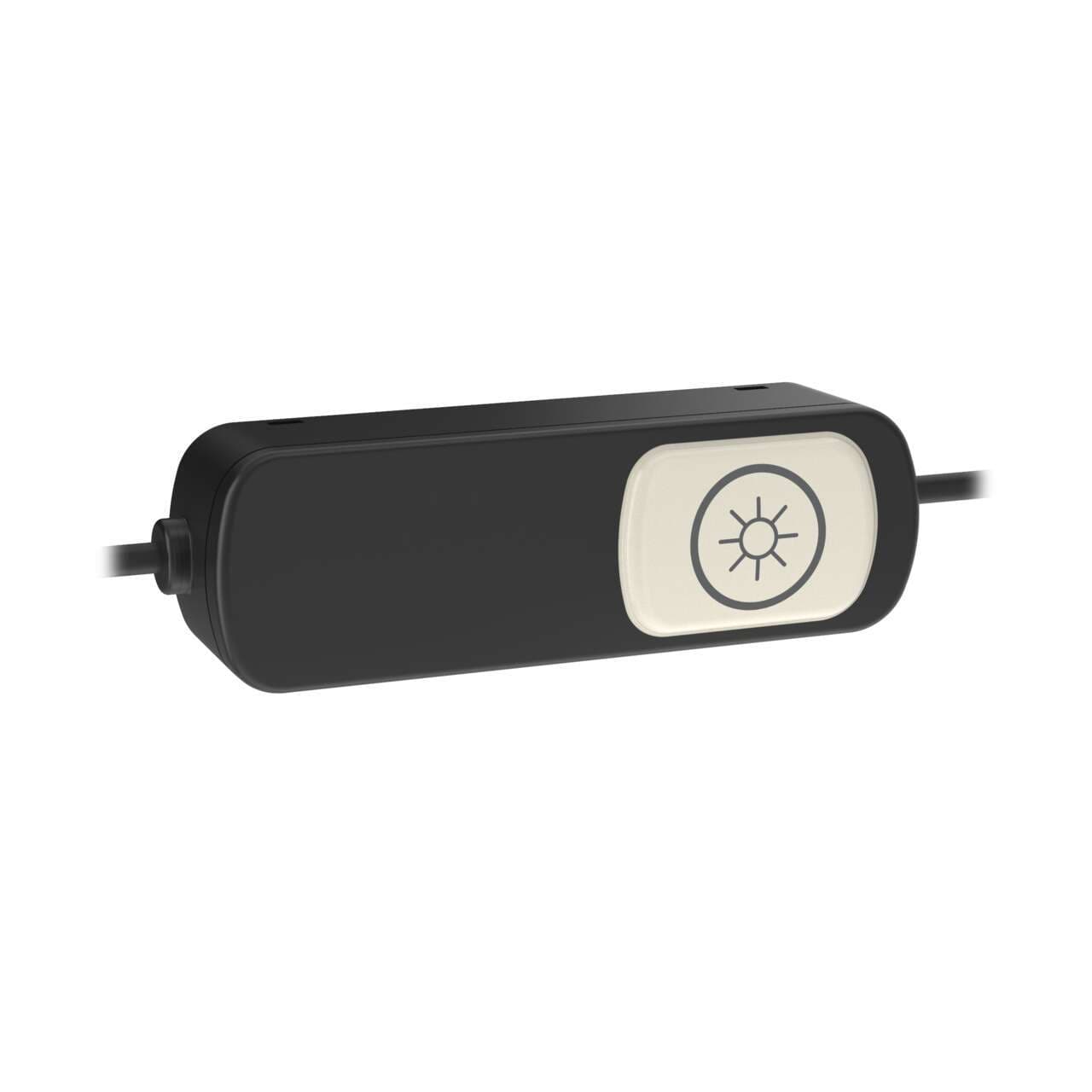

PTL110S-FF100T-QPS150 Banner Pick-to-Light Sensors

Name: PTL110S-FF100T-QPS150
Brand: Banner
Price: 266 USD
Availability: BackOrder

PTL110S-FF100T-QPS150 on Powermatic Associates

Part#:PTL110S-FF100T-QPS150

Manufacturer:Banner

Alt. Part#:807526

Product Lifecycle:Active

Get a quick Quote!

PTL110 node; Voltage: 10-30 V dc; Environmental Rating: IP54; 100 mm Fixed Field; Touch Sensor; 150 mm (6 in) PVC Shielded M12 Pigtail QDs

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PTL110S-FF100T-QPS150 Banner price in the box on the right side or send a quick quote.

Product Details

Weight
90.7184 g
Country Of Origin
US
Job Light
Programmable
Pro-Editor Compatible (Discrete)
No
Feature: Chemical Resistant
No
Wireless
No
Modbus RTU
Yes
IO Link
No
Multi-Color Device
Single Color On
Feature: Audible
No
Feature: Hazardous Area
No
PICK-IQ (Modbus RTU)
Yes
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Primary Window Material
Polycarbonate Diffused
Primary Housing Color
Black
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP54
Physical Dimensions (LxWxH or DxH mm)
110.0 x 35.0 x 33.1
Number of Beams
1

Maximum Sensing Distance (mm)

100

Supply Voltage

10-30 V dc

Output Type

Communication Protocol

Number of Input Pins/Conductors

Pick-to-Light Function

Programmable

Mis-Pick Light

Programmable

Acknowledge (Sense) Light

Programmable

Quick Disconnect Type

M12 (Euro)

Max Current Color (mA)

155

Color Technology

RGB Configurable

Animation Option 1

Modbus Controlled

Number of Colors / Segments

Color Option 1

RGB

Product Size (mm)

110

Housing Style

Flat Mount - Flat Window

Actuation

Yes

Color Input Control

Communication Protocol

Activation Function

Capacitive Touch and Optical

Power Source

Mounting Thread

No Thread

Indication

Yes

Primary Housing Material

ABS

Sensing Mode (General)

Fixed Field

Power

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PTL110S-FF100T-QPS150 Description

Banner Engineering PTL110S-FF100T-QPS150 is a scalable versatile capacitive touch-sensitive pick-to-light node designed for surface or pipe mounting. It operates within an ambient air temperature range of -40°C to +50°C and features fixed field sensing with PICK IQ serial communication, compatible with RS-485 / Modbus RTU, and LED illumination. This part is pre-wired with two 6" / 15cm PVC shielded pigtails terminated with 5-pin M12 Euro-style QD connectors. It offers an IP54 degree of protection and requires a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The rectangular-shaped body is made from an ABS housing with a polycarbonate indicator and an acrylic lens, presented in black housing with a gray window. It has a 100mm sensing range and supports both momentary or latched operating modes, configurable via serial communication, with a current consumption of 155mA.
