PTL110S-FF200LD3-QP150 Banner Pick-to-Light Sensors

PTL110S-FF200LD3-QP150 on Powermatic Associates
Banner
  • PTL110S-FF200LD3-QP150
  • PTL110S-FF200LD3-QP150

Part#:PTL110S-FF200LD3-QP150

Alt. Part#:805488

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

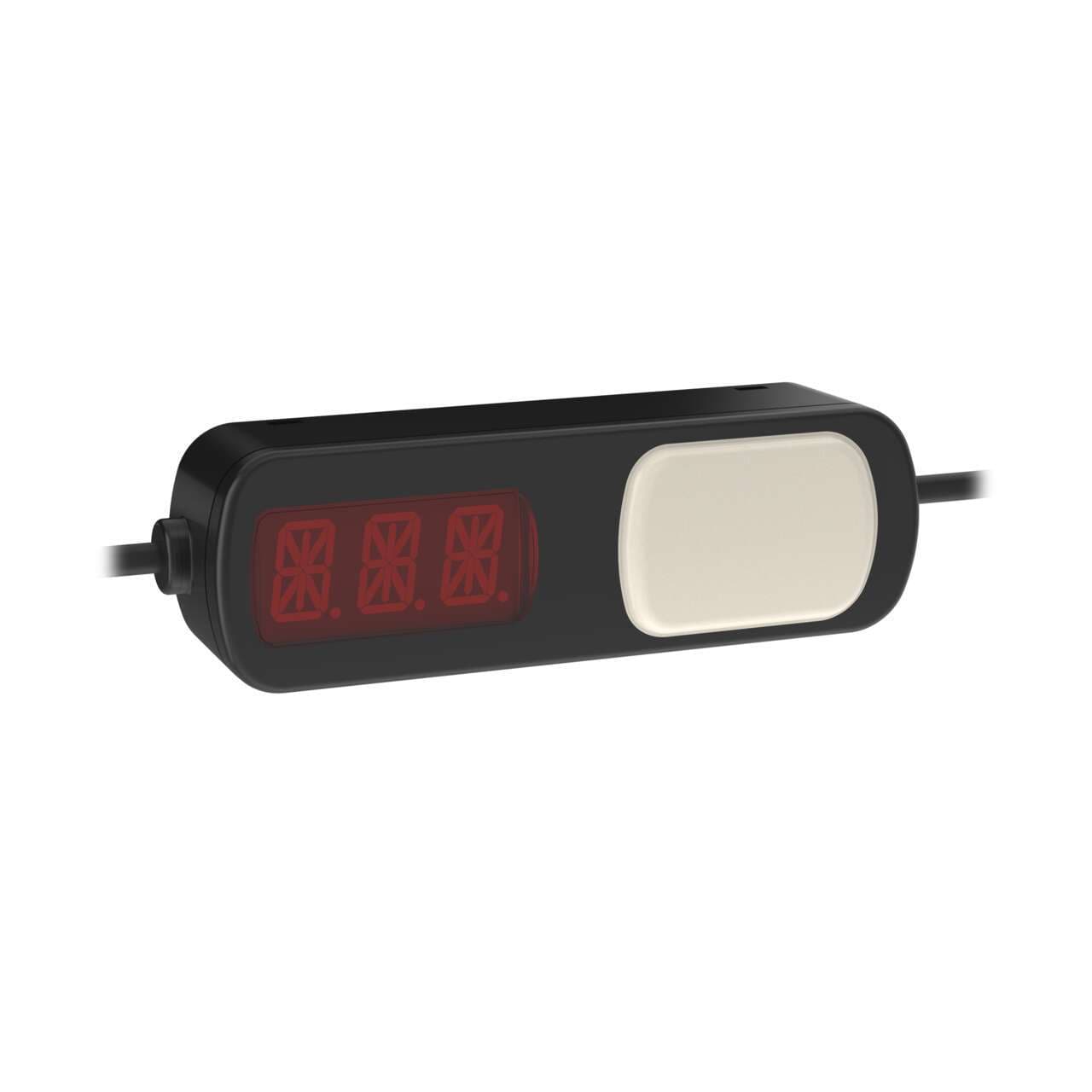

PTL110 Node; Voltage: 10-30 V dc; Environmental Rating: IP54; 200 mm Fixed Field; 3-digit 14-segment LED Display; 150 mm (6 in) M12 PVC Pigtail QDs

Product Details

  • Weight
    12.700576 g
  • Country Of Origin
    US
  • Feature: Audible
    No
  • Physical Dimensions (LxWxH or DxH mm)
    110.0 x 35.0 x 33.1
  • Connection
    Pigtail QD
  • Power Source
    DC
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Modbus RTU
    Yes
  • Job Light
    Programmable
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • PICK-IQ (Modbus RTU)
    Yes
  • Maximum Sensing Distance (mm)
    200
  • Max Op. Temperature (°C)
    50
  • Primary Housing Color
    Black
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Number of Beams
    1
  • Output Type
    Communication Protocol
  • Environmental Rating
    IP54
  • Number of Input Pins/Conductors
    4
  • Pick-to-Light Function
    Programmable
  • Supply Voltage
    10-30 V dc
  • Mis-Pick Light
    Programmable
  • Animation Option 1
    Modbus Controlled
  • Acknowledge (Sense) Light
    Programmable
  • Number of Colors / Segments
    14
  • Max Current Color (mA)
    155
  • Quick Disconnect Type
    M12 (Euro)
  • Product Size (mm)
    110
  • Color Input Control
    Communication Protocol
  • Color Option 1
    RGB
  • Color Technology
    RGB Configurable
  • Housing Style
    Flat Mount - Flat Window
  • Actuation
    Yes
  • Primary Housing Material
    ABS
  • Power
    DC
  • Sensing Mode (General)
    Fixed Field
  • Mounting Thread
    No Thread
  • Indication
    Yes
  • Activation Function
    Optical

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PTL110S-FF200LD3-QP150 on Powermatic Associates is $239.00. Order now.

About the product

Banner Engineering PTL110S-FF200LD3-QP150 is a scalable versatile capacitive touch-sensitive pick-to-light node designed for surface or pipe mounting. It operates within an ambient air temperature range of -40°C to +50°C and features fixed field sensing with PICK IQ serial communication, compatible with RS-485 / Modbus RTU, and LED illumination. This part is pre-wired with two 6" / 15cm PVC pigtails terminated with 4-pin M12 Euro-style QD connectors. It offers a degree of protection of IP54 and requires a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The rectangular-shaped body is made from an ABS housing with a polycarbonate indicator and an acrylic lens, in a black housing with a gray window. It has a 200mm sensing range and supports both momentary and latched operating modes, configurable via serial communication, with a current consumption of 155mA.
