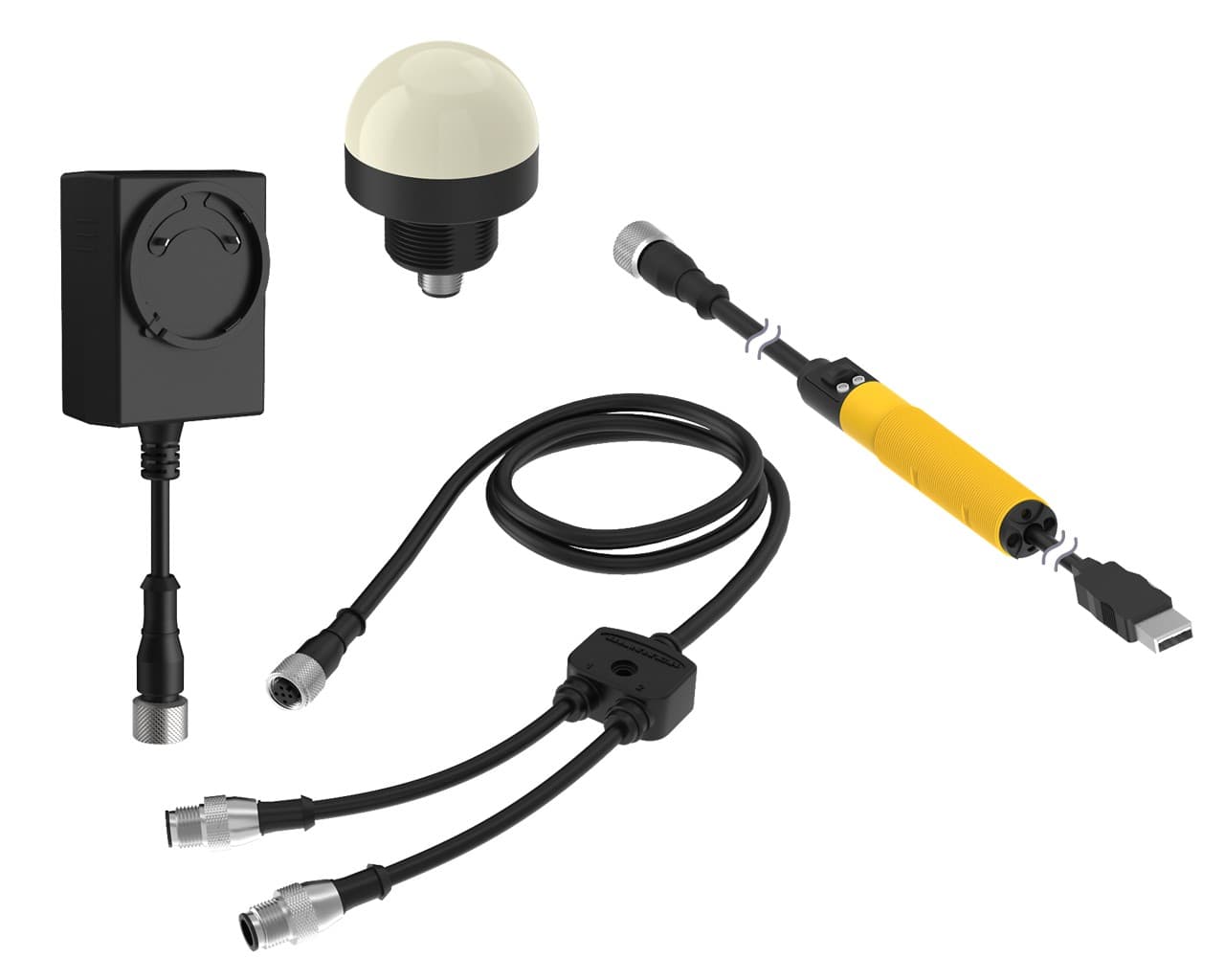

PRO-KIT-K50 Banner Electronic Components

Product Details

• Pro-Editor Compatible (Discrete)
  Yes
• Wireless
  No
• Modbus RTU
  No
• IO Link
  No
• Feature: Chemical Resistant
  No
• Feature: Quick Disconnect
  Yes
• Multi-Color Device
  Single Color On
• Feature: Audible
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• Primary Window Material
  Polycarbonate Diffused
• Physical Dimensions (LxWxH or DxH mm)
  50.0 x 69.0
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Primary Housing Color
  Black
• Environmental Rating
  IP66; IP67; IP69
• Storage Temp (°C)
  -40 to 70
• Max Input Response Time (ms)
  250
• Input Type
  Bimodal (PNP/NPN)
• Supply Voltage
  10-30 V dc
• Min Op. Temperature (°C)
  -40
Number of Input Pins/Conductors
5
Max Op. Temperature (°C)
50
Color 7 - Wavelength/Color Temp/Coordinates
0.154, 0.321
Dimming Option
Programmable
Wire Selectable Function
Multi-Function
Lumens Color 7
25.1
Color Option 7
Cyan
Lumens Color 6
8.5
Color 6 - Wavelength/Color Temp/Coordinates
0.365, 0.176
Color Option 6
Magenta
Color 5 - Wavelength/Color Temp/Coordinates
5700K
Lumens Color 5
21.3
Color Option 5
White
Color 4 - Wavelength/Color Temp/Coordinates
0.457, 0.485
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Lumens Color 4
17.2
Color Option 4
Yellow
Color Option 3
Blue
Lumens Color 3
4.7
Color 2 - Wavelength/Color Temp/Coordinates
530 nm
Lumens Color 2
21.4
Color Option 2
Green
Quick Disconnect Type
M12 (Euro)
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Connection
Integral QD
Animation Option 1
Solid On
Lumens Color 1
6.3
Color Option 1
Red
Color Technology
RGB Configurable
Housing Style
Base Mount - Dome Window
Number of Colors / Segments
7
Indication
Yes
Product Size (mm)
50
Power
DC
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Primary Housing Material
Polycarbonate
Mounting Thread
M30 x 1.5
Power Source
DC
