PRO-KIT-ACC Banner Accessories for Signaling Devices

Name: PRO-KIT-ACC
Brand: Banner

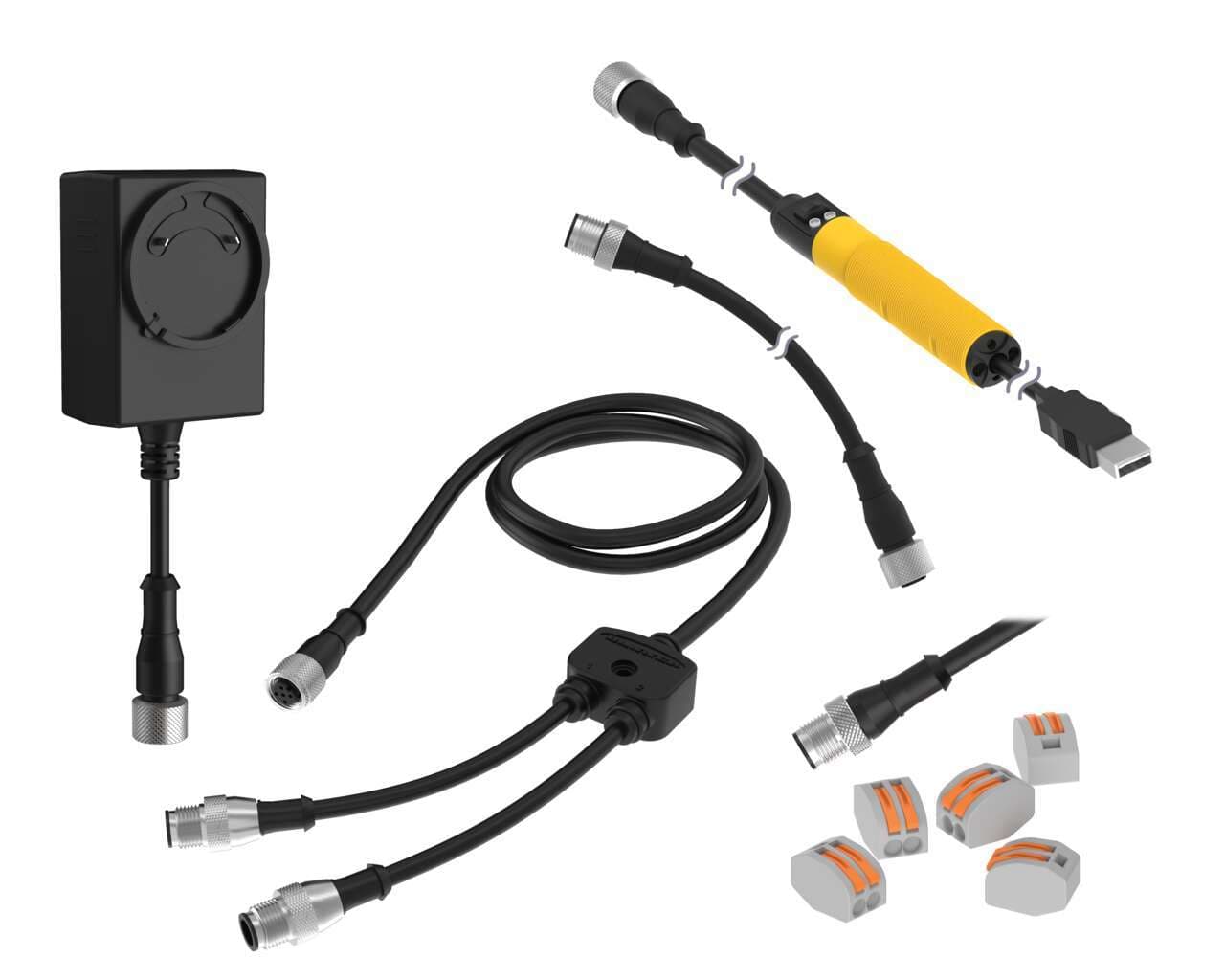

Banner PRO-KIT-ACC DK-Pro Series Accessory Kit Includes; Converter Cable, Splitter; Power Supply, WAGO Wire Nuts; and M12 Double Ended 8-pin to 5-pin Cordset

Part#:PRO-KIT-ACC

Manufacturer:Banner

Alt. Part#:806801

Product Lifecycle:Active

Get a quick Quote!

DK-Pro Series Accessory Kit Includes; Converter Cable, Splitter; Power Supply, WAGO Wire Nuts; and M12 Double Ended 8-pin to 5-pin Cordset

About the manufacturer: Banner is one of the manufacturers that offers Accessories for Signaling Devices that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PRO-KIT-ACC Banner price in the box on the right side or send a quick quote.

Product Details

Weight
589.6696 g
Country Of Origin
CN
Communicates to Lighting and Indicators
Yes
Oil/Grease Resistant
No
Feature: Hazardous Area
No
Secondary AWG
28
Secondary Number of Conductors
5
Secondary Orientation
Straight
Secondary Coupling Method
USB
Secondary Gender
Male
Secondary Connector Type
USB-A
Primary AWG
22
Primary Number of Conductors
5
Primary Orientation
Straight
Primary Gender
Female
Primary Coupling Method
M12 Single Key
IP Rating
IP67
Primary Connector Type
EURO
Voltage Rating (V)
5 V dc
Minimum Temp. (°C)
-40

Maximum Temp. (°C)

Current Rating (A)

0.75

Cable Jacket Color

Black

Outside Cable Diameter (mm)

5.9

Cable Jacket Material

PVC

Number of Connectors

Cordset Length (m)

2.0

Coupling Material/Color

Nylon/NPB

Connector Body Material/Color

PVC Black

Trunk Length (m)

No Trunk

Shield/No Shield

No Shield

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PRO-KIT-ACC Description

Banner Engineering PRO-KIT-ACC is a comprehensive pilot light kit designed for versatile mounting options including surface, base, or pole flush with an M30 thread for a 30mm hole. It operates within an ambient air temperature range of -40°C to +50°C. This kit features a 7-color RGB multicolor LED illumination, encapsulated within a 50mm / 2" dome-shaped, diffused window made from polycarbonate, and a base of the same material, in a black housing. It offers a high degree of protection with ratings of IP66, IP67, IP69K, NEMA 4X, NEMA 13, and UL type 4X, making it suitable for harsh environments. The kit includes a pilot light, converter cable, splitter, and power supply unit (P.S.U.), and requires a supply voltage of 10Vdc to 30Vdc (with 12Vdc to 24Vdc nominal). It features 3 x digital inputs for color control and 1 x digital input for flash control, both accepting 10-30Vdc, NPN/PNP signals, and has a current consumption of 220mA.
