Powermatic Associates Logo

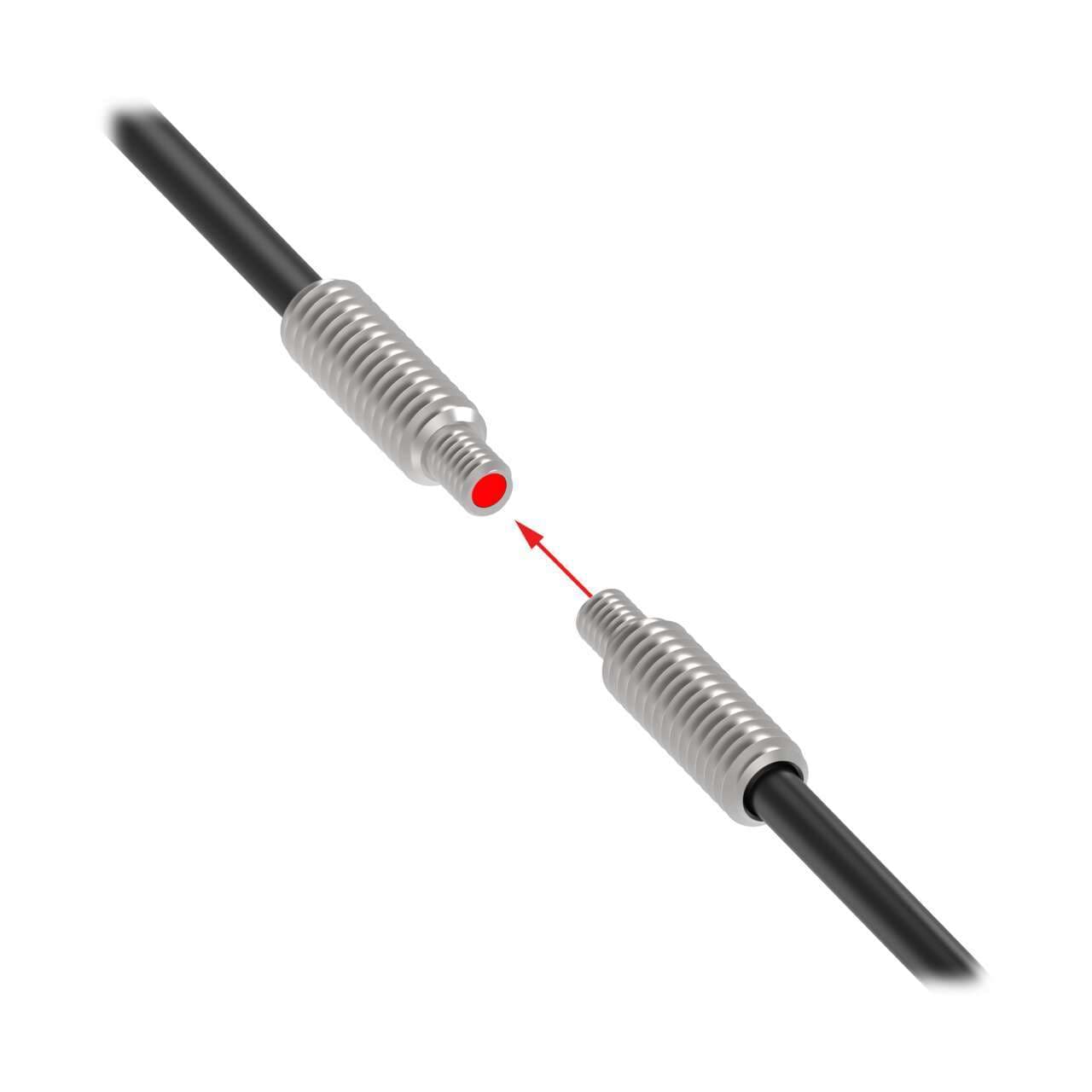

PIT66U Banner Through Beam Sensors

PIT66U on Powermatic Associates
Banner
  • PIT66U
  • PIT66U

Part#:PIT66U

Alt. Part#:39899

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber; Opposed Mode; Core Dia.: 1.5 mm; Fiber Length 2 m; Thread; Free cut

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    TW
  • Minimum Bend Radius (mm)
    40
  • Sensing End Segment 1
    Thread
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Sensing End Size - Mounting Area
    M4
  • Feature: Chemical Resistant
    No
  • Fiber Sensing End Size
    M2.5
  • Max Distance: DF-G1 (mm)
    No Data
  • Max Distance: DF-G3 (mm)
    No Data
  • Max Distance: DF-G2 (mm)
    No Data
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    4
  • Feature: Extended Range
    No
  • Application: Vacuum Feed Through
    None
  • Feature: Small Object Detection
    No
  • Application: Liquid Level
    No
  • Minimum Repeat Bending Endurance
    10000
  • Max Temp ( °C)
    70
  • Integrated Lens
    No
  • Core Diameter (mm)
    1.5
  • Termination
    Free Cut
  • Sensing End Segment 2
    Thread
  • Flex Relief
    No
  • Retractile
    No
  • Fiber Length (m)
    2
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Quantity Included
    2
  • Sensing Mode (General)
    Opposed
  • Fiber Sensing End Tip
    Thread
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Beam Exit
    In-line
  • Sensing Mode (Detailed)
    Reflective
  • Fiber Optic Type
    Plastic
  • Housing Style
    Round

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT66U on Powermatic Associates is $77.00. Order now.

About the product

Banner Engineering PIT66U is a fiber optic sensor designed for in-line sensing with a through-beam system or opposed mode pair of individual fibers. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and features a cylindrical (threaded) probe tip with a diameter of 1.5mm for the fiber core. The sensing end is made of nickel-plated brass, while the fiber itself is plastic, and the sheath is constructed from polyethylene (PE). The total length of the fiber is 30ft (9m), accommodating a variety of installation requirements.
