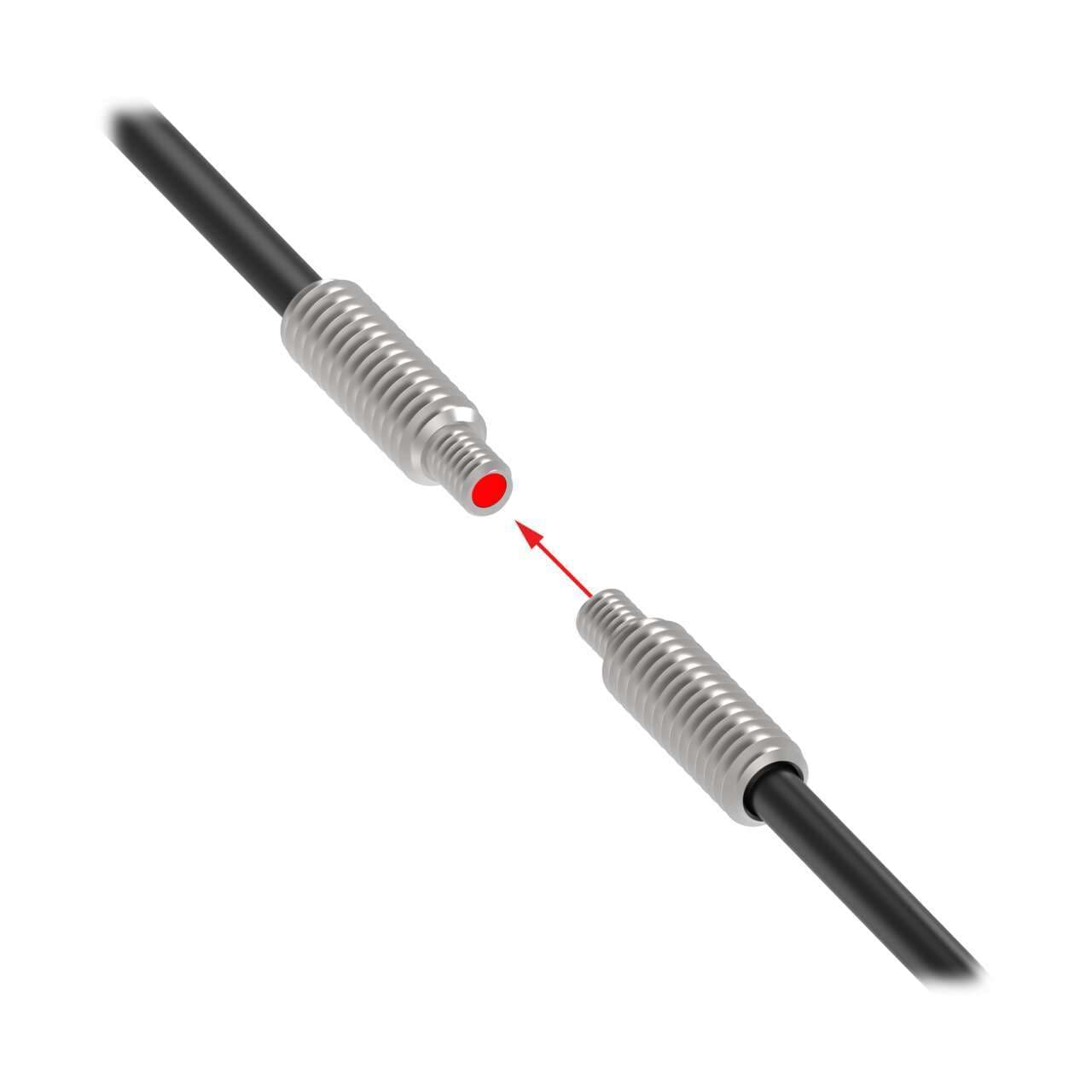

PIT615U Banner Through Beam Sensors
Part#:PIT615U
Manufacturer:Banner
Alt. Part#:48095
Product Lifecycle:Active
Get a quick Quote!
Plastic Fiber, Opposed Mode; Core Dia.: 1.5 mm; Fiber Length 5 m; Thread; Free cut
About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PIT615U Banner price in the box on the right side or send a quick quote.
Product Details
- Weight 72.57472 g
- Country Of Origin JP
- Core Diameter (mm) 1.5
- Max Distance: DF-G1 (mm) No Data
- Measured Max Distance (mm) No Data
- Fiber Sensing End Size - Mounting Area M4
- Integrated Lens No
- Minimum Repeat Bending Endurance 10000
- Minimum Bend Radius (mm) 40
- Max Distance: DF-G3 (mm) No Data
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Chemical Resistant No
- Feature: Small Object Detection No
- Feature: Extended Range No
- Sensing End Segment 2 Thread
- Sensing End Segment 1 Thread
- Fiber Sensing End Size M2.5
- Fiber Length (m) 5
- Sensing Mode (Detailed) Reflective
- Sensing End Material (Specific) Nickel-Plated Brass
- Sensing Mode (General) Opposed
- Fiber Sensing End Tip Thread
- Fiber Optic Type Plastic
- Beam Exit In-line
- Quantity Included 2
- Housing Style Round
- Fiber Sheathing Material (Jacket) Polyethylene
- Max Distance: DF-G2 (mm) No Data
- Tariff Fiber Meters (fbm) 10
- Termination Type Plastic Fiber Sensors
- Max Temp ( °C) 70
- Termination Free Cut
- Flex Relief No
- Retractile No
- Primary brand Banner Engineering
- Design through-beam system / opposed mode pair of individual fibers
- Shape Cylindrical (threaded) end tip
- Product series / family name Fiber sensors
- Thread size M4
- Main function Fiber sensor
- Length 15ft / 5m
- Ambient air temperature for operation +70 °C
- Sub-range name Plastic fiber series
- Material Brass sensing end Plastic fiber Polyethylene fiber sheath
- Order code / Manufacturer SKU 48095
- Functions Fiber optic sensor
- Diameter 1.5mm fiber core
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PIT615U Description
Banner Engineering PIT615U is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers for in-line sensing. This sensor operates effectively at an ambient air temperature up to +70°C. It belongs to the Plastic fiber series and is characterized by a 1.5mm fiber core diameter. The sensor has a cylindrical (threaded) probe tip made of brass, while the fiber itself is encased in a polyethylene (PE) fiber sheath. The total length of the fiber is 6ft / 2m, facilitating versatile installation options.
Related documents PIT615U Specs
