PGIRS66U-40 Banner Through Beam Sensors

PGIRS66U-40 on Powermatic Associates
Banner

Part#:PGIRS66U-40

Alt. Part#:801980

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

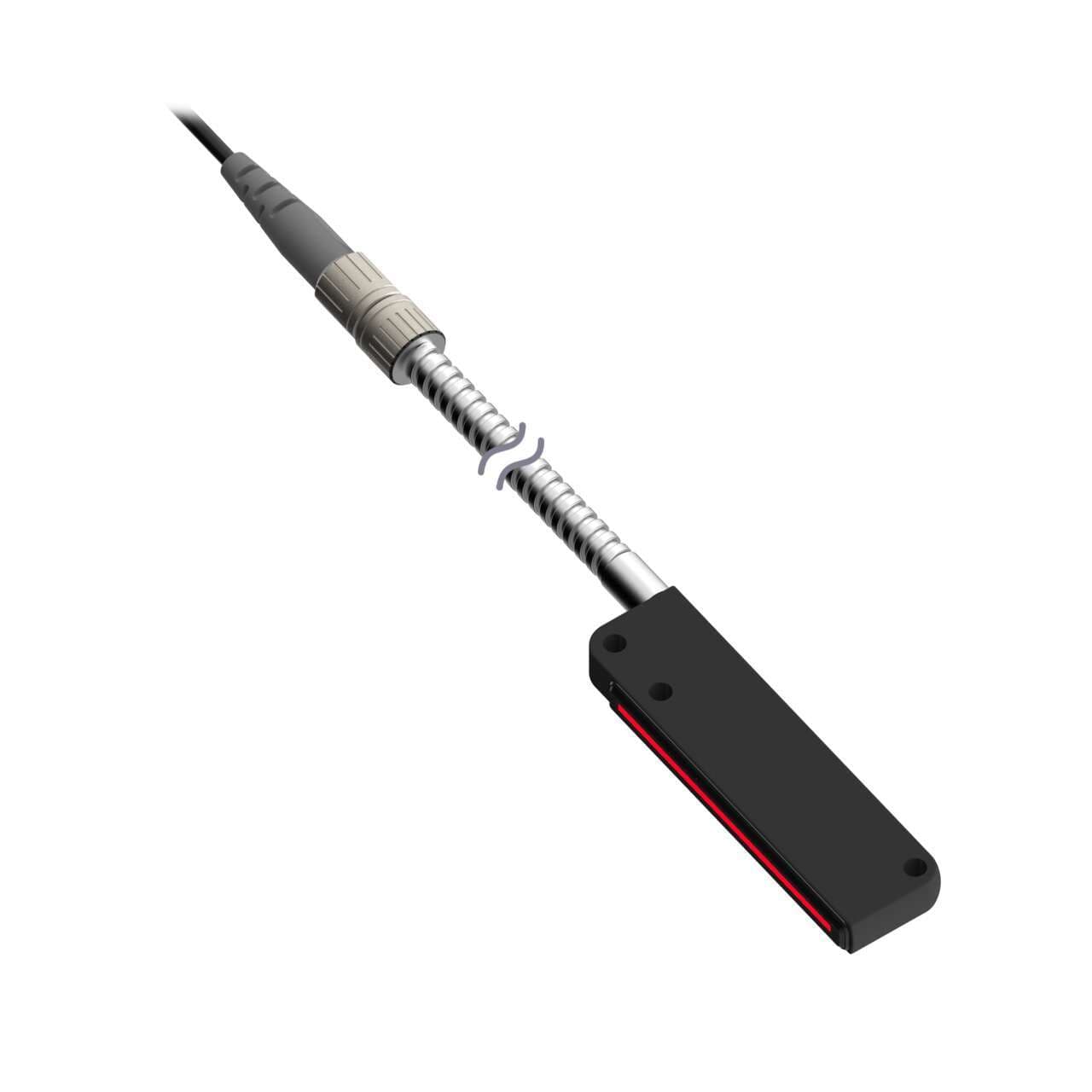

Plastic Fiber Group Array: Opposed Mode; 40 mm Fiber Array 159 x 0.25 mm core; Die Cast Rectangular Housing with coupled 2 m 1.5 mm core diameter plastic fiber; free cut

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    TW
  • Tariff Fiber Meters (fbm)
    51.7
  • Measured Max Distance (mm)
    545
  • Fiber Sensing End Size - Mounting Area
    60.0 x 16.0 mm
  • Max Distance: DF-G1 (mm)
    545
  • Max Distance: DF-G2 (mm)
    883
  • Max Distance: DF-G3 (mm)
    4237
  • Application: Vacuum Feed Through
    None
  • Termination Type
    Plastic Fiber Sensors
  • Feature: Small Object Detection
    Yes
  • Feature: Extended Range
    No
  • Application: Liquid Level
    No
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    1000
  • Max Temp ( °C)
    70
  • Termination
    Terminated
  • Feature: Chemical Resistant
    No
  • Minimum Bend Radius (mm)
    40
  • Flex Relief
    No
  • Core Diameter (mm)
    1.5
  • Retractile
    No
  • Array Length (mm)
    39.9
  • Sensing End Segment 2
    Sideview
  • Sensing End Segment 1
    Rectangle
  • Sensing End Segment 3
    Array
  • Fiber Sensing End Size
    60.0 x 16.0 mm
  • Fiber Sensing End Tip
    Array
  • Fiber Length (m)
    2
  • Beam Exit
    Right Angle
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Sensing End Material (Specific)
    Zinc Alloy
  • Sensing Mode (Detailed)
    Array
  • Sensing Mode (General)
    Opposed
  • Fiber Optic Type
    Plastic
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Housing Style
    Rectangular
  • Quantity Included
    2
  • Main function
    Fiber sensor
  • Functions
    Fiber optic sensor
  • Equivalent to
    PGIRS66U40
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode flex strain relief fibers pair Side / right-angled sensing
  • Dimensions
    60x16mm sensing area
  • Order code / Manufacturer SKU
    801980
  • Sub-range name
    Plastic fiber series
  • Length
    2m
  • Ambient air temperature for operation
    +70 °C
  • Product series / family name
    Fiber sensors
  • Shape
    Rectangular
  • Material
    Plastic fiber Plastic fiber Polyethylene fiber sheath

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGIRS66U-40 on Powermatic Associates is $284.00. Order now.


About the product

Square D by Schneider Electric PGIRS66U-40 is a Molded Case Circuit Breaker (MCCB) designed for mounting on a plate. It features a standard model with an 80% rated current of 1000A and utilizes lugs for both load and line side connections. This breaker is part of the PowerPact PGL sub-range and operates at a rated voltage of 600V AC. It is a 2-pole device offering protection functions including Long-time (L) and Instantaneous (I) protection. The trip current rating is set at 1000 AT with a frame current rating of 1200 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at both 480Y/277Vac and 480Vac, and 18kA at both 600Y/347Vac and 600Vac. Both poles are protected, and it features an ET1.01 (LI) Electronic trip unit type.
