PGIRS66U-15 Banner Through Beam Sensors
Part#:PGIRS66U-15
Alt. Part#:804016
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

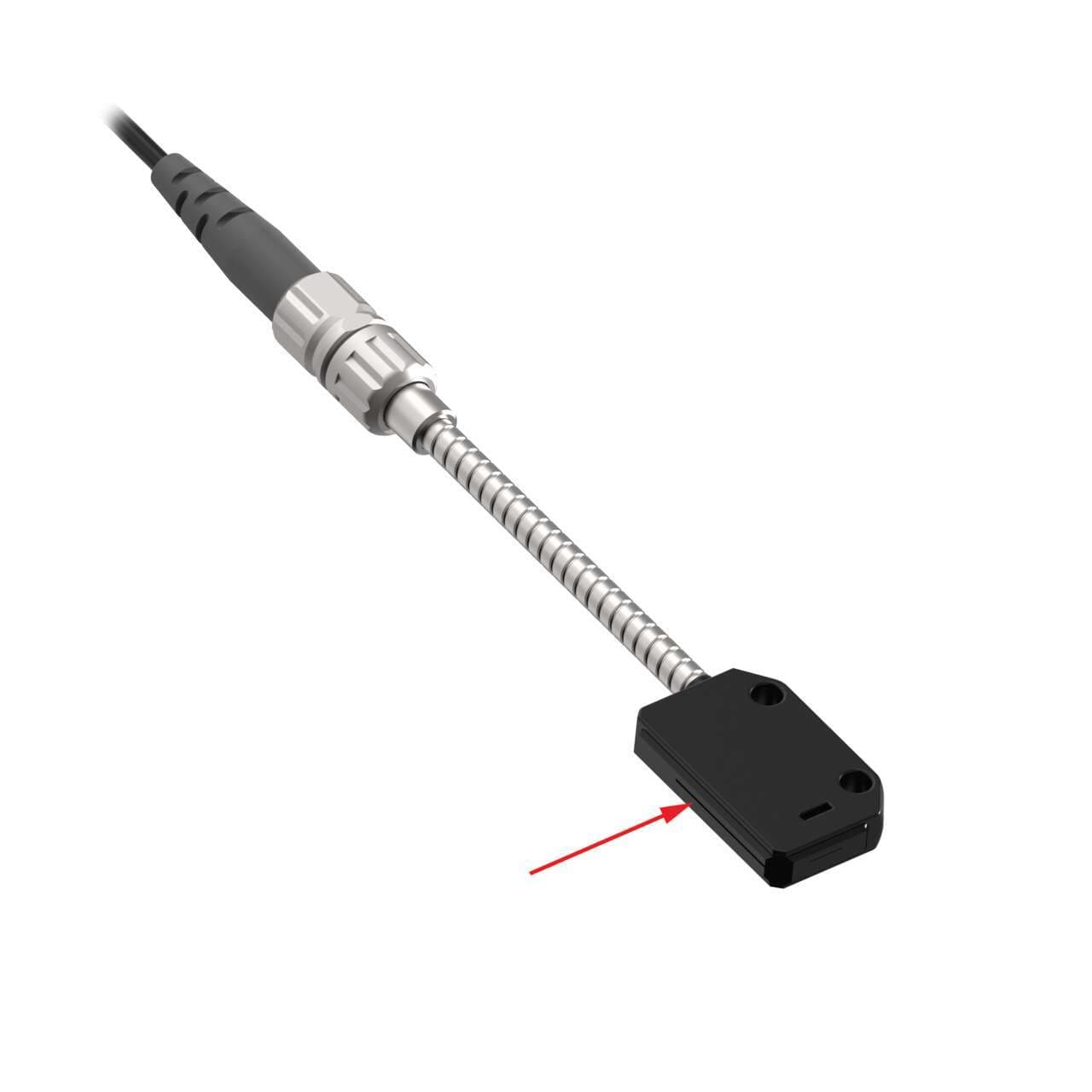

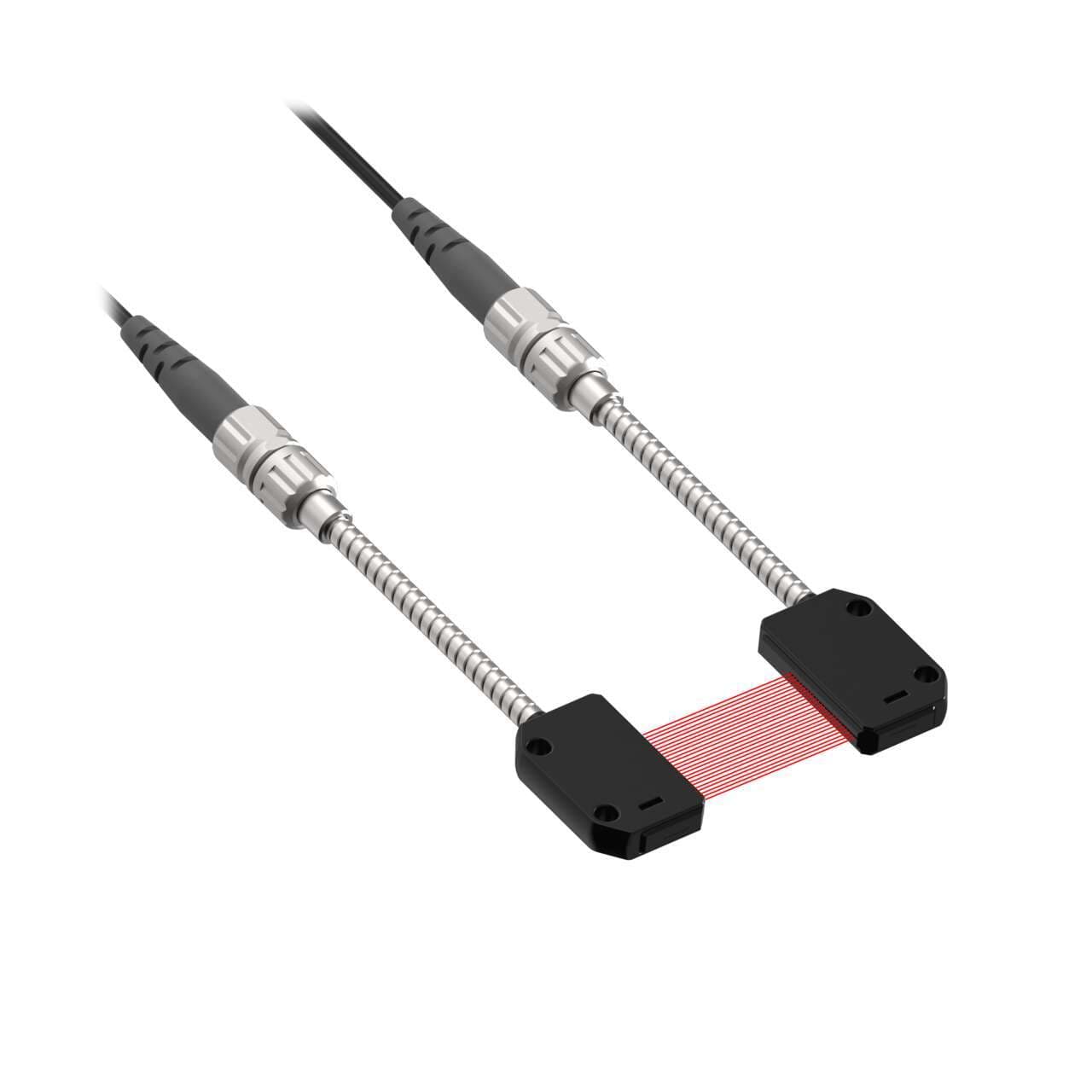

Plastic Fiber Group Array: Opposed Mode; 15 mm Fiber Array 59X 0.25 mm Core; Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber; Free Cut
Product Details
- Weight 134.263232 g
- Country Of Origin TW
- Fiber Sensing End Size - Mounting Area 16.0 x 25.0 mm
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G3 (mm) 3696
- Measured Max Distance (mm) 476
- Max Distance: DF-G2 (mm) 771
- Tariff Fiber Meters (fbm) 19.7
- Application: Vacuum Feed Through None
- Max Distance: DF-G1 (mm) 476
- Feature: Extended Range No
- Feature: Chemical Resistant No
- Application: Liquid Level No
- Feature: Small Object Detection Yes
- Integrated Lens No
- Max Temp ( °C) 70
- Minimum Repeat Bending Endurance 1000
- Termination Free Cut
- Minimum Bend Radius (mm) 40
- Core Diameter (mm) 59 x 0.25
- Flex Relief No
- Retractile No
- Array Length (mm) 15
- Sensing End Segment 2 Array
- Fiber Sensing End Tip Array
- Sensing End Segment 1 Angle
- Fiber Sensing End Size 16.0 x 25.0 mm
- Fiber Length (m) 2
- Sensing Mode (General) Opposed
- Max Range: DF-G3 (mm) >3m - <=5m
- Sensing Mode (Detailed) Array
- Beam Exit Right Angle
- Sensing End Material (Specific) Zinc Alloy
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Quantity Included 2
- Fiber Optic Type Plastic
- Housing Style Rectangular
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PGIRS66U-15 on Powermatic Associates is $184.00. Order now.
About the product
Banner Engineering PGIRS66U-15 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers positioned side by side with a right-angled sensing orientation. This sensor falls under the Plastic fiber series, characterized by its rectangular shape with a 60x16mm sensing area. It is constructed from plastic fiber with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various applications. The sensor has a total length of 2 meters and is capable of operating in ambient air temperatures up to +70°C, making it suitable for a wide range of industrial environments.
