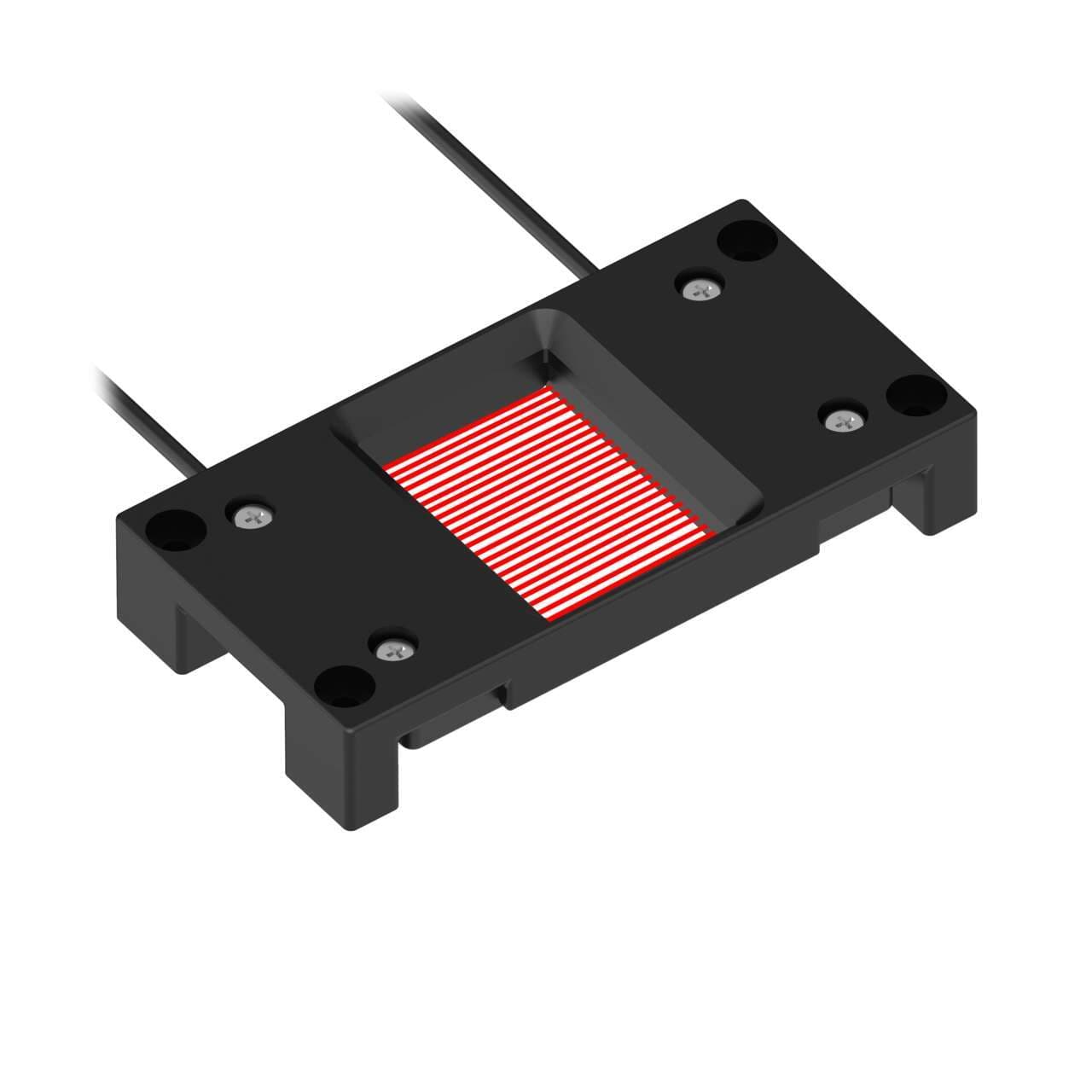

PFCVA-34X25-S Banner Through Beam Sensors

Product Details

• Weight
  69.853168 g
• Country Of Origin
  JP
• Fiber Sensing End Size - Mounting Area
  42.0 x 83.0 mm
• Feature: Small Object Detection
  Yes
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Slot Width (mm)
  25
• Measured Max Distance (mm)
  No Data
• Tariff Fiber Meters (fbm)
  64
• Application: Vacuum Feed Through
  None
• Termination Type
  Plastic Fiber Sensors
• Application: Liquid Level
  No
• Feature: Extended Range
  No
• Minimum Bend Radius (mm)
  5
• Minimum Repeat Bending Endurance
  10000
• Core Diameter (mm)
  16 x 0.3
• Feature: Chemical Resistant
  No
• Termination
  Terminated
• Integrated Lens
  No
Max Temp ( °C)
70
Flex Relief
No
Sensing End Segment 2
Slot
Sensing End Segment 1
Rectangle
Fiber Sensing End Size
25.0 x 34.0 mm
Fiber Length (m)
2
Retractile
No
Array Length (mm)
34
Sensing End Segment 3
Array
Fiber Sensing End Tip
Array
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing End Material (Specific)
Polyethylene
Sensing Mode (Detailed)
Array
Beam Exit
Right Angle
Sensing Mode (General)
Opposed
Fiber Optic Type
Plastic
Quantity Included
1
Housing Style
Fixtured
Product series / family name
Fiber sensors
Dimensions
34x25mm sensing area
Equivalent to
PFCVA34X25S
Functions
Fiber optic sensor
Design
Side / right-angled sensing
Primary brand
Banner Engineering
Technical compatibility with
D10 Expert series
Ambient air temperature for operation
+70 °C
Sub-range name
Plastic fiber series
Order code / Manufacturer SKU
10385
Main function
Fiber sensor
Length
2m
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
