PFCVA-25X25-E Banner Through Beam Sensors

PFCVA-25X25-E on Powermatic Associates
Banner

Part#:PFCVA-25X25-E

Manufacturer:Banner

Alt. Part#:10387

Product Lifecycle:Active

Get a quick Quote!

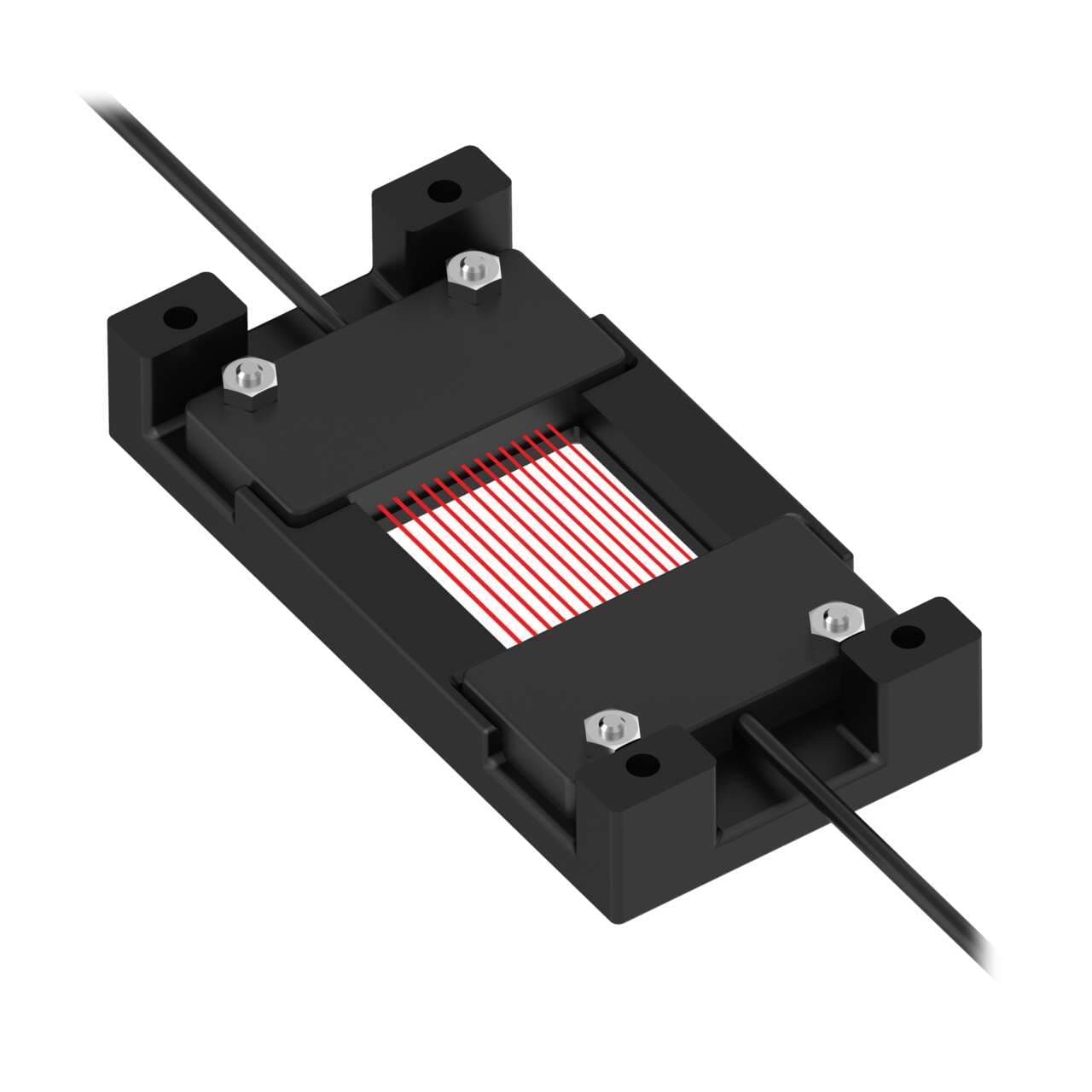

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Array; T5 Termination

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PFCVA-25X25-E Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    73.481904 g
  • Country Of Origin
    JP
  • Max Distance: DF-G1 (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    64
  • Max Distance: DF-G2 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    42.0 x 83.0 mm
  • Max Distance: DF-G3 (mm)
    No Data
  • Slot Width (mm)
    25
  • Measured Max Distance (mm)
    No Data
  • Application: Liquid Level
    No
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Feature: Chemical Resistant
    No
  • Feature: Small Object Detection
    Yes
  • Feature: Extended Range
    No
  • Integrated Lens
    No
  • Max Temp ( °C)
    70
  • Minimum Repeat Bending Endurance
    10000
  • Termination
    Terminated
  • Minimum Bend Radius (mm)
    5
  • Core Diameter (mm)
    16 x 0.3
  • Sensing End Segment 1
    Rectangle
  • Sensing End Segment 3
    Array
  • Flex Relief
    No
  • Retractile
    No
  • Array Length (mm)
    25
  • Sensing End Segment 2
    Slot
  • Fiber Sensing End Size
    25.0 x 25.0 mm
  • Fiber Length (m)
    2
  • Fiber Sensing End Tip
    Array
  • Sensing Mode (General)
    Opposed
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Material (Specific)
    Polyethylene
  • Sensing Mode (Detailed)
    Array
  • Beam Exit
    In-line
  • Fiber Optic Type
    Plastic
  • Quantity Included
    1
  • Housing Style
    Fixtured
  • Product series / family name
    Fiber sensors
  • Functions
    Fiber optic sensor
  • Order code / Manufacturer SKU
    10387
  • Primary brand
    Banner Engineering
  • Length
    2m
  • Equivalent to
    PFCVA25X25E
  • Main function
    Fiber sensor
  • Design
    Pre-mounted pair In-line sensing
  • Material
    Plastic sensing end Plastic fiber Polyethylene fiber sheath
  • Dimensions
    25x25mm sensing area
  • Technical compatibility with
    D10 Expert series
  • Sub-range name
    Plastic fiber series
  • Ambient air temperature for operation
    +70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PFCVA-25X25-E Description

Banner Engineering PFCVA-25X25-E is a fiber optic sensor designed for diffuse mode side or right-angled coaxial sensing. It falls under the Plastic fiber series and features a 25x25mm sensing area. The sensor is equipped with a plastic sensing end and a polyethylene (PE) fiber sheath. It has a total length of 2 meters and is capable of operating in ambient air temperatures up to +70°C.
