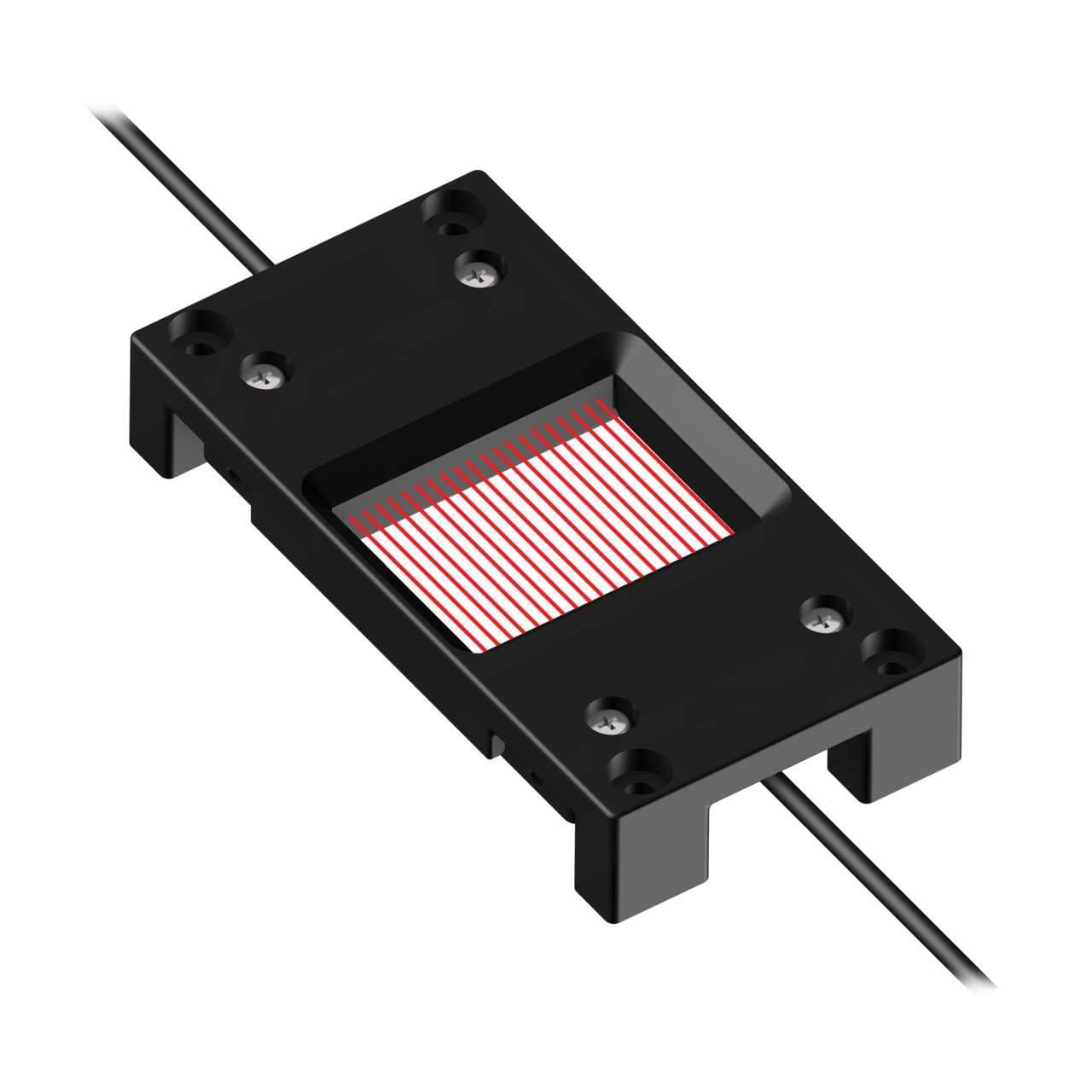

PFCVA-34X25-E Banner Through Beam Sensors

Product Details

• Weight
  68.0388 g
• Country Of Origin
  JP
• Termination Type
  Plastic Fiber Sensors
• Fiber Sensing End Size - Mounting Area
  42.0 x 83.0 mm
• Max Distance: DF-G2 (mm)
  No Data
• Max Distance: DF-G1 (mm)
  No Data
• Max Distance: DF-G3 (mm)
  No Data
• Slot Width (mm)
  25
• Application: Vacuum Feed Through
  None
• Tariff Fiber Meters (fbm)
  64
• Measured Max Distance (mm)
  No Data
• Application: Liquid Level
  No
• Feature: Extended Range
  No
• Max Temp ( °C)
  70
• Feature: Small Object Detection
  Yes
• Minimum Repeat Bending Endurance
  10000
• Feature: Chemical Resistant
  No
• Integrated Lens
  No
• Termination
  Terminated
• Core Diameter (mm)
  16 x 0.3
Minimum Bend Radius (mm)
5
Sensing End Segment 2
Slot
Array Length (mm)
34
Flex Relief
No
Retractile
No
Sensing End Segment 3
Array
Sensing End Segment 1
Rectangle
Fiber Length (m)
2
Fiber Sensing End Size
25.0 x 34.0 mm
Fiber Sheathing Material (Jacket)
Polyethylene
Sensing Mode (Detailed)
Array
Quantity Included
1
Fiber Sensing End Tip
Array
Sensing End Material (Specific)
Polyethylene
Beam Exit
In-line
Sensing Mode (General)
Opposed
Fiber Optic Type
Plastic
Housing Style
Fixtured
Main function
Fiber sensor
Material
Plastic sensing end Plastic fiber Polyethylene fiber sheath
Order code / Manufacturer SKU
10388
Primary brand
Banner Engineering
Design
Side / right-angled sensing
Dimensions
34x25mm sensing area
Ambient air temperature for operation
+70 °C
Functions
Fiber optic sensor
Product series / family name
Fiber sensors
Length
2m
Equivalent to
PFCVA34X25E
Sub-range name
Plastic fiber series
Technical compatibility with
D10 Expert series
