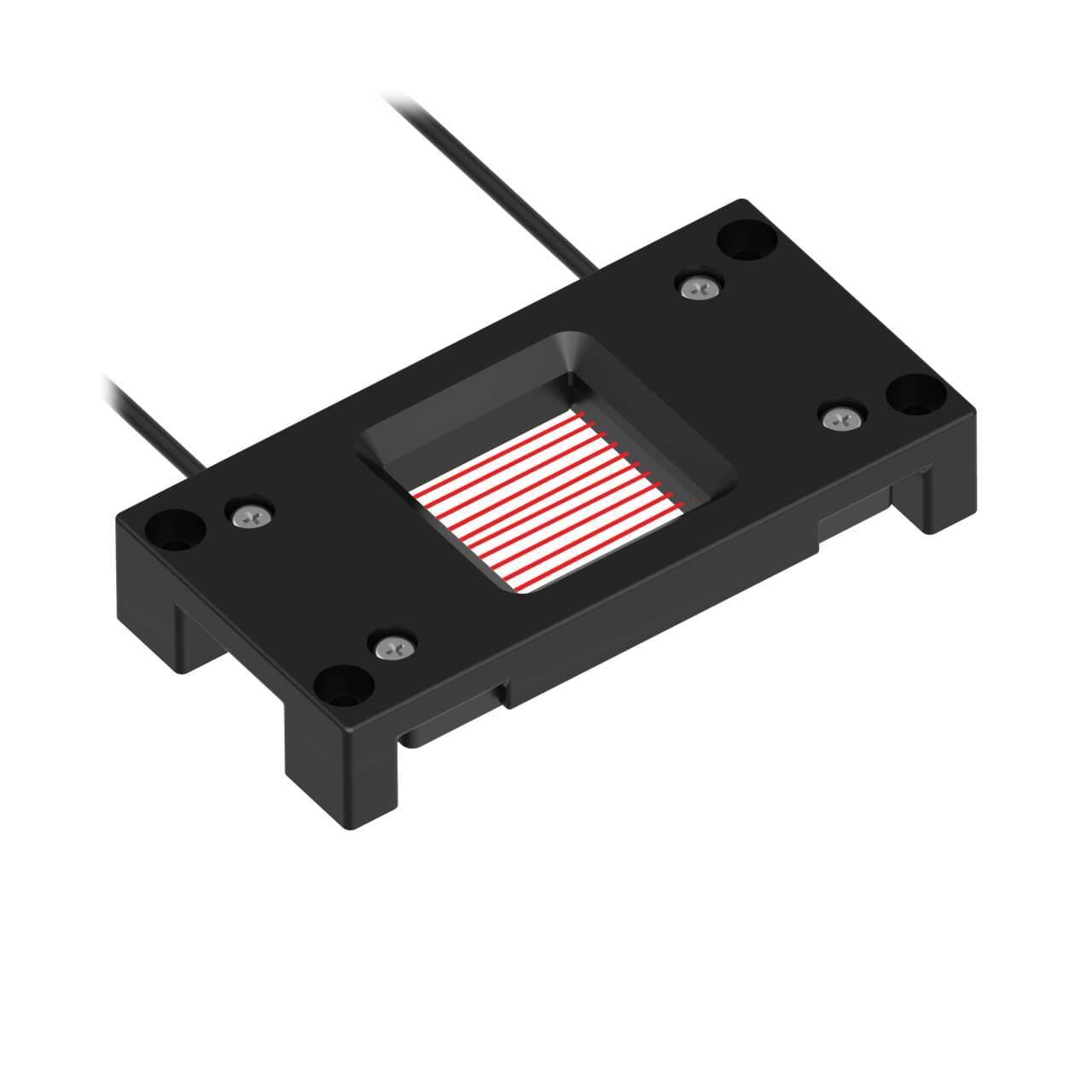

PFCVA-25X25-S Banner Through Beam Sensors

PFCVA-25X25-S on Powermatic Associates
Banner
  • PFCVA-25X25-S
  • PFCVA-25X25-S

Part#:PFCVA-25X25-S

Alt. Part#:10384

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Array; T5 Termination

Product Details

  • Weight
    72.57472 g
  • Country Of Origin
    JP
  • Max Distance: DF-G3 (mm)
    No Data
  • Max Distance: DF-G1 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    42.0 x 83.0 mm
  • Max Distance: DF-G2 (mm)
    No Data
  • Slot Width (mm)
    25
  • Measured Max Distance (mm)
    No Data
  • Tariff Fiber Meters (fbm)
    64
  • Termination Type
    Plastic Fiber Sensors
  • Application: Vacuum Feed Through
    None
  • Application: Liquid Level
    No
  • Feature: Extended Range
    No
  • Feature: Small Object Detection
    Yes
  • Integrated Lens
    No
  • Minimum Repeat Bending Endurance
    10000
  • Feature: Chemical Resistant
    No
  • Max Temp ( °C)
    70
  • Termination
    Terminated
  • Core Diameter (mm)
    16 x 0.3
  • Minimum Bend Radius (mm)
    5
  • Retractile
    No
  • Array Length (mm)
    25
  • Sensing End Segment 2
    Slot
  • Flex Relief
    No
  • Fiber Sensing End Size
    25.0 x 25.0 mm
  • Sensing End Segment 3
    Array
  • Sensing End Segment 1
    Rectangle
  • Fiber Length (m)
    2
  • Sensing End Material (Specific)
    Polyethylene
  • Sensing Mode (Detailed)
    Array
  • Quantity Included
    1
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Fiber Sensing End Tip
    Array
  • Beam Exit
    Right Angle
  • Fiber Optic Type
    Plastic
  • Sensing Mode (General)
    Opposed
  • Housing Style
    Fixtured

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PFCVA-25X25-S on Powermatic Associates is $217.00. Order now.

About the product

Banner Engineering PFCVA-25X25-S is a fiber optic sensor designed for diffuse mode side / right-angled coaxial sensing. It falls under the Plastic fiber series and features a 34x25mm sensing area. The sensor is equipped with a plastic sensing end and a polyethylene (PE) fiber sheath. It has a total length of 2 meters and is capable of operating in ambient air temperatures up to +70°C.

PFCVA-25X25-S Related Documents

146132.pdf
