MQD9-406RA Banner Cordsets

MQD9-406RA on Powermatic Associates
Banner

Part#:MQD9-406RA

Manufacturer:Banner

Category:Cordsets

Alt. Part#:47106

Product Lifecycle:Active

Get a quick Quote!

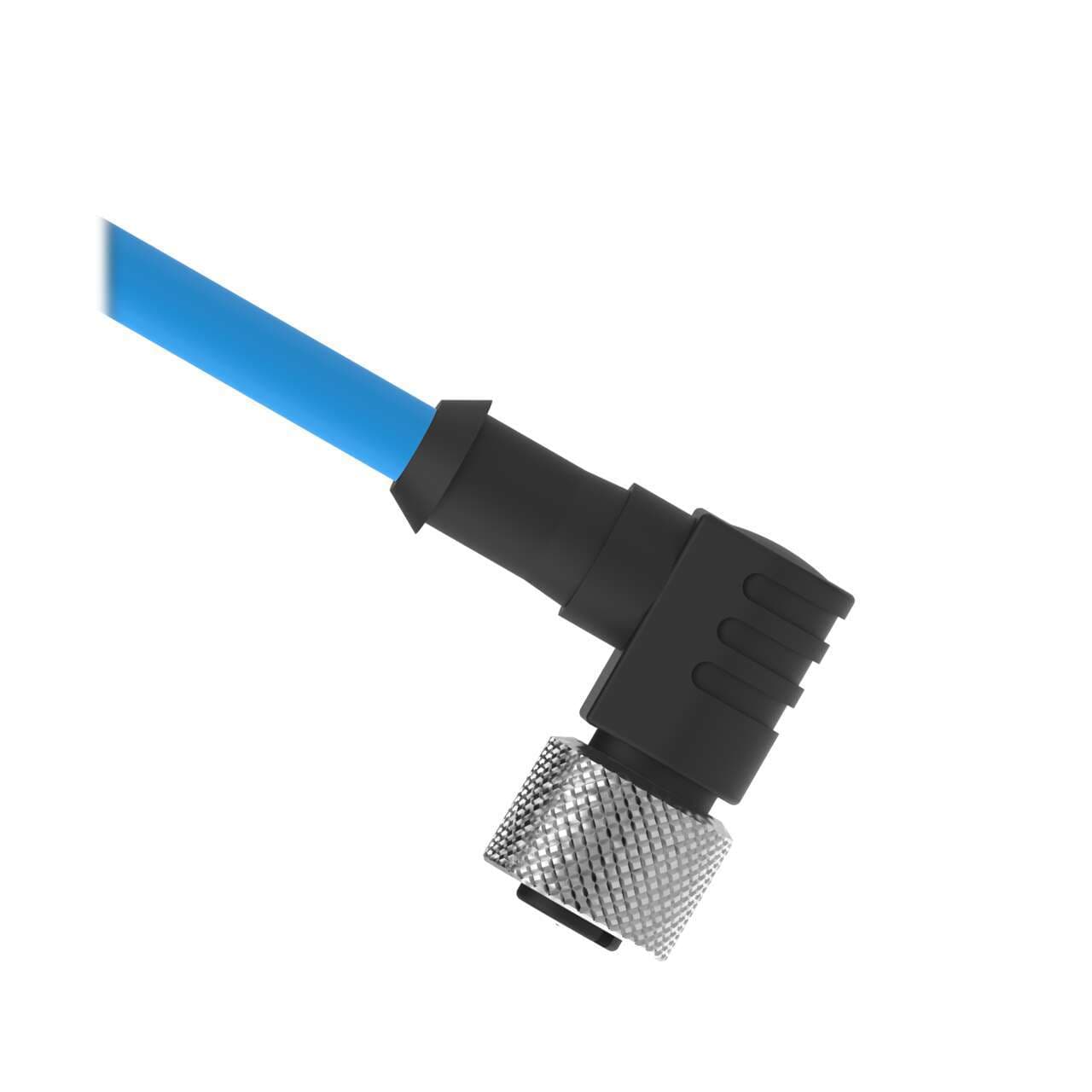

Cordset: Single Ended M12; 4-pin Right-Angle Female; 2 m (6.56 ft) 2x20 PVC Blue; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQD9-406RA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    81.64656 g
  • Country Of Origin
    US
  • Oil/Grease Resistant
    No
  • Feature: Hazardous Area
    Yes
  • Secondary Connector Type
    Flying Leads
  • Primary Number of Conductors
    2
  • Primary AWG
    20
  • Primary Connector Type
    EURO
  • IP Rating
    IP67
  • Coupling Material/Color
    Nickel Plated Brass
  • Voltage Rating (V)
    250 V ac/dc
  • Current Rating (A)
    4.0
  • Primary Gender
    Female
  • Primary Coupling Method
    M12 Single Key
  • Primary Orientation
    Right Angle
  • Minimum Temp. (°C)
    -40
  • Maximum Temp. (°C)
    105
  • Connector Body Material/Color
    PUR Black
  • Outside Cable Diameter (mm)
    5.2
  • Trunk Length (m)
    No Trunk
  • Cordset Length (m)
    1.83
  • Shield/No Shield
    No Shield
  • Cable Jacket Color
    Blue
  • Cable Jacket Material
    PVC
  • Number of Connectors
    1
  • Number of Contacts
    5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MQD9-406RA Description

Banner Engineering MQD9-406RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 5-pin Euro-style M12 female angled connector with bare end flying leads. The connection is secured with a chrome-plated brass coupling nut. This cable operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The sheathing is blue, and the cable has a length of 6.5 feet (approximately 2 meters). It is rated for a voltage of 250Vac.
