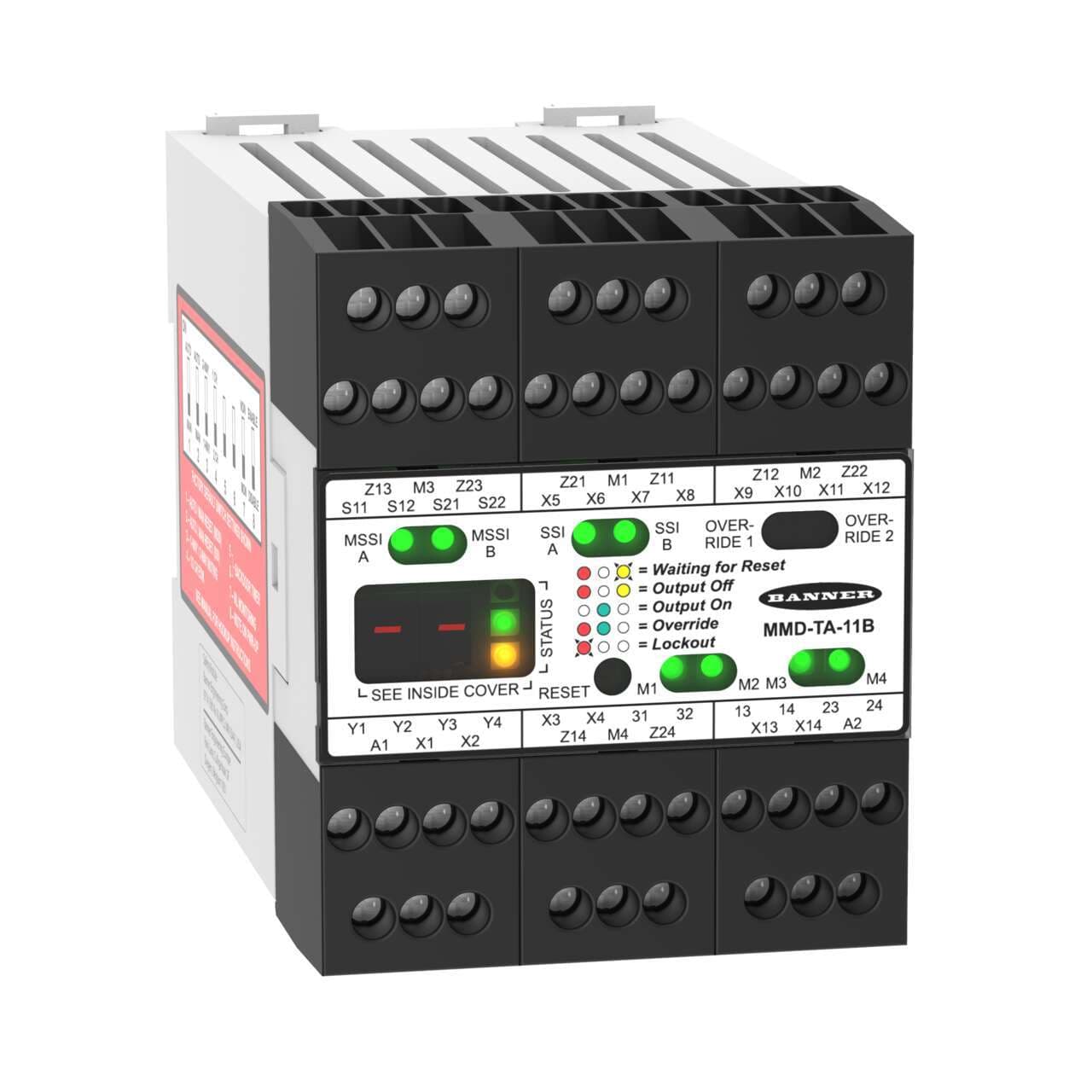

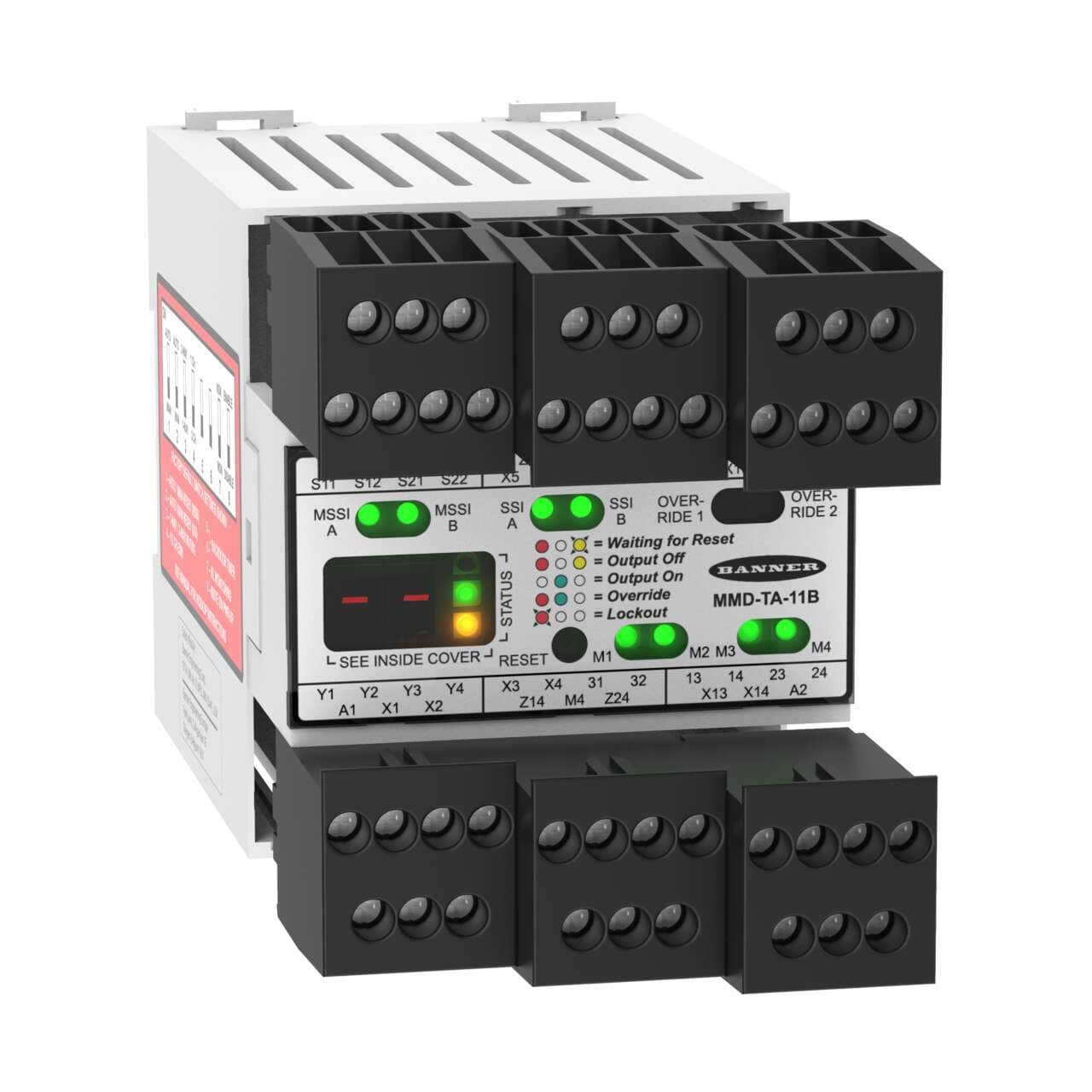

MMD-TA-11B Banner Safety Relays

Product Details

• Weight
  674.037712 g
• Country Of Origin
  US
• EtherNet/IP
  No
• Modbus/TCP
  No
• PROFINET
  No
• In-Series Diagnostics
  No
• PCCC
  No
• Common Ethernet Protocol
  No
• Light Curtains/Scanner with EDM Input
  Yes
• Light Curtains/Scanner without EDM Input
  Yes
• Gate Switch (OSSD) Input
  Yes
• Gate Switch (NC/NO) Input
  No
• Gate Switch (NC/NC) Input
  Yes
• Muting
  Yes
• Safety Mat
  No
• Motor Speed
  No
• Input Resistance
  400 Ω max. per channel
• SISTEMA
  PFHd = 2 x 10-9
• E-Stops/Rope Pulls
  Yes
• SIL Rating
  3
PL Rating
e
Safety Category Rating
4
Electrical Life (Cycles @ VA)
120,000 @ 1380 VA
IP Rating
IP20
Vibration
10-55 Hz at 0.35 mm
Mechanical Life (Operations in Millions)
50
Response Time (ms)
20 (max.)
Removable Terminals
Yes
Power Consumption
0.3 A
Terminal Type
Screw
Supply Voltage
24 V dc +/- 15%
Splittable Safe Output
No
Safe Output Rating
Relay - 6 A
Non Safe Output Rating
Relay - 6 A
Input Configuration
2 NC, 1 NC, or 2 PNP
Non Safe Output Configuration
1 NC
Output Configuration
2 NO
Safety Input - Dual Channel (Solid-State)
10-50 mA @ 15-30 V dc
Number of Safe Inputs
2
Safety Input - Reset
10-50 mA @ 15-30 V dc
Safety Input - Dual Channel (Dry Contact)
10-50 mA @ 15-30 V dc
Independently Controlled Safe Outputs
1
Dimension (H x W x D in mm)
84 x 67.5 x 118
LCD Display
No
Power
DC
Device Type
Safety Relay
Relative Humidity
95% @ 50° C
Expandable
No
Safety Module Type
Muting Module
Input Operation
Simultaneous within 3.0 s
Max Operating Temperature ( °C)
50

Related documents MMD-TA-11B Specs
