MAHE26A Banner Measurement Sensors
Part#:MAHE26A
Alt. Part#:62653
Manufacturer:Banner
Category:Measurement Sensors
Product Lifecycle:Active
Product description
High Res. MINI-ARRAY Emitter: 650 mm (25.6 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 256; System Range (w/matching receiver) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables
Product Details
- Weight 1814.368 g
- Country Of Origin MX
- Discrete Output N/A
- Max Relative Humidity 95%
- Power Supply 12V dc
- Minimum Object Sensitivity (mm) 2.5
- Emitter/Receiver Range (m) 0.38 - 1.8
- Max Temp (°C) 50
- Analog Output N/A
- RS-485 No
- Housing Length (mm) 724
- Array Length (mm) 650
- Number of Beams 256
- RS-232 No
- IO Link No
- DeviceNet No
- Modbus RTU No
- Beam Spacing 2.5 mm
- Primary Housing Material Aluminum
- Device Type Three-Piece
- Sensing Mode (Detailed) Emitter
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHE26A on Powermatic Associates is $2,917.00. Order now.
About the product

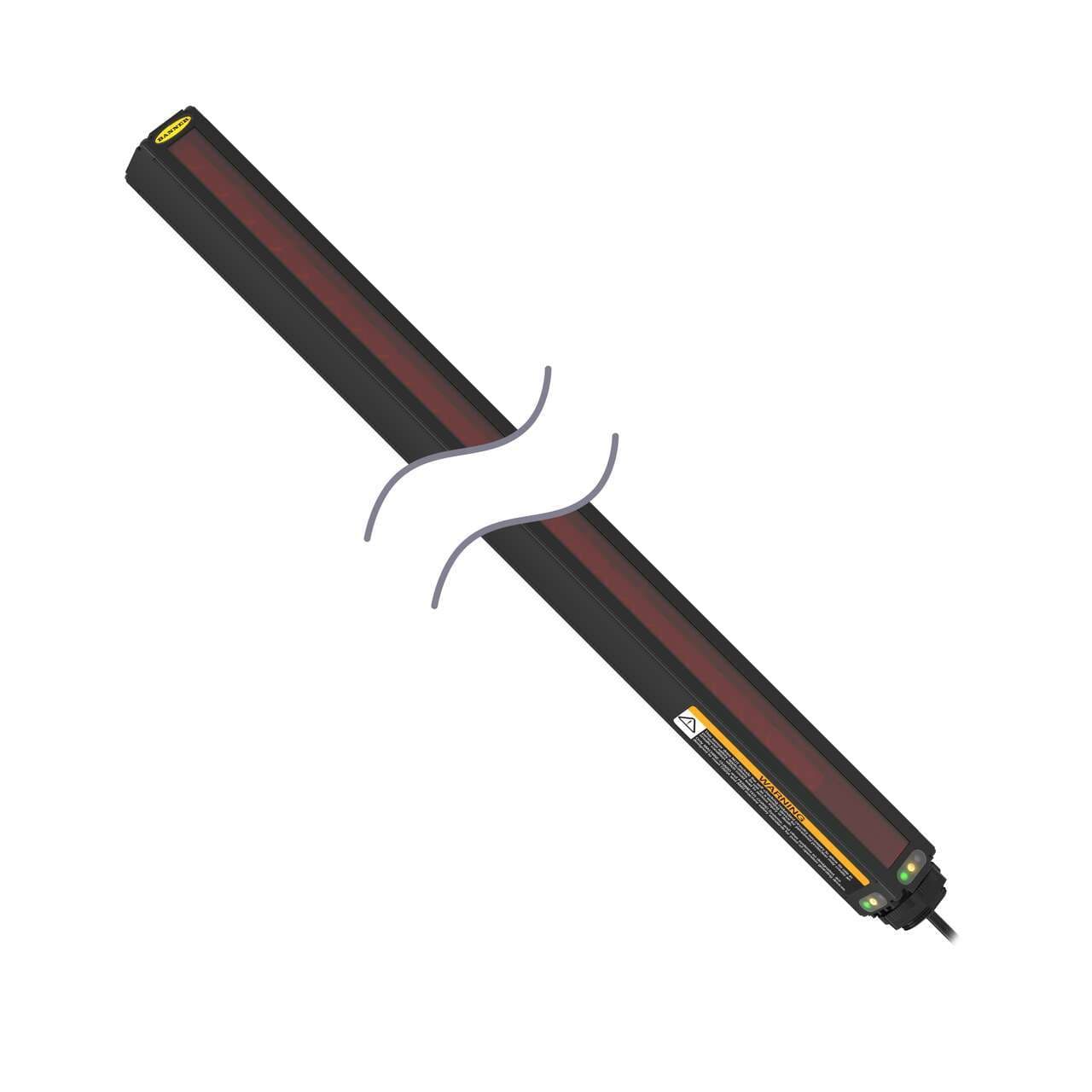

Banner Engineering MAHE26A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array sensor designed for precise detection tasks. This sensor features an array length of 650mm and is housed in a rectangular, aluminium casing. It operates with a beam spacing or pitch of 2.5mm, ensuring accurate sensing of objects as small as 2.5mm in size. The MAHE26A is pre-wired with a 6-inch (150mm) cable that terminates with bare end flying leads, facilitating easy integration into various systems. It requires a 12Vdc supply voltage and can operate within an ambient air temperature range of 0 to +50°C. With a sensing distance ranging from 38cm to 1.8m, this sensor is equipped with an IP65, NEMA 4, and NEMA 13 rated protection, making it suitable for a wide range of industrial applications.
