MAHE13A Banner Measurement Sensors

MAHE13A on Powermatic Associates
Banner

Part#:MAHE13A

Alt. Part#:62651

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

High-Res. MINI-ARRAY Emitter: 325 mm (12.8 in); Beam Spacing: 2.5 mm (0.1 in); Total Beams = 128; System Range (w/matching receiver) = 0.4-1.8 m; System Requires 2 Quick-Disconnect Cables

Product Details

  • Weight
    834.60928 g
  • Country Of Origin
    MX
  • Max Relative Humidity
    95%
  • Power Supply
    12V dc
  • Emitter/Receiver Range (m)
    0.38 - 1.8
  • Max Temp (°C)
    50
  • Discrete Output
    N/A
  • Housing Length (mm)
    399
  • Minimum Object Sensitivity (mm)
    2.5
  • Array Length (mm)
    325
  • RS-485
    No
  • Number of Beams
    128
  • Analog Output
    N/A
  • Modbus RTU
    No
  • RS-232
    No
  • DeviceNet
    No
  • IO Link
    No
  • Beam Spacing
    2.5 mm
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Emitter
  • Device Type
    Three-Piece
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAHE13A on Powermatic Associates is $1,757.00. Order now.


About the product

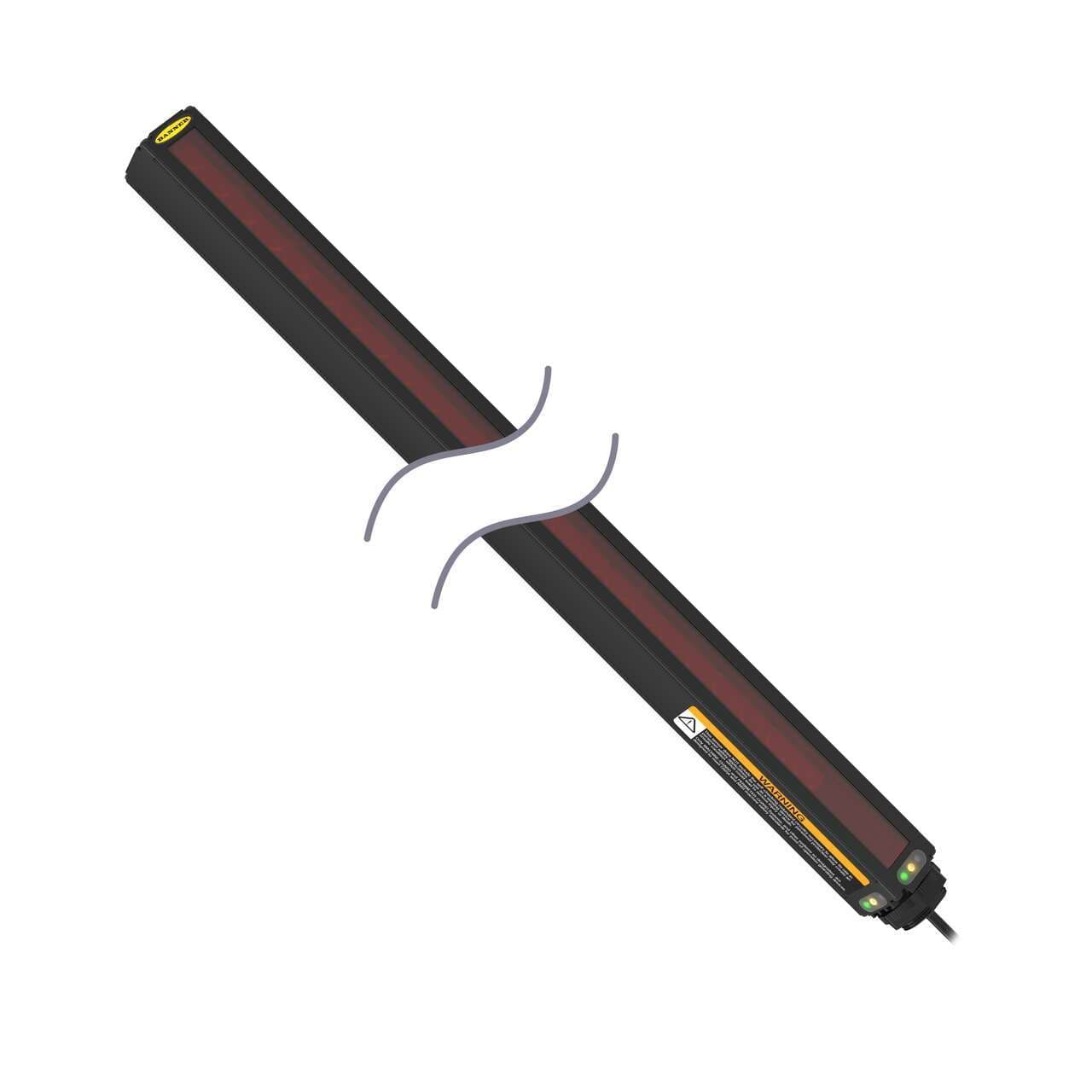

Banner Engineering MAHE13A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array designed as an emitter alone. This sensor features a 325mm array length and is housed in an aluminium casing with a rectangular shape. It offers a 2.5mm beam spacing/pitch and is pre-wired with a 6" / 150mm cable that terminates with bare end flying leads. The MAHE13A operates on a 12Vdc supply voltage and can function within an ambient air temperature range of 0 to +50°C. It is rated with a degree of protection of IP65, NEMA 4, and NEMA 13, ensuring its durability in various environments. The sensing distance of this sensor ranges from 38cm to 1.8m, with a resolution and detectable object size of 2.5mm, making it suitable for precise detection tasks.
