MAHE58A

Banner

Product Lifecycle: Active

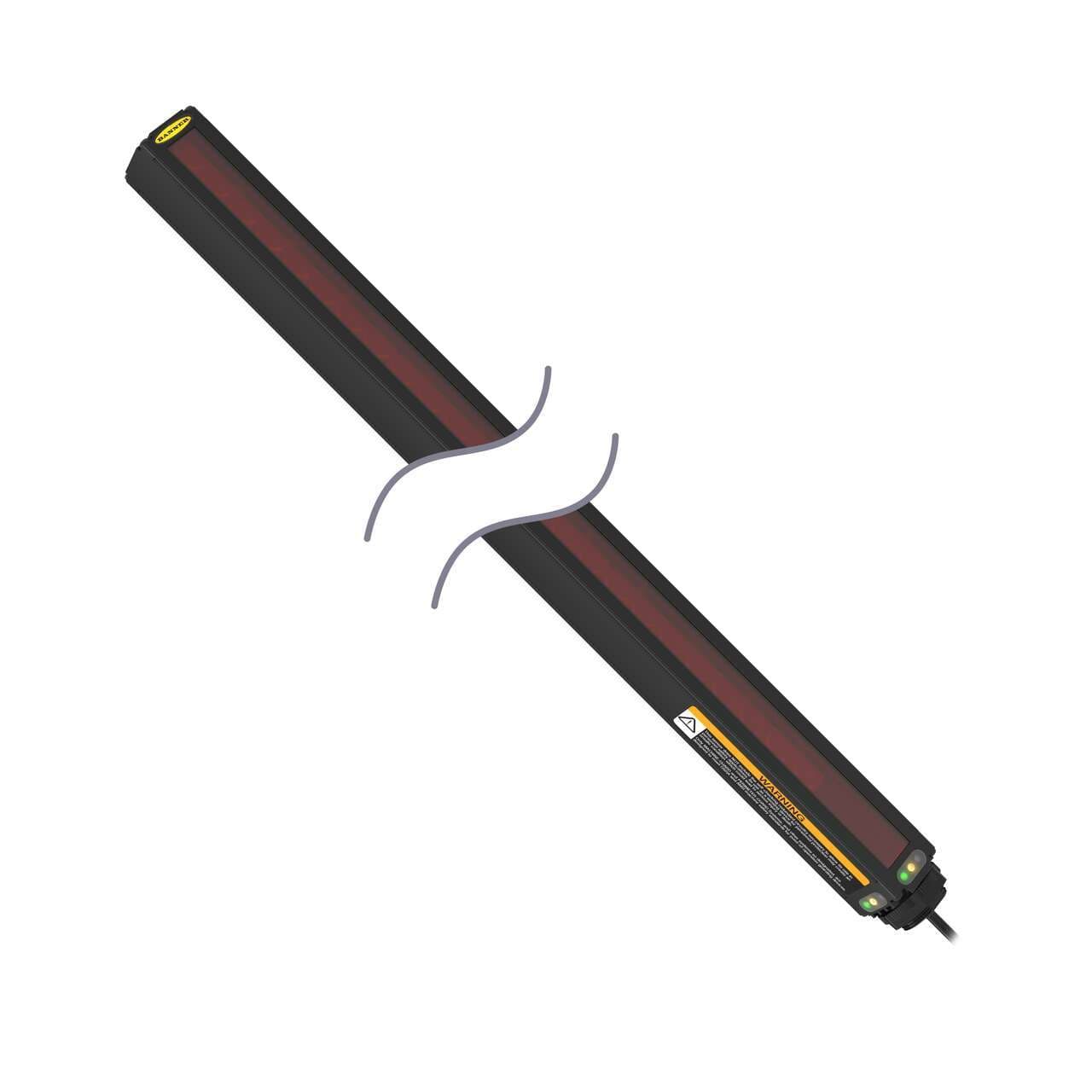

Banner Engineering MAHE58A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array sensor designed for precise detection and measurement tasks. This sensor features an emitter alone with a 1463mm array length housed in a durable aluminum casing. It offers a fine resolution with a 2.5mm beam spacing/pitch, enabling the detection of objects as small as 2.5mm. The MAHE58A is pre-wired with a 6" / 150mm cable that terminates with bare end flying leads, facilitating easy integration into various systems. It operates on a 12Vdc supply voltage and is suitable for use in ambient air temperatures ranging from 0 to +50°C. With a sensing distance between 38cm and 1.8m, this sensor is versatile for a range of applications. It is also designed to withstand harsh environments, boasting an IP65, NEMA 4, and NEMA 13 rating for protection against dust and water ingress.

MAHE58A

Banner Engineering MAHE58A, part of the MINI-ARRAY series, is a high-resolution measuring light screen array sensor designed for precise detection and measurement tasks. This sensor features an emitter alone with a 1463mm array length housed in a durable aluminum casing. It offers a fine resolution with a 2.5mm beam spacing/pitch, enabling the detection of objects as small as 2.5mm. The MAHE58A is pre-wired with a 6" / 150mm cable that terminates with bare end flying leads, facilitating easy integration into various systems. It operates on a 12Vdc supply voltage and is suitable for use in ambient air temperatures ranging from 0 to +50°C. With a sensing distance between 38cm and 1.8m, this sensor is versatile for a range of applications. It is also designed to withstand harsh environments, boasting an IP65, NEMA 4, and NEMA 13 rating for protection against dust and water ingress.

  • Power Supply12V dc
  • Max Relative Humidity95%
  • Emitter/Receiver Range (m)0.38 - 1.8
  • Minimum Object Sensitivity (mm)2.5
  • Discrete OutputN/A
  • Analog OutputN/A
  • Max Temp (°C)50
  • Housing Length (mm)1540
  • Array Length (mm)1463
  • Number of Beams576
  • RS-485No
  • DeviceNetNo
  • RS-232No
  • IO LinkNo
  • Device TypeThree-Piece
  • Modbus RTUNo
  • Beam Spacing2.5 mm
  • Sensing Mode (Detailed)Emitter
  • PowerDC
  • Primary Housing MaterialAluminum
  • Main functionSensor (Edge)
  • Supply voltage (DC)12Vdc
  • Resolution2.5mm
  • Order code / Manufacturer SKU62658
  • Product series / family nameA-GAGE series
  • FunctionsHigh-resolution measuring light screen array emitter red LED (status)
  • Degree of protectionIP65 NEMA 4 NEMA 13
  • MaterialAluminium housing
  • Detectable object size2.5mm
  • Primary brandBanner Engineering
  • Distance2.5mm beam spacing/pitch
  • Dimensions1463mm array length
  • Sub-range nameMINI-ARRAY
  • Connection typePre-wired with 6" / 150mm cable terminated with bare end flying leads
  • Ambient air temperature for operation0...+50 °C
  • Compliant with standard(s)cURus CE
