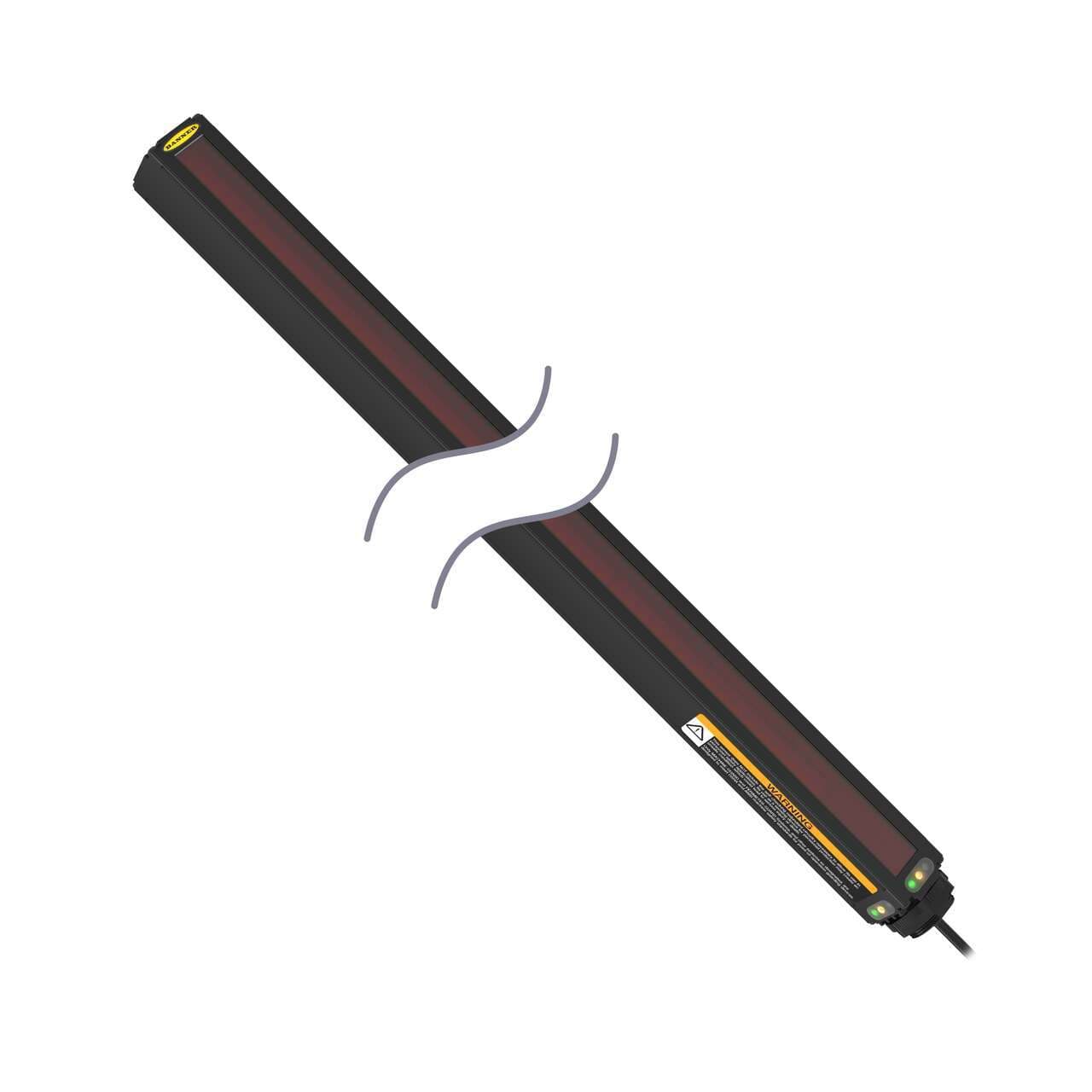

MAE6632Q Banner Measurement Sensors

Name: MAE6632Q
Brand: Banner
Price: 1453 USD
Availability: BackOrder

Part#:MAE6632Q

Alt. Part#:801930

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length 66 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

Weight
2812.2704 g
Country Of Origin
CN
Max Relative Humidity
0.95
Power Supply
16-30V dc
Emitter/Receiver Range (m)
0.6 - 4.6
Discrete Output
N/A
Minimum Object Sensitivity (mm)
12.7-19.1
Min Temp (°C)
-40
Number of Beams
176
Housing Length (mm)
1755
Max Temp (°C)
70
Array Length (mm)
1667
Analog Output
N/A
RS-485
No
Beam Spacing
9.5 mm
Modbus RTU
No
RS-232
No
IO Link
No
DeviceNet
No
Device Type
Two-Piece

Primary Housing Material

Aluminum

Sensing Mode (Detailed)

Emitter

Power

Primary brand

Banner Engineering

Main function

Sensor (Edge)

Resolution

3/8" / 9.5mm

Dimensions

1667mm array length

Order code / Manufacturer SKU

801930

Sub-range name

MINI-ARRAY 2-piece models

Degree of protection

IP65 UL type 1

Ambient air temperature for operation

-40...+70 °C

Functions

Measuring light screen array emitter red LED (status)

Detectable object size

12.7-19.1mm

Product series / family name

A-GAGE series

Supply voltage (DC)

16Vdc-30Vdc (24Vdc nom.)

Compliant with standard(s)

cURus CE

Distance

3/8" / 9.5mm beam spacing/pitch

Connection type

Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector

Material

Aluminium housing PVC connector

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE6632Q on Powermatic Associates is $1,453.00. Order now.

About the product

Banner Engineering MAE6632Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array applications, featuring an emitter alone. This part has a 1667mm array length and is housed in aluminum with a PVC connector, making it suitable for various industrial environments. It has a rectangular shape and offers a 3/8" / 9.5mm beam spacing/pitch. The MAE6632Q is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. It operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage. The ambient air temperature range for operation is between -40 and +70°C. This sensor is rated with a degree of protection of IP65, NEMA 4, NEMA 13, and UL type 1, ensuring durability against environmental factors. It has a sensing distance ranging from 60cm to 4.6m and a resolution of 3/8" / 9.5mm, capable of detecting object sizes between 12.7mm and 19.1mm.
