MAE632Q Banner Measurement Sensors

MAE632Q on Powermatic Associates
Banner

Part#:MAE632Q

Manufacturer:Banner

Alt. Part#:87726

Product Lifecycle:Active

Get a quick Quote!

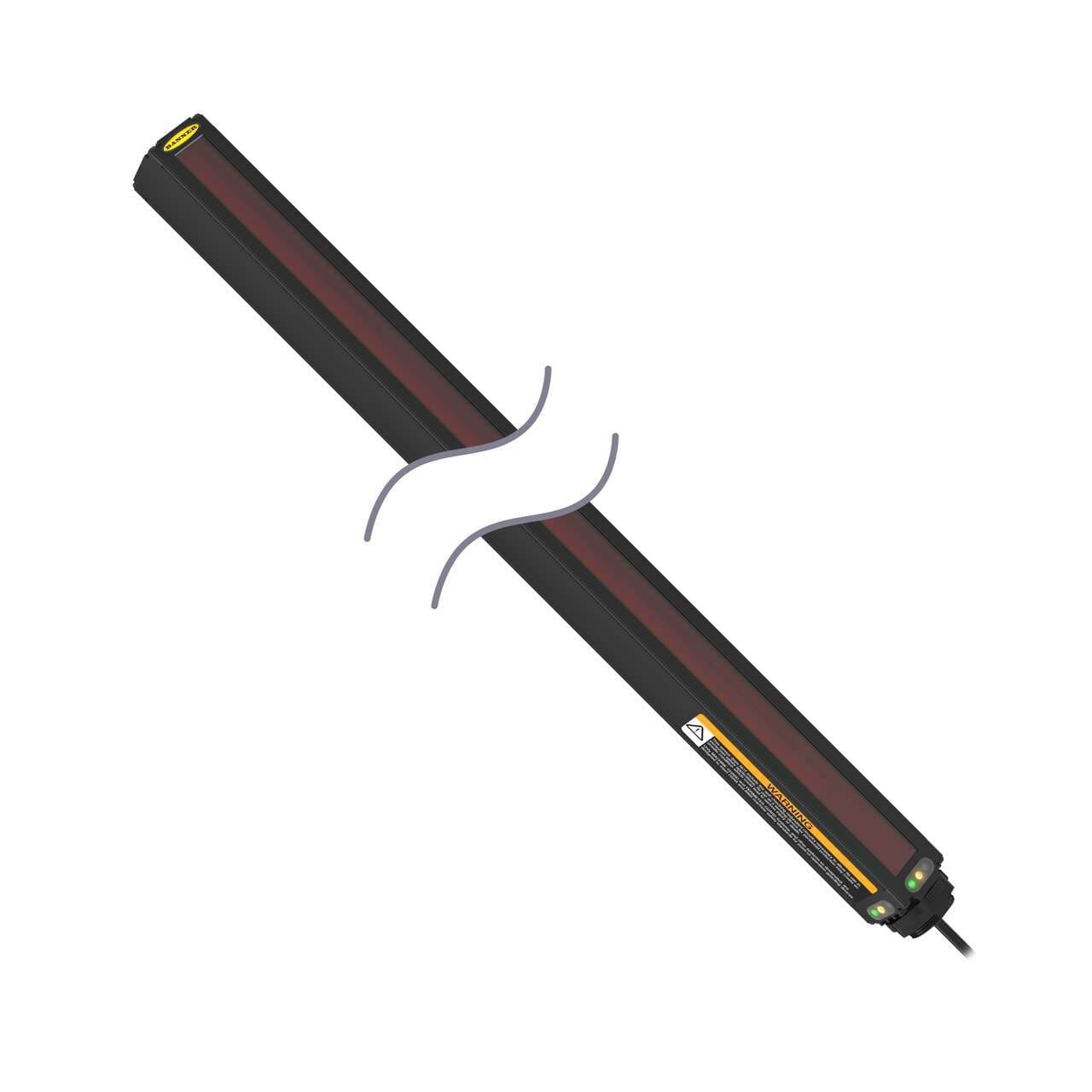

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 6 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Measurement Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MAE632Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    680.388 g
  • Country Of Origin
    CN
  • Power Supply
    16-30V dc
  • Max Relative Humidity
    0.95
  • Emitter/Receiver Range (m)
    0.6 - 6.1
  • Discrete Output
    N/A
  • Minimum Object Sensitivity (mm)
    12.7-19.1
  • Max Temp (°C)
    70
  • RS-485
    No
  • Housing Length (mm)
    231
  • Array Length (mm)
    143
  • Min Temp (°C)
    -40
  • Number of Beams
    16
  • Analog Output
    N/A
  • Device Type
    Two-Piece
  • Modbus RTU
    No
  • RS-232
    No
  • IO Link
    No
  • DeviceNet
    No
  • Beam Spacing
    9.5 mm
  • Primary Housing Material
    Aluminum
  • Sensing Mode (Detailed)
    Emitter
  • Power
    DC
  • Connection type
    Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
  • Degree of protection
    IP65 UL type 1
  • Product series / family name
    A-GAGE series
  • Functions
    Measuring light screen array emitter red LED (status)
  • Dimensions
    143mm array length
  • Compliant with standard(s)
    cURus CE
  • Sub-range name
    MINI-ARRAY 2-piece models
  • Distance
    3/8" / 9.5mm beam spacing/pitch
  • Main function
    Sensor (Edge)
  • Supply voltage (DC)
    16Vdc-30Vdc (24Vdc nom.)
  • Material
    Aluminium housing PVC connector
  • Primary brand
    Banner Engineering
  • Resolution
    3/8" / 9.5mm
  • Order code / Manufacturer SKU
    87726
  • Ambient air temperature for operation
    -40...+70 °C
  • Detectable object size
    12.7-19.1mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

MAE632Q Description

Banner Engineering MAE632Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array functions, specifically as an emitter alone. It features a 143mm array length in a rectangular shape with an aluminium housing and a PVC connector. The sensor has a 3/8" / 9.5mm beam spacing/pitch and is pre-wired with a 6" / 150mm PVC pigtail that terminates with an M12 mini-style connector. It operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage. The MAE632Q can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. Its sensing distance ranges from 60cm to 6.1m, with a resolution of 3/8" / 9.5mm, and it can detect objects sized between 12.7mm and 19.1mm.

Related documents MAE632Q Specs

MAE632Q 196877.pdf
