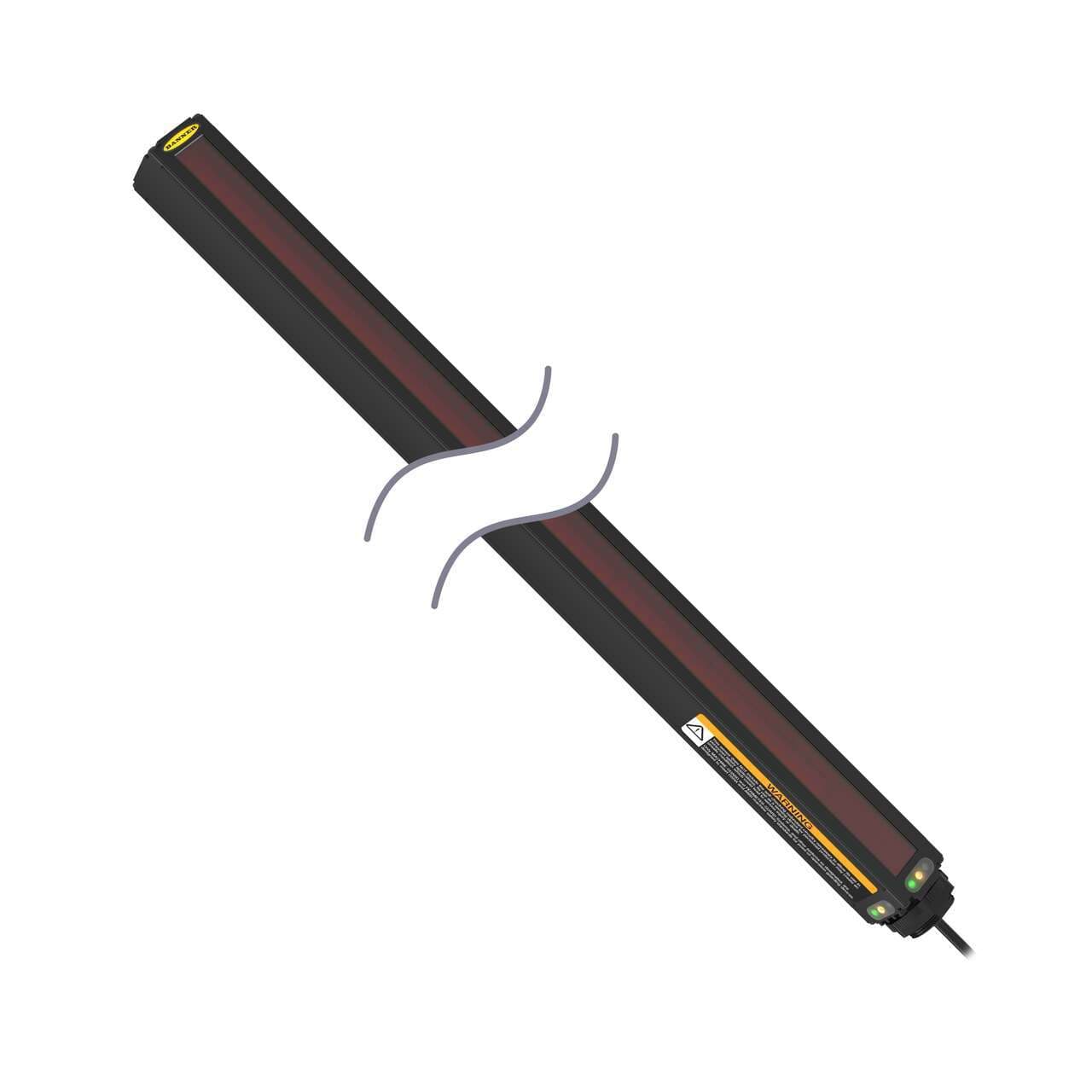

MAE6032Q Banner Measurement Sensors

Name: MAE6032Q
Brand: Banner
Price: 1339 USD
Availability: BackOrder

Part#:MAE6032Q

Alt. Part#:87734

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

2 Piece Mini-Array Series: Emitter 3/8 in Optical Spacing; Range: 20 ft; Sensing Length: 60 in; Input Voltage 16-30 V; Outputs: none; 150 mm (6 in) 8-pin M12 PVC Pigtail QD

Product Details

Weight
2585.4744 g
Country Of Origin
CN
Emitter/Receiver Range (m)
0.6 - 4.6
Power Supply
16-30V dc
Max Relative Humidity
0.95
Max Temp (°C)
70
Minimum Object Sensitivity (mm)
12.7-19.1
Discrete Output
N/A
Array Length (mm)
1514
Min Temp (°C)
-40
Housing Length (mm)
1603
Number of Beams
160
Analog Output
N/A
DeviceNet
No
RS-485
No
RS-232
No
Modbus RTU
No
IO Link
No
Device Type
Two-Piece
Beam Spacing
9.5 mm

Primary Housing Material

Aluminum

Sensing Mode (Detailed)

Emitter

Power

Sub-range name

MINI-ARRAY 2-piece models

Ambient air temperature for operation

-40...+70 °C

Main function

Sensor (Edge)

Supply voltage (DC)

16Vdc-30Vdc (24Vdc nom.)

Degree of protection

IP65 UL type 1

Primary brand

Banner Engineering

Distance

3/8" / 9.5mm beam spacing/pitch

Resolution

3/8" / 9.5mm

Compliant with standard(s)

cURus CE

Material

Aluminium housing PVC connector

Product series / family name

A-GAGE series

Connection type

Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector

Functions

Measuring light screen array emitter red LED (status)

Detectable object size

12.7-19.1mm

Dimensions

1514mm array length

Order code / Manufacturer SKU

87734

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE6032Q on Powermatic Associates is $1,339.00. Order now.

About the product

Banner Engineering MAE6032Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array applications, functioning as an emitter alone. This part features a 1514mm array length with a rectangular shape and is constructed with an aluminium housing and a PVC connector. It has a 3/8" / 9.5mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. The MAE6032Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc as the nominal voltage. It is designed to function within an ambient air temperature range of -40 to +70°C. This sensor offers a degree of protection rated at IP65, NEMA 4, NEMA 13, and UL type 1. It has a sensing distance ranging from 60cm to 4.6m and a resolution of 3/8" / 9.5mm, capable of detecting object sizes between 12.7mm and 19.1mm.
