MAE616Q Banner Measurement Sensors

MAE616Q on Powermatic Associates
Banner

Part#:MAE616Q

Alt. Part#:72190

Manufacturer:Banner

Category:Measurement Sensors

Product Lifecycle:Active

Product description

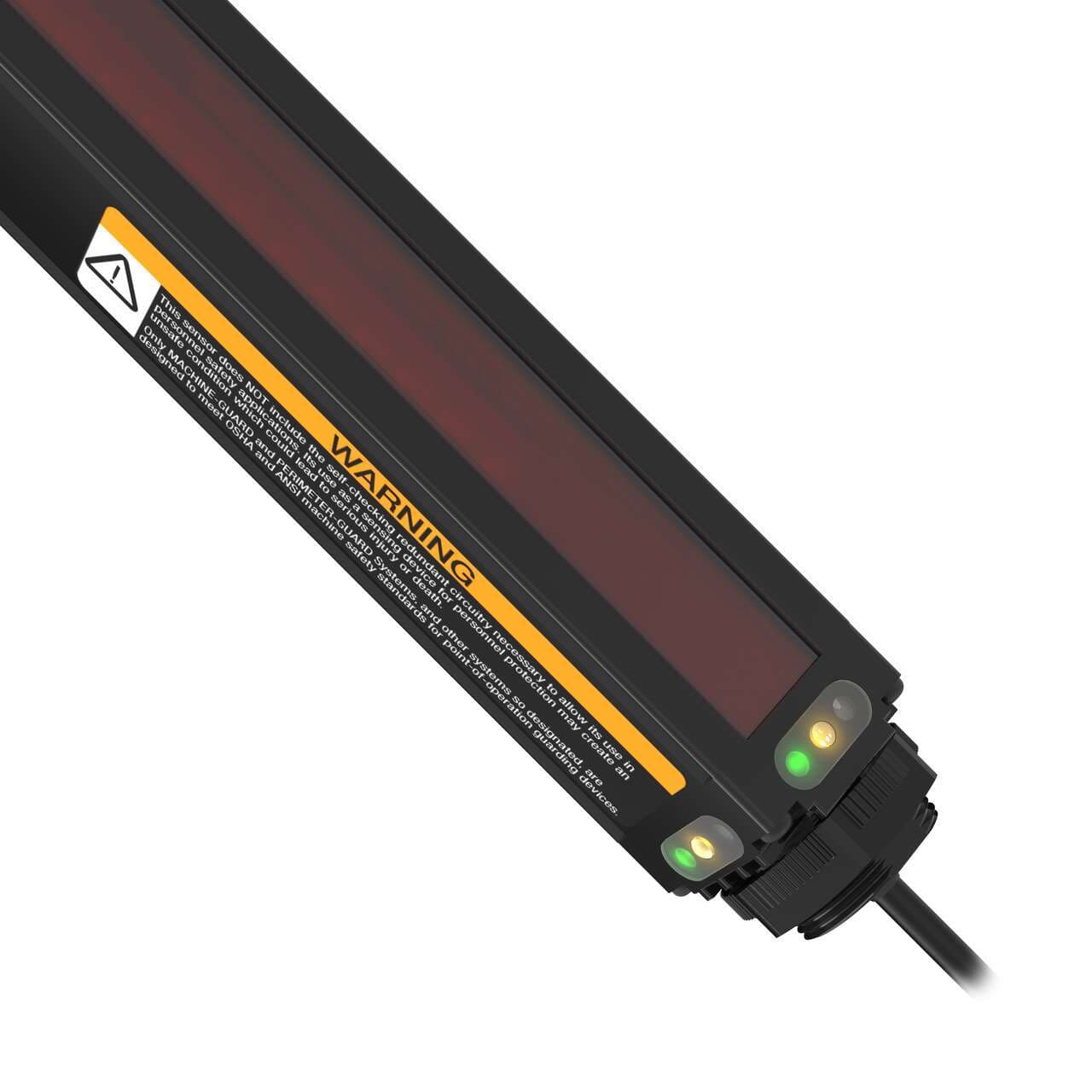

MAE616Q 16CH 2-STICK MA EMITTER

Product Details

  • Weight
    716.67536 g
  • Country Of Origin
    MX
  • Max Relative Humidity
    95%
  • Power Supply
    16-30V dc
  • Emitter/Receiver Range (m)
    0.9 - 16.5
  • Minimum Object Sensitivity (mm)
    25.4-38.1
  • Discrete Output
    N/A
  • Max Temp (°C)
    70
  • Min Temp (°C)
    -40
  • Array Length (mm)
    143
  • Housing Length (mm)
    231
  • Number of Beams
    8
  • RS-485
    No
  • Analog Output
    N/A
  • RS-232
    No
  • Beam Spacing
    19 mm
  • IO Link
    No
  • Modbus RTU
    No
  • Primary Housing Material
    Aluminum
  • DeviceNet
    No
  • Device Type
    Two-Piece
  • Sensing Mode (Detailed)
    Emitter
  • Power
    DC
  • Main function
    Sensor (Edge)
  • Sub-range name
    MINI-ARRAY 2-piece models
  • Resolution
    3/4" / 19mm
  • Product series / family name
    A-GAGE series
  • Connection type
    Pre-wired with 6" / 150mm PVC pigtal terminated with M12 Mini-style connector
  • Degree of protection
    IP65 UL type 1
  • Ambient air temperature for operation
    -40...+70 °C
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    16Vdc-30Vdc (24Vdc nom.)
  • Dimensions
    143mm array length
  • Order code / Manufacturer SKU
    72190
  • Distance
    3/4" / 19mm beam spacing/pitch
  • Detectable object size
    25.4-38.1mm
  • Functions
    Measuring light screen array emitter red LED (status)
  • Material
    Aluminium housing PVC connector

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MAE616Q on Powermatic Associates is $436.00. Order now.

About the product

Banner Engineering MAE616Q is a sensor from the MINI-ARRAY 2-piece models series designed for measuring light screen array functions, specifically as an emitter alone. This part features a 143mm array length in a rectangular shape with an aluminium housing and a PVC connector. It has a 3/4" / 19mm beam spacing/pitch and comes pre-wired with a 6" / 150mm PVC pigtail terminated with an M12 mini-style connector. The MAE616Q operates on a supply voltage of 16Vdc-30Vdc, with 24Vdc nominal, and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP65 UL type 1 and is capable of sensing distances from 90cm to 16.5m. With a resolution of 3/4" / 19mm, it can detect object sizes between 25.4mm and 38.1mm.
