Part#:M18XRXPQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

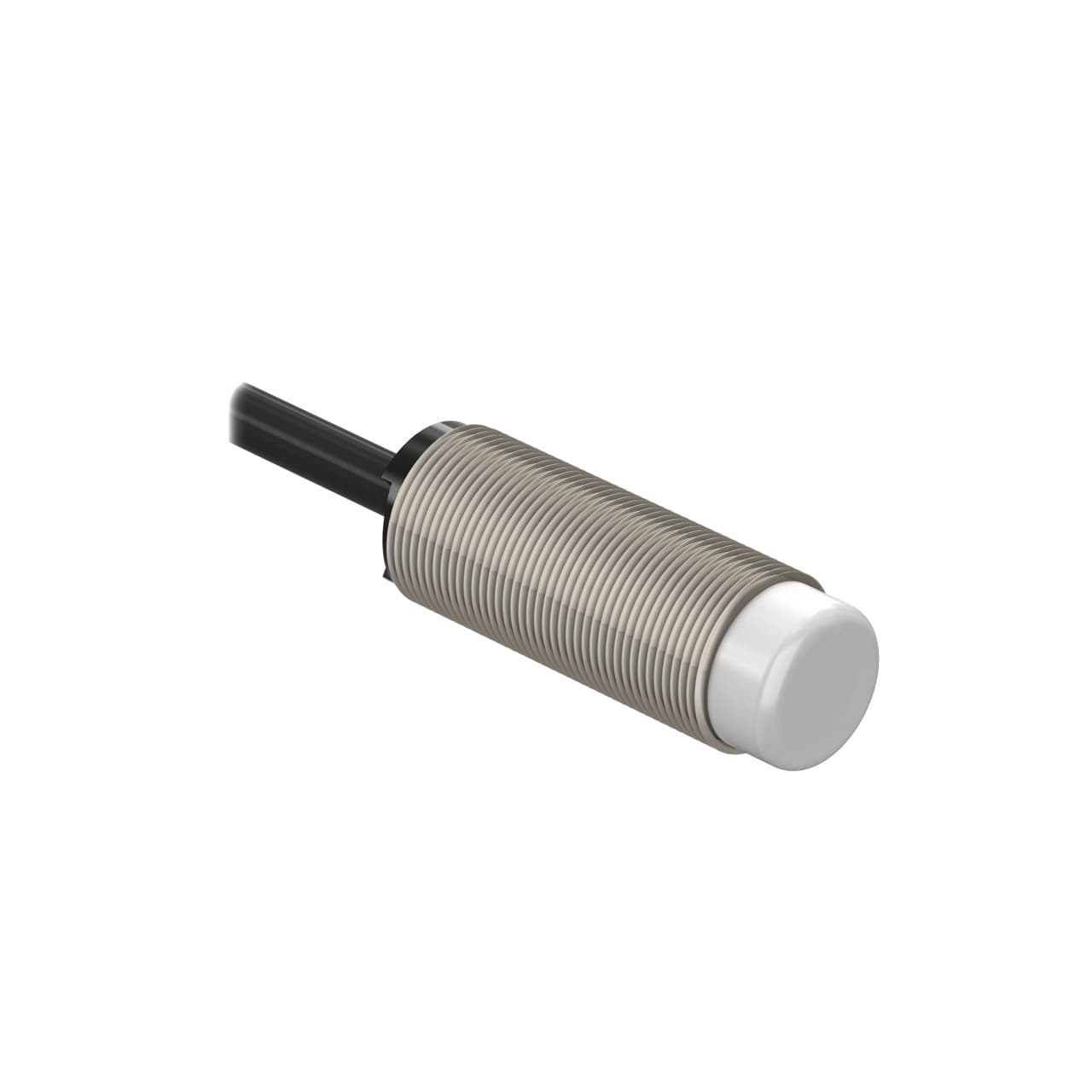

M18 Series EZ-LIGHT: 1-Color General Purpose Indic, Voltage: 10-30V dc; Housing: Nickel-plated brass;, Input: PNP; Colors: Red, 150 mm (6 in) PVC Pigtail

Product Details

  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Primary Window Material
    Thermoplastic Diffused
  • Multi-Color Device
    Single Color On
  • Physical Dimensions (LxWxH or DxH mm)
    16.5 x 51.5
  • Max Input Response Time (ms)
    1
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67
  • Number of Input Pins/Conductors
    4
  • Input Type
    PNP
  • Product Size (mm)
    18
  • Color Technology
    Standard LED
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    25
  • Supply Voltage
    10-30 V dc
  • Color Option 2
    Red
  • Connection
    Pigtail QD
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M18 x 1.0
  • Number of Colors / Segments
    1
  • Indication
    Yes
  • Housing Style
    Barrel Mount - Flat Window
  • Primary Housing Material
    Nickel-Plated Brass
  • Power Source
    DC
  • Power
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
