M18SP6LP W/30 Banner Retroreflective Sensors

M18SP6LP W/30 on Powermatic Associates
Banner

Part#:M18SP6LP W/30

Manufacturer:Banner

Alt. Part#:50477

Product Lifecycle:Active

Get a quick Quote!

EZ-BEAM M18 Series: Polarized Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary PNP; 9 m (30 ft) Cable

About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18SP6LP W/30 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    635.0288 g
  • Country Of Origin
    MX
  • Opposed Mode Emitter/Receiver
    N/A
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    Yes
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Encapsulated
    Yes
  • Feature: Washdown Rated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Adjustments
    N/A
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP69
  • Number of Pins
    4
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    750
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Connection
    Cable
  • Min Op. Temp. (°C)
    -40
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    3
  • Quick Disconnect Type
    No QD
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Mode (Detailed)
    Polarized
  • Outputs
    PNP
  • Housing Style
    Barrel
  • Power
    DC
  • Max Sensing Distance (mm)
    2000
  • Primary Housing Material
    Stainless Steel
  • Input/Output
    Discrete
  • Sensing Beam
    Visible Red LED
  • Sensing Mode (General)
    Retroreflective
  • Cable Length (m)
    9

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18SP6LP W/30 Description

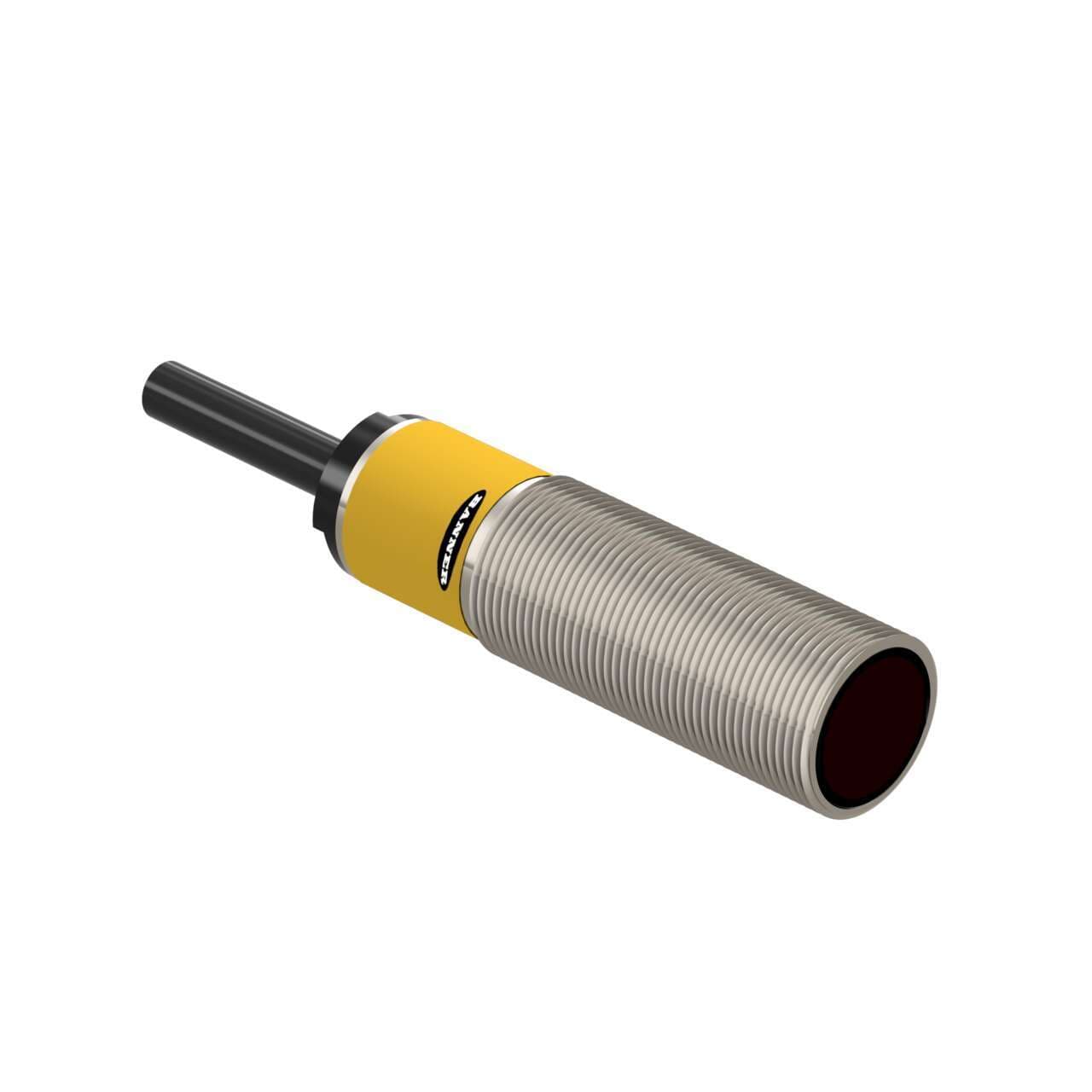

Banner Engineering M18SP6LP W/30 is a polarized photo-electric sensor from the M18 series designed in a retro-reflective mode with visible red light. This sensor features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It is pre-wired with a 30ft / 9m cable terminated with bare end flying leads for connectivity. The sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70 °C. It offers a degree of protection rated at IP69K NEMA 6P, ensuring durability in harsh environments. The operating modes include Light-ON and Dark-ON, with a thread size of M18 and a sensing distance of up to 2m. It also features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 3ms / 0.003 s.

Related documents M18SP6LP W/30 Specs

M18SP6LP W/30 49201.pdf
