M18-3VNFF50-Q8 Banner Proximity Sensors

M18-3VNFF50-Q8 on Powermatic Associates
Banner

Part#:M18-3VNFF50-Q8

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:800543

Product Lifecycle:Active

Get a quick Quote!

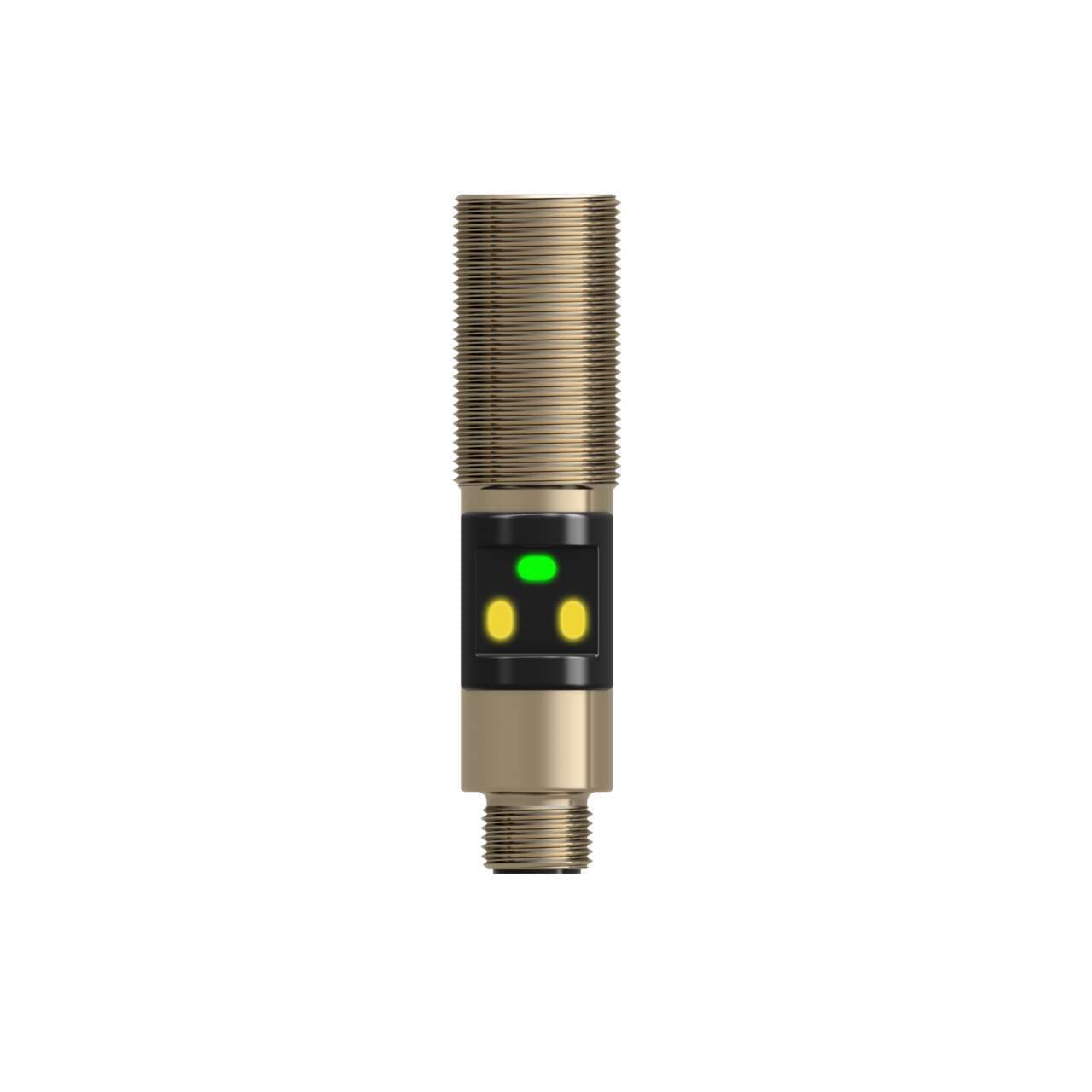

M18-3 Series: Nickel-Plated Brass: Fixed Field; Range: 50 mm; Input 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the M18-3VNFF50-Q8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    CN
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Product series / family name
    M18 barrel series
  • Wavelength
    624 nm
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Degree of protection
    IP67 IP69K
  • Order code / Manufacturer SKU
    800543
  • Feature: Audible
    No
  • Feature: Encapsulated
    No
  • DeviceNet
    No
  • Feature: Timing (Hold/Delay)
    No
  • Adjustments
    N/A
  • Feature: Washdown Rated
    Yes
  • Opposed Mode Emitter/Receiver
    N/A
  • Indicator
    LEDs
  • Barrel Diameter (mm)
    18
  • Lens Material
    Acrylic
  • IP Rating
    IP67, IP69
  • Special Feature: Water Detection
    No
  • Delay at Power-up (ms)
    100
  • NEMA Rating
    N/A
  • Number of Pins
    4
  • Repeatability (µs)
    100
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Output response time (ms)
    1.5
  • Sensing Beam Wavelength
    624
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Power Supply/Supply Voltage
    10-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Intrinsically Safe
    No
  • Max Op. Temp. (°C)
    70
  • Connection
    Integral QD
  • Outputs
    NPN
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    50
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Housing Style
    Barrel
  • Small Visible Spot
    LED
  • Primary Housing Material
    Nickel-Plated Brass
  • Sensing Mode (General)
    Proximity
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    50mm
  • Response time
    1.5ms / 0.0015 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Thread size
    M18
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    M18-3 (nickel-plated brass)
  • Light Color
    Visible red
  • Digital outputs
    1 x digital output (NPN transistor)
  • Shape
    Cylindrical threaded/barrel
  • Design
    background / foreground suppression system
  • Equivalent to
    M183VNFF50Q8
  • Operating mode
    Light-ON Dark-ON
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
  • Material
    Nickel-plated brass housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

M18-3VNFF50-Q8 Description

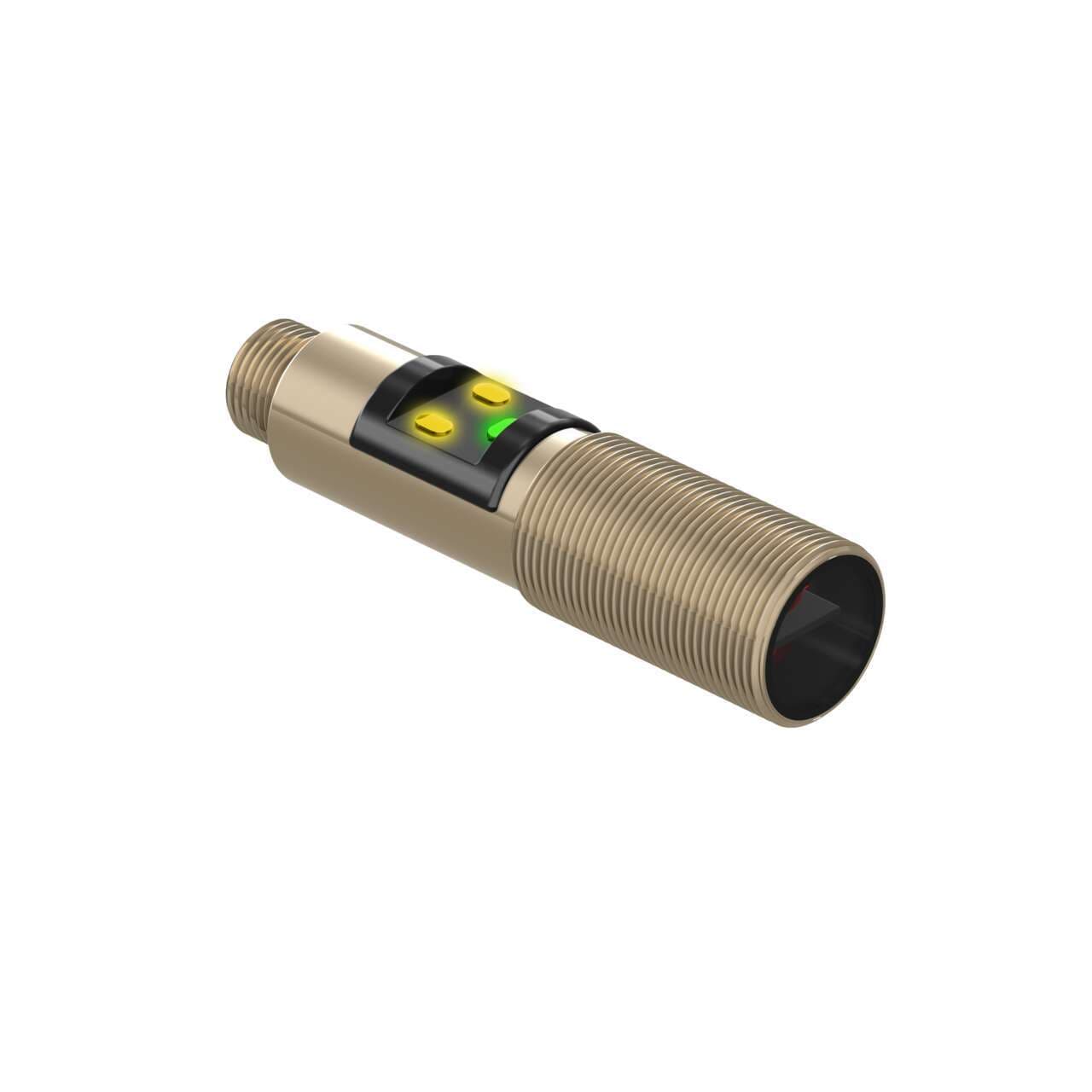

Banner Engineering M18-3VNFF50-Q8 is a fixed-field photo-electric sensor from the M18-3 (Nickel-plated brass) series, designed with a background/foreground suppression system. It features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70 °C. The M18-3VNFF50-Q8 offers a sensing distance of 50mm and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s. It supports both Light-ON and Dark-ON operating modes and is protected to IP67 and IP69K degrees of protection, ensuring its operation in various environmental conditions.

Related documents M18-3VNFF50-Q8 Specs

M18-3VNFF50-Q8 185178.pdf
