K70DXN9T2GRYQ Banner Pick-to-Light Sensors

K70DXN9T2GRYQ on Powermatic Associates
Banner
  • K70DXN9T2GRYQ
  • K70DXN9T2GRYQ

Part#:K70DXN9T2GRYQ

Alt. Part#:96943

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

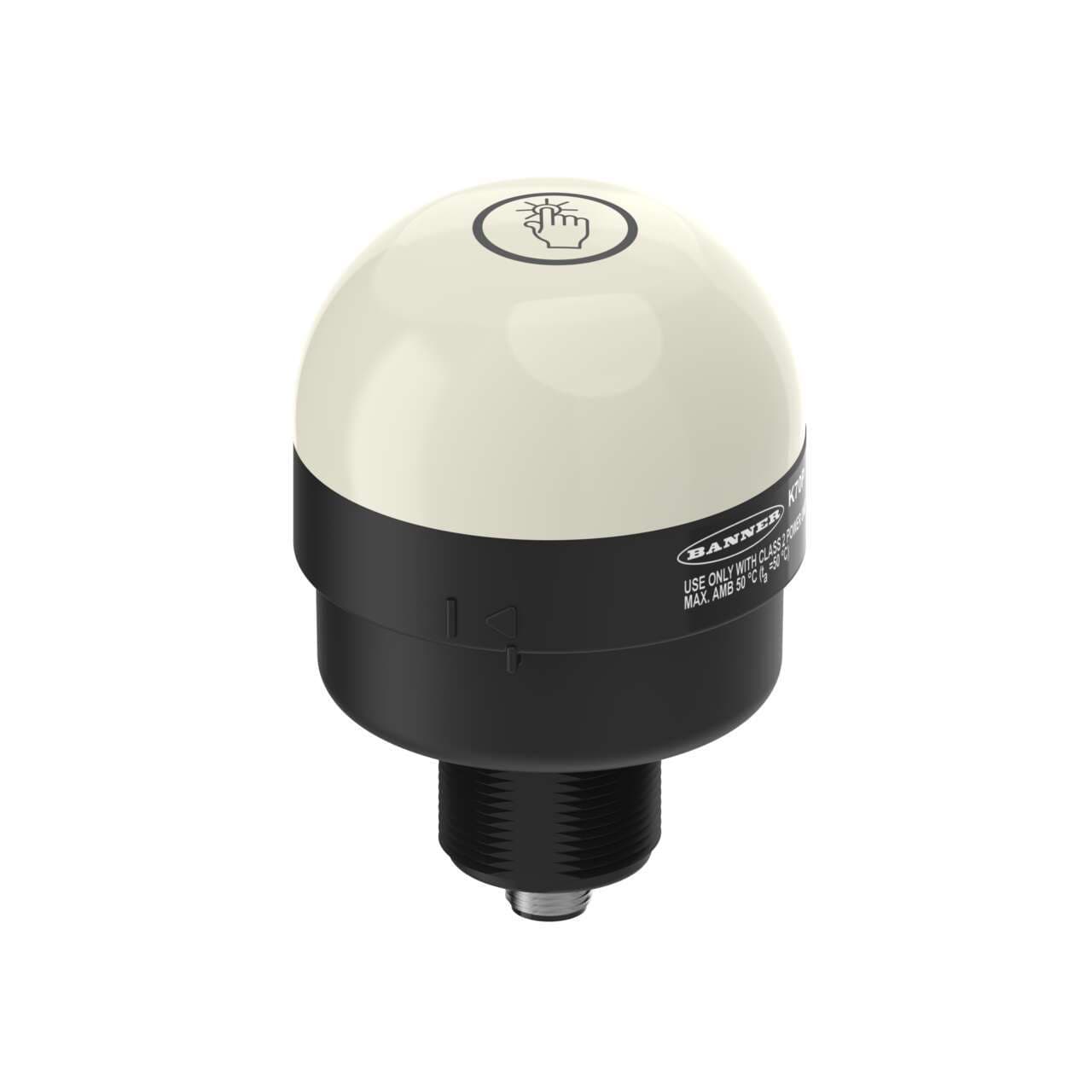

K70 Wireless Touch Sensor Gen 2, 900 MHz, Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Colors: Green Red Yellow; 5-pin M12 Integral QD

Product Details

  • Weight
    217.72416 g
  • Country Of Origin
    US
  • Feature: Quick Disconnect
    Yes
  • Wireless Network
    Node
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    No
  • Multi-Color Device
    Single Color On
  • Feature: Hazardous Area
    No
  • Button Operation
    Momentary
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 103.5
  • Input Type
    Communication Protocol
  • Max Input Response Time (ms)
    180
  • Output Type
    Communication Protocol
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Lumens Color 3
    13.0
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    260
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Color Option 3
    Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 2
    Red
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    45.0
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    70
  • Number of Colors / Segments
    3
  • Mounting Thread
    M30 x 1.5
  • Cable Length (m)
    0.15
  • Actuation
    Yes
  • Power
    DC
  • Primary Housing Material
    Polycarbonate
  • Activation Function
    Capacitive Touch
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Housing Style
    Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70DXN9T2GRYQ on Powermatic Associates is $349.00. Order now.

About the product

Banner Engineering K70DXN9T2GRYQ is a touch-button part of the SureCross series, designed for wireless operation at 900MHz. This battery-powered, illuminated capacitive touch-sensitive button features a 4-color G/R/Y/B color pattern and SureCross wireless architecture with LED illumination. It has a black housing made from polycarbonate (PC) with a dome window shape. The supply voltage required is 3.6Vdc, and it offers two mounting modes: surface or base flush, suitable for a 30mm hole. The button has a diameter of 70mm or approximately 2-3/4 inches. It is designed to operate within an ambient air temperature range of -40°C to +50°C and has an IP65 degree of protection. The operating mode can be set to either momentary or latched.
