K70DXN9GYRQ Banner Pick-to-Light Sensors

K70DXN9GYRQ on Powermatic Associates
Banner

Part#:K70DXN9GYRQ

Alt. Part#:97897

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

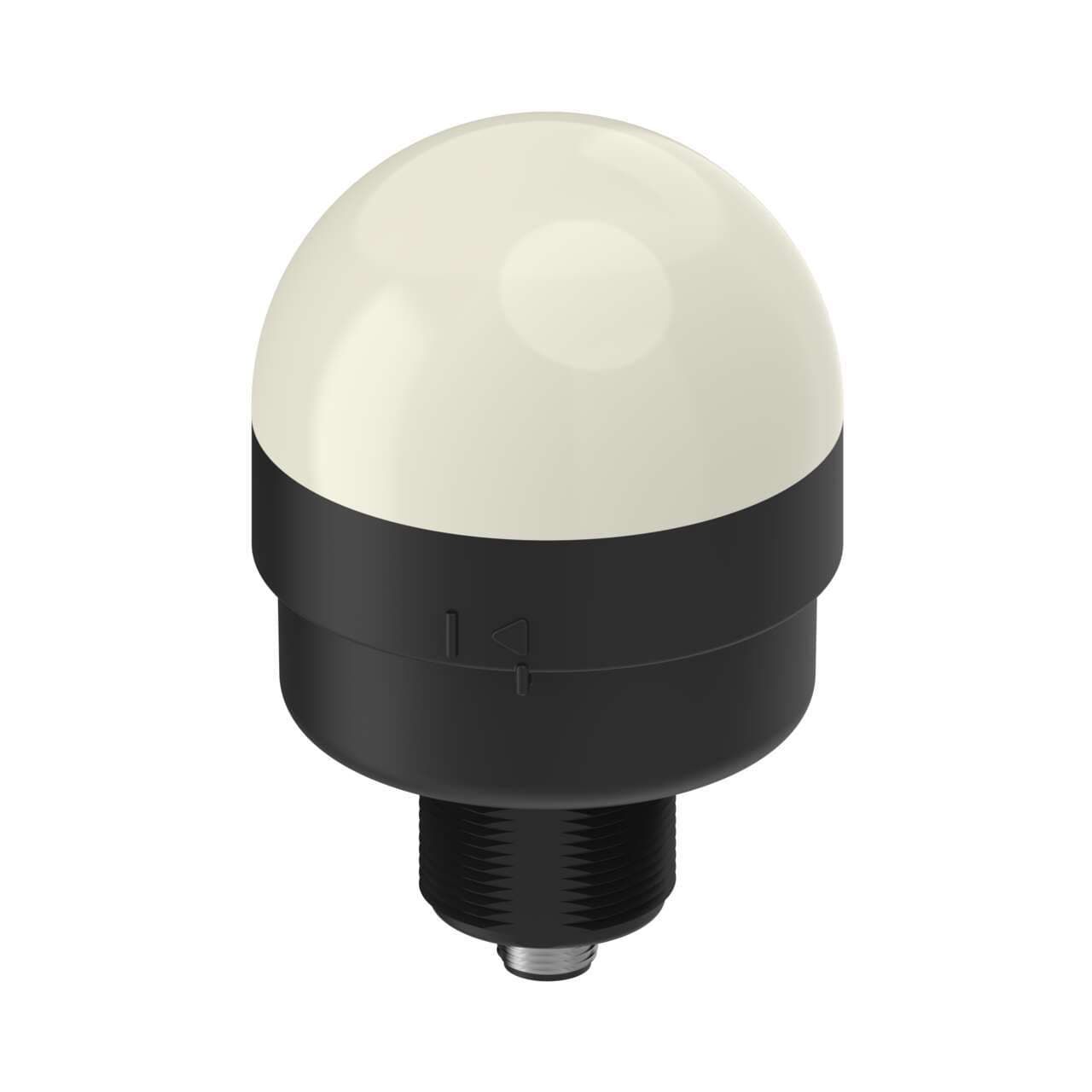

K70 Wireless Indicator, 900 MHz; 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Colors: Green Yellow Red; 5-pin M12 Integral QD

Product Details

  • Weight
    195.04456 g
  • Country Of Origin
    US
  • Wireless Network
    Node
  • Modbus RTU
    No
  • Feature: Hazardous Area
    No
  • Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    22.0
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless Radio Frequency
    900 MHz
  • Wireless
    Yes
  • Multi-Color Device
    Single Color On
  • IO Link
    No
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 107.5
  • Input Type
    PNP or Communication Protocol
  • Number of Input Pins/Conductors
    5
  • Supply Voltage
    12-30 V dc
  • Max Input Response Time (ms)
    180
  • Max Current Color (mA)
    200
  • Lumens Color 3
    34.0
  • Color Option 3
    Red
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Color 2 - Wavelength/Color Temp/Coordinates
    590 nm
  • Lumens Color 1
    65.0
  • Color Option 2
    Yellow
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Connection
    Integral QD
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Power Source
    DC
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    70
  • Number of Colors / Segments
    3
  • Power
    DC
  • Indication
    Yes
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70DXN9GYRQ on Powermatic Associates is $279.00. Order now.

About the product

Banner Engineering K70DXN9GYRQ is a pilot light from the EZ-LIGHT SureCross series, featuring a SureCross Wireless (900MHz) functionality. It is designed with a 2-color G/R color pattern and utilizes LED illumination within a black housing. The shape of the light is a dome window, constructed from polycarbonate (PC) for both the diffused window and the base. It connects via a pre-wired 6" / 15cm PUR pigtail that terminates with a 5-pin M12 Euro-style QD connector. The supply voltage required for operation ranges from 12Vdc to 30Vdc, with a nominal 24Vdc. For mounting, it supports surface or base flush options with a 30mm hole and M30 thread. The dome diameter measures 70mm / 2-3/4". This part is designed to operate within an ambient air temperature range of -40°C to +50°C and is rated with a degree of protection of IP65.
