K70DXN9T2GRYBX-B Banner Pick-to-Light Sensors

K70DXN9T2GRYBX-B on Powermatic Associates
Banner
  • K70DXN9T2GRYBX-B
  • K70DXN9T2GRYBX-B

Part#:K70DXN9T2GRYBX-B

Alt. Part#:811407

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

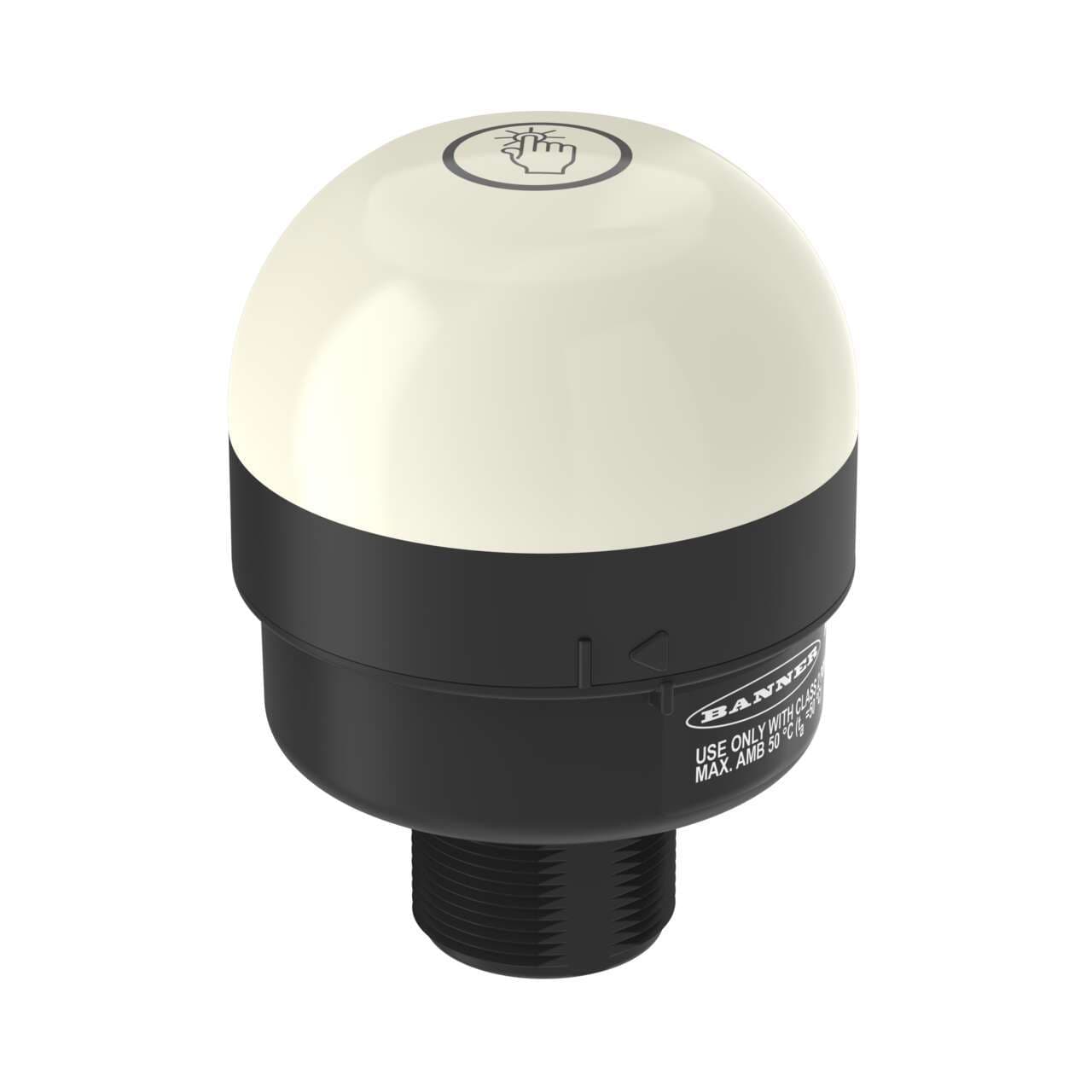

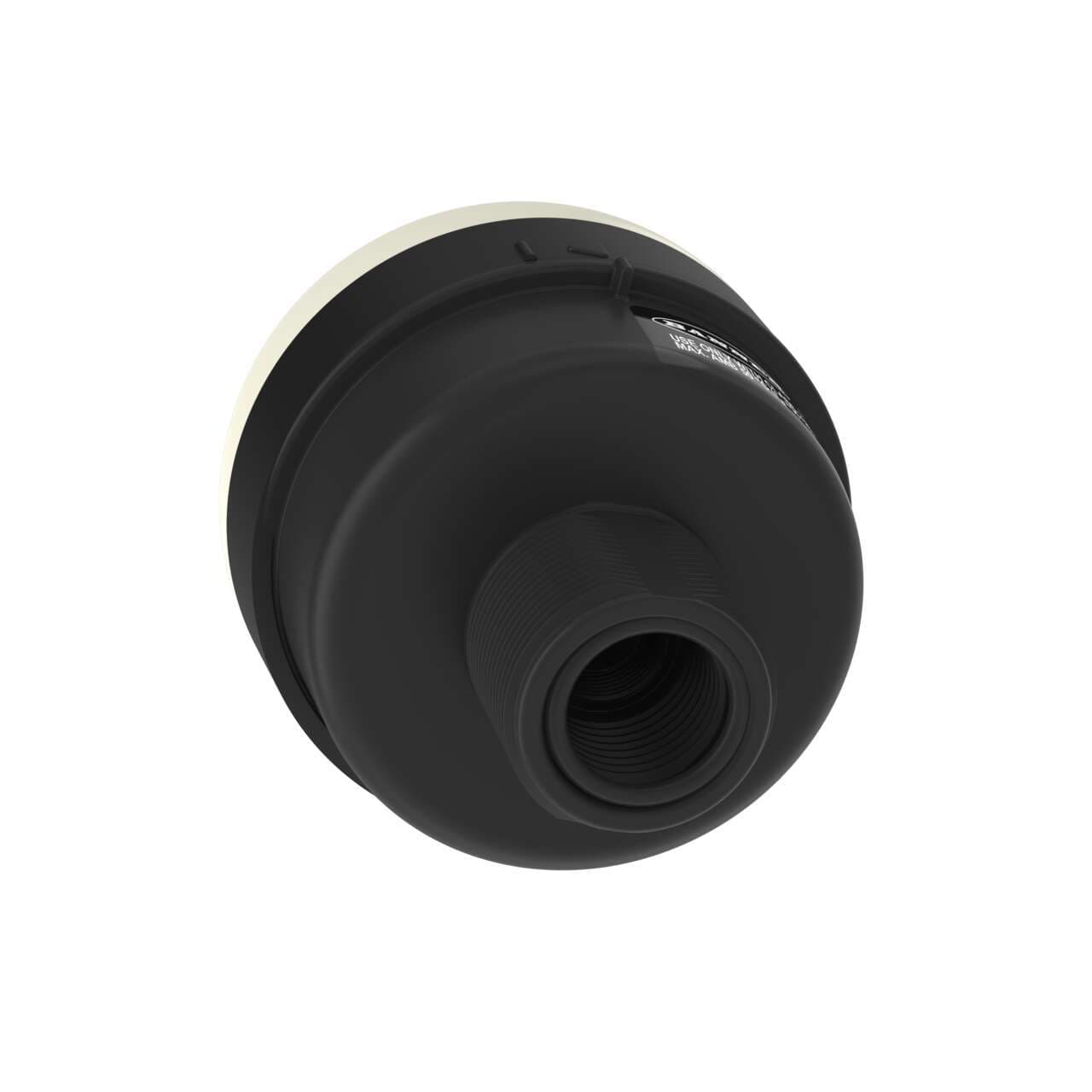

K70 Wireless Touch Sensor, 900 MHz, Black Housing: 4-Color Indicator; C-Cell Battery; Environmental Rating: IP65; Colors: Green Red Yellow Blue

Product Details

  • Weight
    254.01152 g
  • Country Of Origin
    US
  • Wireless Network
    Node
  • Wireless Radio Frequency
    900 MHz
  • Pro-Editor Compatible (Discrete)
    No
  • Feature: Chemical Resistant
    No
  • Feature: Quick Disconnect
    No
  • Multi-Color Device
    Simultaneous Colors On
  • Min Op. Temperature (°C)
    -40
  • Feature: Hazardous Area
    No
  • Button Operation
    Momentary and Latching
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Environmental Rating
    IP65
  • Output Type
    Communication Protocol
  • Wireless
    Yes
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Audible
    No
  • Max Op. Temperature (°C)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 95.5
  • Max Input Response Time (ms)
    180
  • Primary Housing Color
    Black
  • Color Option 3
    Yellow
  • Color Option 2
    Red
  • Color Option 4
    Blue
  • Input Type
    Communication Protocol
  • Product Size (mm)
    70
  • Color Technology
    Standard LED
  • Color Input Control
    Communication Protocol
  • Supply Voltage
    3.6 V dc
  • Mounting Thread
    M30 x 1.5
  • Animation Option 1
    Flashing Only
  • Operation
    Normally Open
  • Actuation
    Yes
  • Number of Colors / Segments
    4
  • Color Option 1
    Green
  • Housing Style
    Base Mount - Dome Window
  • Activation Function
    Capacitive Touch
  • Primary Housing Material
    Polycarbonate
  • Ships with Battery
    Yes
  • Power Source
    Battery
  • Power
    Battery

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70DXN9T2GRYBX-B on Powermatic Associates is $279.00. Order now.

About the product

Banner Engineering K70DXN9T2GRYBX-B is a touch-button from the EZ-LIGHT SureCross series, featuring a SureCross Wireless (900MHz) illuminated capacitive touch-sensitive button. This Gen.2 device showcases a 3-color G/R/Y color pattern with SureCross wireless architecture and LED illumination. It comes in a black housing with a dome-shaped window, constructed from polycarbonate (PC) for both the diffused window and the base. The part is designed for easy installation, pre-equipped with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted on the surface or base flush within a 30mm hole. The diameter of the dome is 70mm / 2-3/4". It is built to function in ambient air temperatures ranging from -40°C to +50°C and is rated at an IP65 degree of protection. The operating modes available are momentary or latched, with a current consumption of 260mA and a frequency of 900MHz.

K70DXN9T2GRYBX-B Related Documents

221759.pdf
