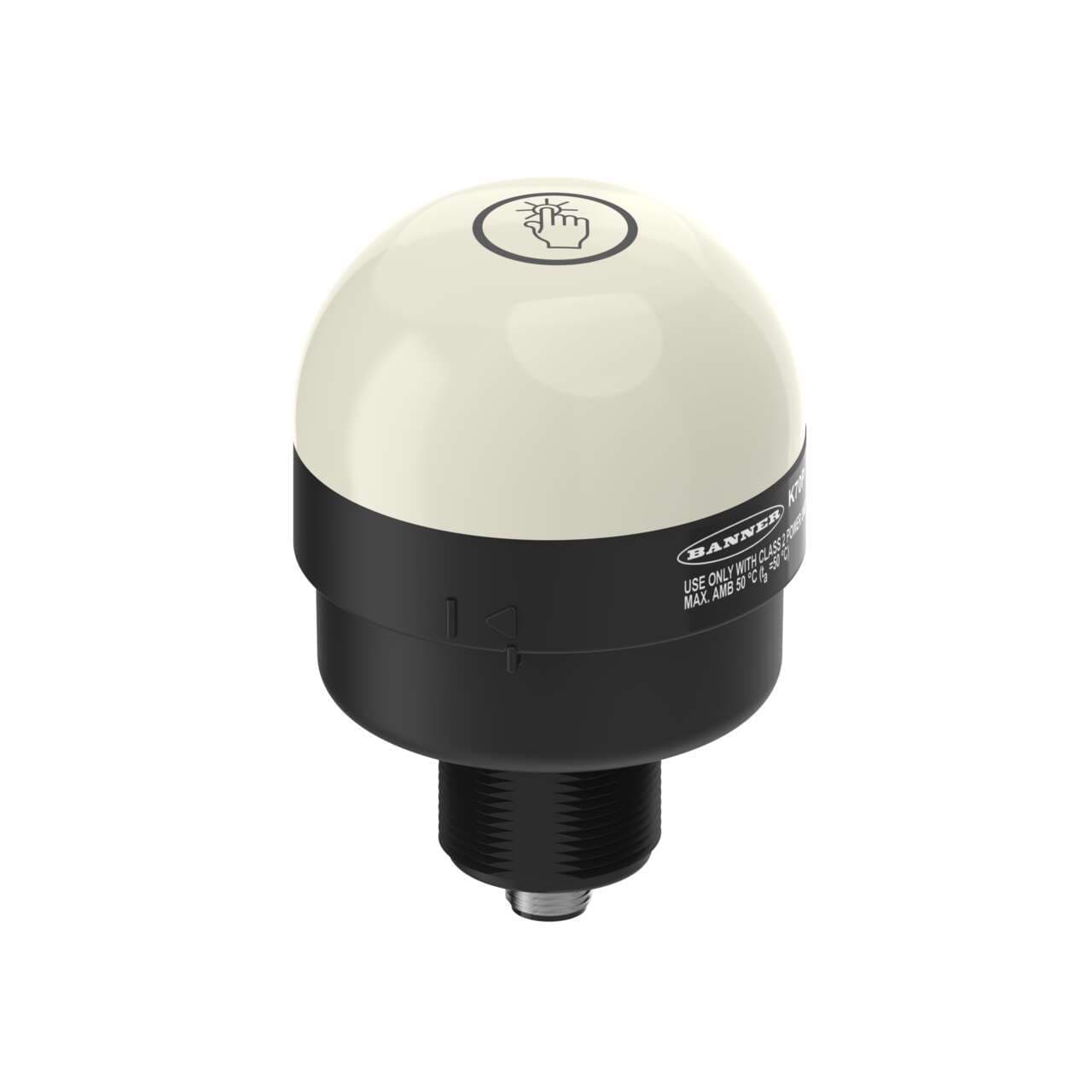

K70APT2GRYC4Q Banner Pick-to-Light Sensors
Part#:K70APT2GRYC4Q
Alt. Part#:96841
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K70 Series EZ-LIGHT: 3-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP65; Input: PNP (NO); Colors: Green Red Yellow; M12 Integral QD
Product Details
- Weight 199.58048 g
- Country Of Origin US
- Feature: Quick Disconnect Yes
- Job Light Green
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Modbus RTU No
- IO Link No
- Wireless No
- Feature: Chemical Resistant No
- Feature: Audible No
- Feature: Hazardous Area No
- Min Op. Temperature (°C) -40
- Primary Housing Color Black
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Max Op. Temperature (°C) 50
- Environmental Rating IP65
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 103.5
- Max Output Response Time (ms) 50
- Input Type PNP
- Output Type PNP
- Operation Normally Open
- Supply Voltage 12-30 V dc
- Pick-to-Light Function C4
- Number of Input Pins/Conductors 5
- Acknowledge (Sense) Light Red
- Mis-Pick Light Yellow
- Max Current Color (mA) 220
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Lumens Color 3 13.0
- Color Option 3 Yellow
- Color Option 2 Red
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Animation Option 1 Solid On
- Color Option 1 Green
- Lumens Color 1 45.0
- Mounting Thread M30 x 1.5
- Housing Style Base Mount - Dome Window
- Number of Colors / Segments 3
- Color Technology Standard LED
- Product Size (mm) 70
- Power DC
- Activation Function Capacitive Touch
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Actuation Yes
- Primary Housing Material Polycarbonate
- Power Source DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70APT2GRYC4Q on Powermatic Associates is $216.00. Order now.
About the product
Banner Engineering K70APT2GRYC4Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity and operates within a supply voltage range of 12Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options, including surface or base flush mounting through a 30mm hole, and has a diameter of 70mm / 2-3/4" for the dome. The K70APT2GRYC4Q operates efficiently in ambient air temperatures ranging from -40°C to +50°C and is rated IP65 for protection against dust and water ingress. Its operating mode includes a momentary job light (G; Green) that activates when the job input is active, touch activation for output and sensing light (Y; Yellow), and a mispick indication through a light (R; Red) and output NO (Normally Open) touch output when touched with an inactive job input. The device has a current consumption of 220mA and includes 1 x digital input (12-30Vdc; PNP) for JOB color control, along with 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
