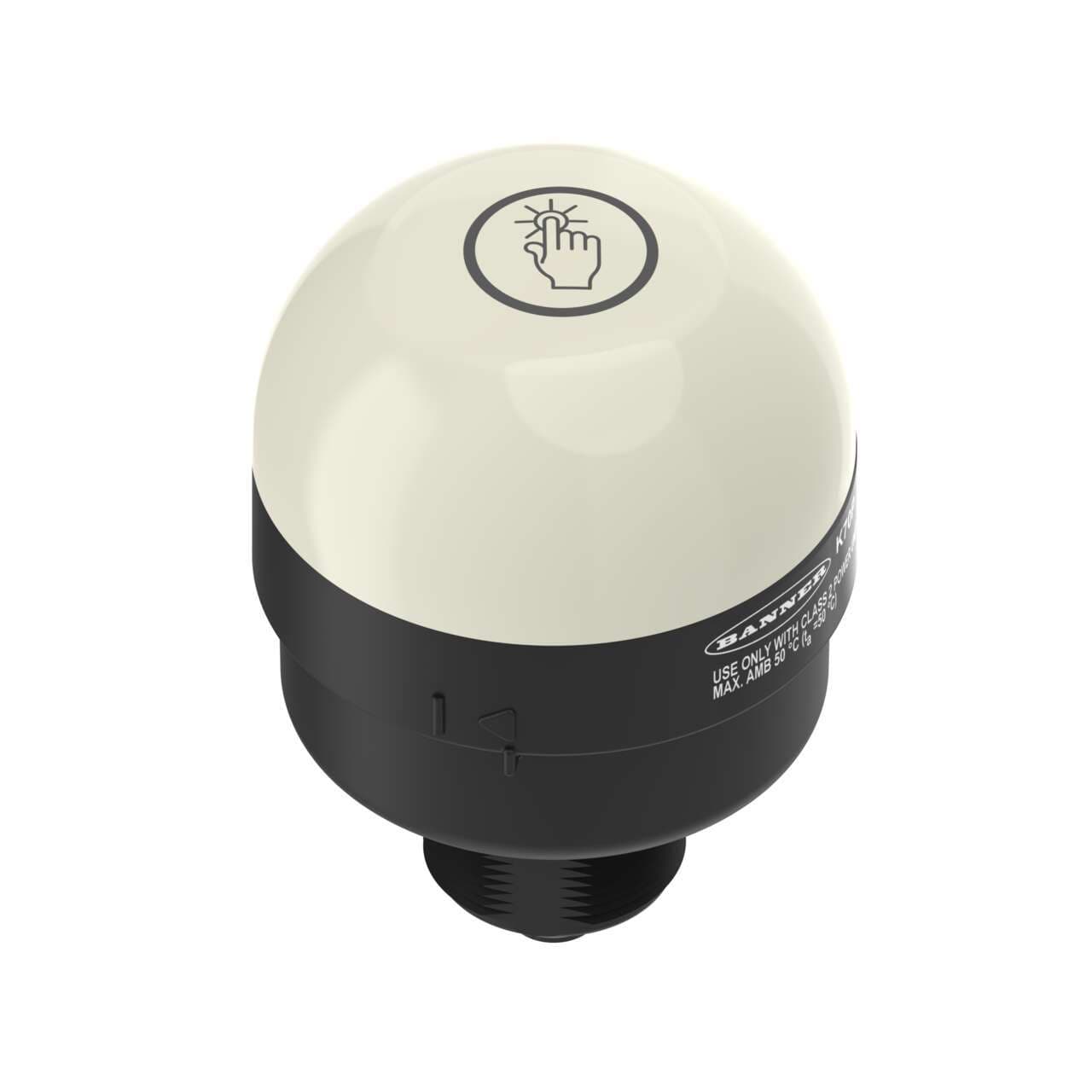

K70ANT2GRYF2Q Banner Pick-to-Light Sensors

K70ANT2GRYF2Q on Powermatic Associates
Banner
  • K70ANT2GRYF2Q
  • K70ANT2GRYF2Q

Part#:K70ANT2GRYF2Q

Alt. Part#:96931

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K70 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP65; Input: NPN (NO); Colors: Green Red Yellow; M12 Integral QD

Product Details

  • Weight
    199.58048 g
  • Country Of Origin
    MX
  • Feature: Quick Disconnect
    Yes
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Max Op. Temperature (°C)
    50
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 103.5
  • Max Output Response Time (ms)
    50
  • Output Type
    NPN
  • Input Type
    NPN
  • Supply Voltage
    12-30 V dc
  • Operation
    Normally Open
  • Pick-to-Light Function
    F2
  • Number of Input Pins/Conductors
    8
  • Max Current Color (mA)
    220
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Lumens Color 3
    13.0
  • Color Option 3
    Yellow
  • Color Option 2
    Red
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 1
    45.0
  • Color Option 1
    Green
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Product Size (mm)
    70
  • Actuation
    Yes
  • Housing Style
    Base Mount - Dome Window
  • Mounting Thread
    M30 x 1.5
  • Number of Colors / Segments
    3
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Activation Function
    Capacitive Touch
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Power Source
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70ANT2GRYF2Q on Powermatic Associates is $216.00. Order now.

About the product

Banner Engineering K70ANT2GRYF2Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape with both the window and base made from polycarbonate (PC). This part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted on the surface, base, or pole flush with a 30mm hole. The dome diameter is 70mm / 2-3/4". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and has an IP65 degree of protection. The operating mode includes a momentary job light (G/R/Y; Green or Red or Yellow) that is ON when one of the 3 job inputs is active, and touch activates the output only NO (Normally Open) touch output. It has a current consumption of 220mA, 3 x digital inputs (12-30Vdc; NPN) for JOB color control, and 1 x digital output (12-30Vdc; NPN) for Touch.
