K50LYXXPQPMA Banner Pick-to-Light Sensors

K50LYXXPQPMA on Powermatic Associates
Banner

Part#:K50LYXXPQPMA

Manufacturer:Banner

Alt. Part#:76903

Product Lifecycle:Active

Get a quick Quote!

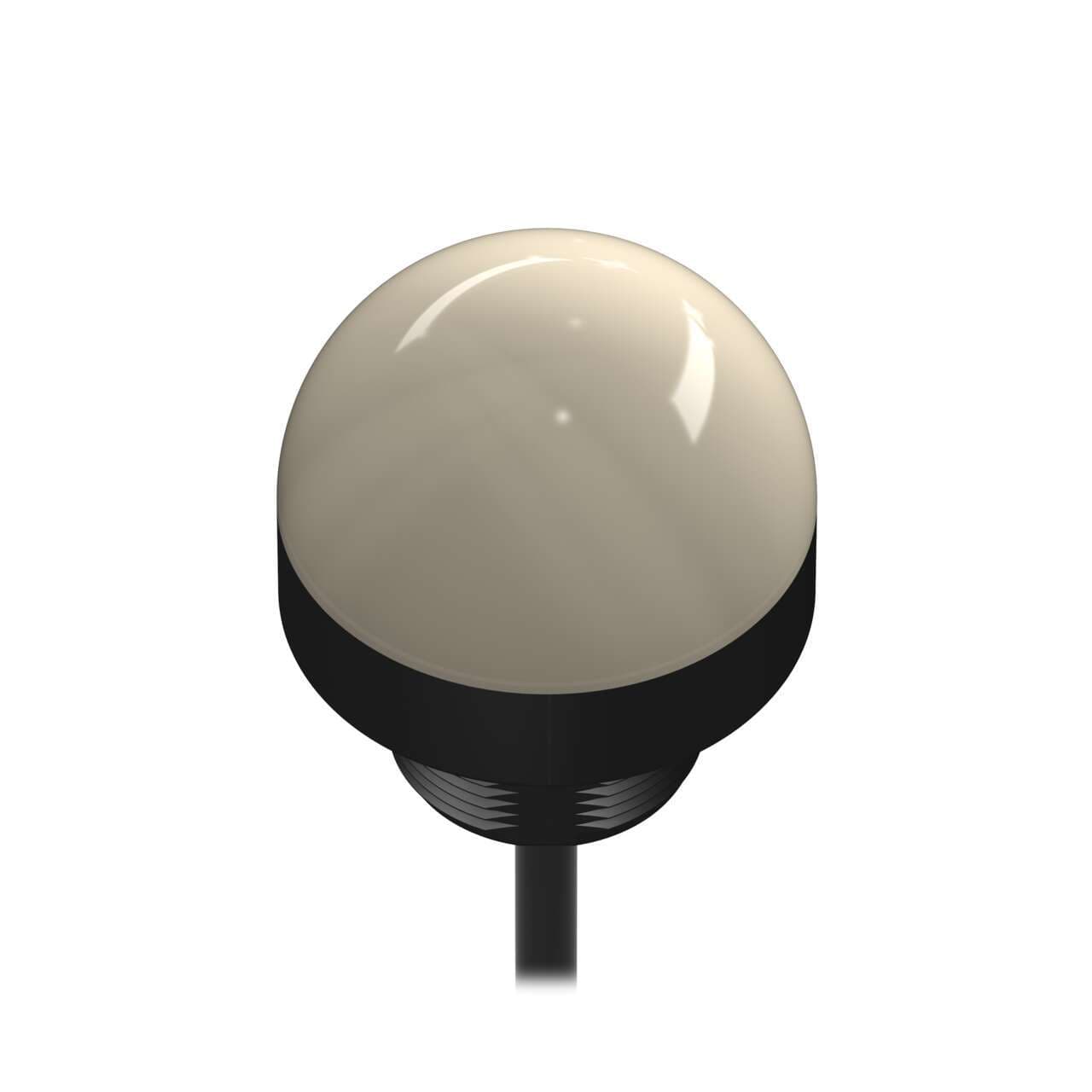

K50 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Yellow; 150 mm (6 in) PUR Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LYXXPQPMA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Multi-Color Device
    Single Color On
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    1
  • Number of Input Pins/Conductors
    4
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • Input Type
    PNP
  • Supply Voltage
    18-30 V dc
  • Max Current Color (mA)
    40
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Pigtail PUR QD
  • Color Option 1
    Yellow
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Number of Colors / Segments
    1
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LYXXPQPMA Description

Banner Engineering K50LYXXPQPMA is a pilot light from the EZ-LIGHT series designed for various signaling applications. This product features a 1-color Yellow LED illumination housed in a black casing. The dome window and base are made from polycarbonate (PC), ensuring durability and resistance to environmental conditions. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The pilot light operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm (2 inches). This device can operate in ambient air temperatures ranging from -40°C to +50°C. It is designed to withstand harsh conditions, evidenced by its IP67 and IP69K degree of protection against dust and water ingress. The current consumption is rated at 40mA, and it features 1 x digital input (18-30Vdc; PNP) for color control.

Related documents K50LYXXPQPMA Specs

K50LYXXPQPMA 130865.pdf

Manufacturer warranty

$119.00

Request a quote, and we will send availability within minutes.

Select Qty:

$119.00

$119.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
