K50LXXGPQPMA Banner Pick-to-Light Sensors

K50LXXGPQPMA on Powermatic Associates
Banner

Part#:K50LXXGPQPMA

Manufacturer:Banner

Alt. Part#:76839

Product Lifecycle:Active

Get a quick Quote!

K50 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green; 150 mm (6 in) PUR Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LXXGPQPMA Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • IO Link
    No
  • Wireless
    No
  • Modbus RTU
    No
  • Multi-Color Device
    Single Color On
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • Environmental Rating
    IP67; IP69
  • Number of Input Pins/Conductors
    4
  • Max Input Response Time (ms)
    1
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • Supply Voltage
    18-30 V dc
  • Max Current Color (mA)
    40
  • Input Type
    PNP
  • Quick Disconnect Type
    M12 (Euro)
  • Color Technology
    Standard LED
  • Connection
    Pigtail PUR QD
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Base Mount - Dome Window
  • Indication
    Yes
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Feature: Chemical Resistant
    No
  • Max Op. Temperature (°C)
    50
  • Color Option 3
    Green
  • Power Source
    DC
  • Product Size (mm)
    50
  • Number of Colors / Segments
    1
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LXXGPQPMA Description

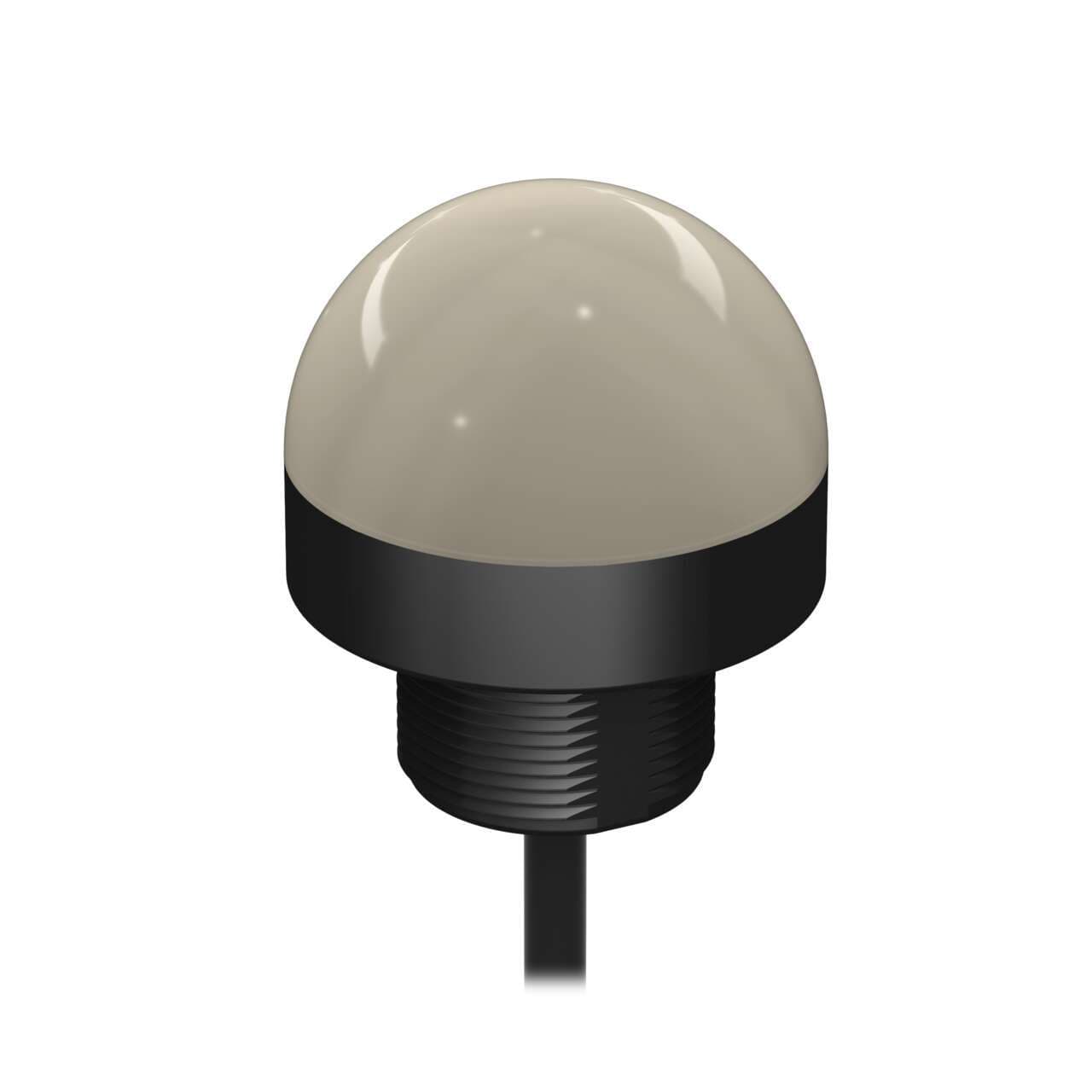

Banner Engineering K50LXXGPQPMA is a pilot light from the EZ-LIGHT series designed for various signaling applications. This part features a 1-color White LED illumination housed in a black casing. The dome window and base are made from polycarbonate (PC), ensuring durability and resistance to environmental conditions. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm (approximately 2 inches). This pilot light can operate in ambient air temperatures ranging from -40°C to +50°C. It is designed to withstand harsh conditions, evidenced by its IP67 and IP69K degree of protection against dust and water ingress. The current consumption is rated at 40mA, and it features 1 x digital input (18-30Vdc; PNP) for color control.

Related documents K50LXXGPQPMA Specs

K50LXXGPQPMA 121899.pdf
