K50LGRY6PQP Banner Pick-to-Light Sensors

K50LGRY6PQP on Powermatic Associates
Banner

Part#:K50LGRY6PQP

Manufacturer:Banner

Alt. Part#:76958

Product Lifecycle:Active

Get a quick Quote!

K50 Series EZ-LIGHT: 3-Color I/O Block Compatible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; Environmental Rating: IP67; IP69K; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) 5-pin M12 PVC Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K50LGRY6PQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    158.7572 g
  • Country Of Origin
    MX
  • Multi-Color Device
    Single Color On
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Min Op. Temperature (°C)
    -20
  • Primary Housing Color
    Black
  • Primary Window Material
    Polycarbonate Diffused
  • Feature: Washdown Rated
    Yes
  • Environmental Rating
    IP67; IP69
  • Max Input Response Time (ms)
    250
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • I/O Block Compatible
    Yes
  • Max Current Color (mA)
    50
  • Input Type
    PNP
  • Supply Voltage
    18-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 2
    17.0
  • Color Option 2
    Red
  • Color 1 - Wavelength/Color Temp/Coordinates
    528 nm
  • Number of Input Pins/Conductors
    5
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Lumens Color 3
    56.0
  • Color Option 3
    Yellow
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 1
    59.0
  • Connection
    Pigtail QD
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Product Size (mm)
    50
  • Mounting Thread
    M30 x 1.5
  • Number of Colors / Segments
    3
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC
  • Power Source
    DC
  • Cable Length (m)
    0.15
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

K50LGRY6PQP Description

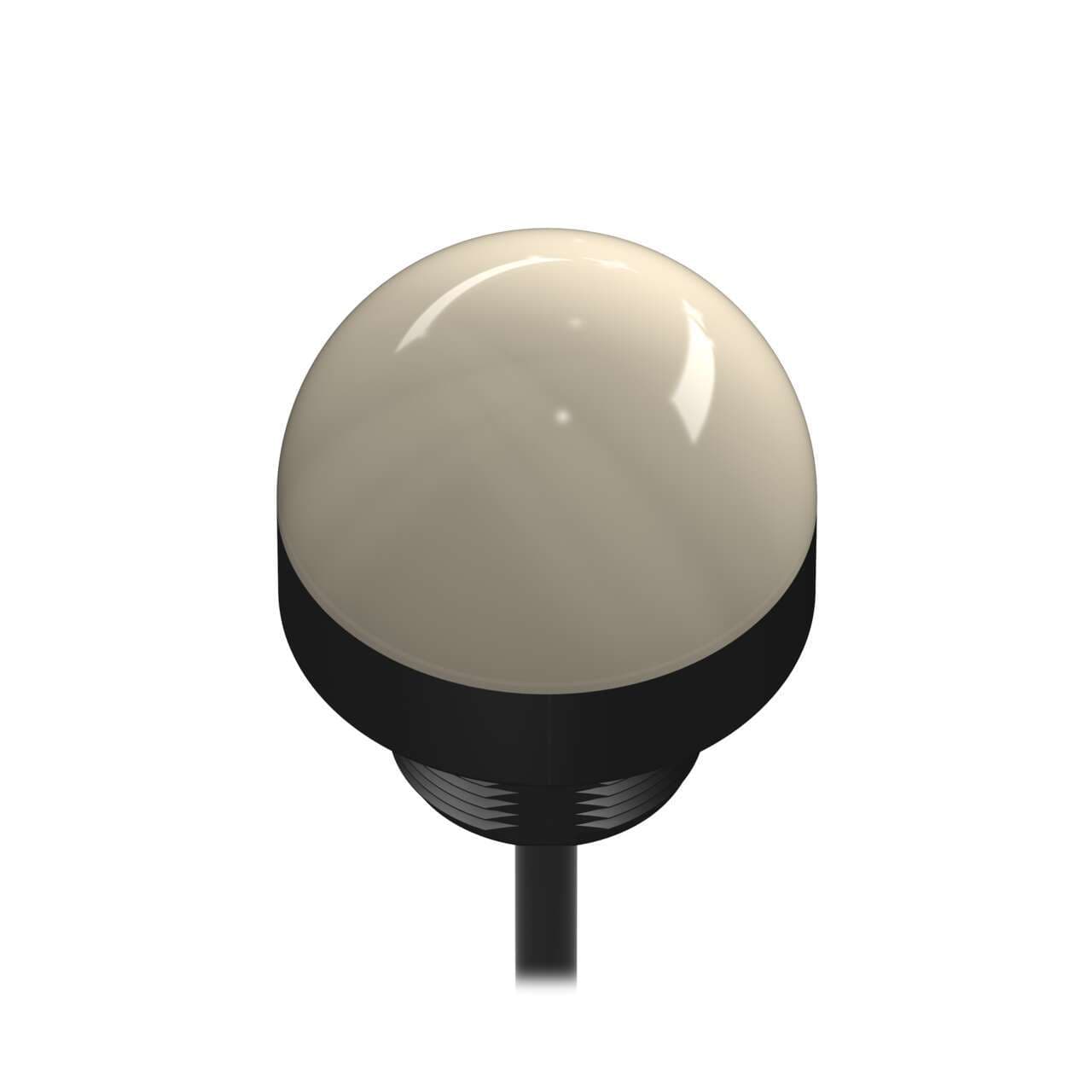

Banner Engineering K50LGRY6PQP is a pilot light from the EZ-LIGHT series designed for indicating operations with its LED pilot light indicator. This part features an I.O. block compatible 3-color G/R/Y color pattern LED illumination housed in a black dome-shaped window made from diffused polycarbonate (PC) with a base of the same material. It comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. The K50LGRY6PQP operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on a surface, base, or pole flush with a 30mm hole M30 thread. The dome has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -20°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 50mA, and it features 3 x digital inputs (18-30Vdc; PNP) for color control.

Related documents K50LGRY6PQP Specs

K50LGRY6PQP 196759.pdf

Manufacturer warranty

$122.00

Request a quote, and we will send availability within minutes.
