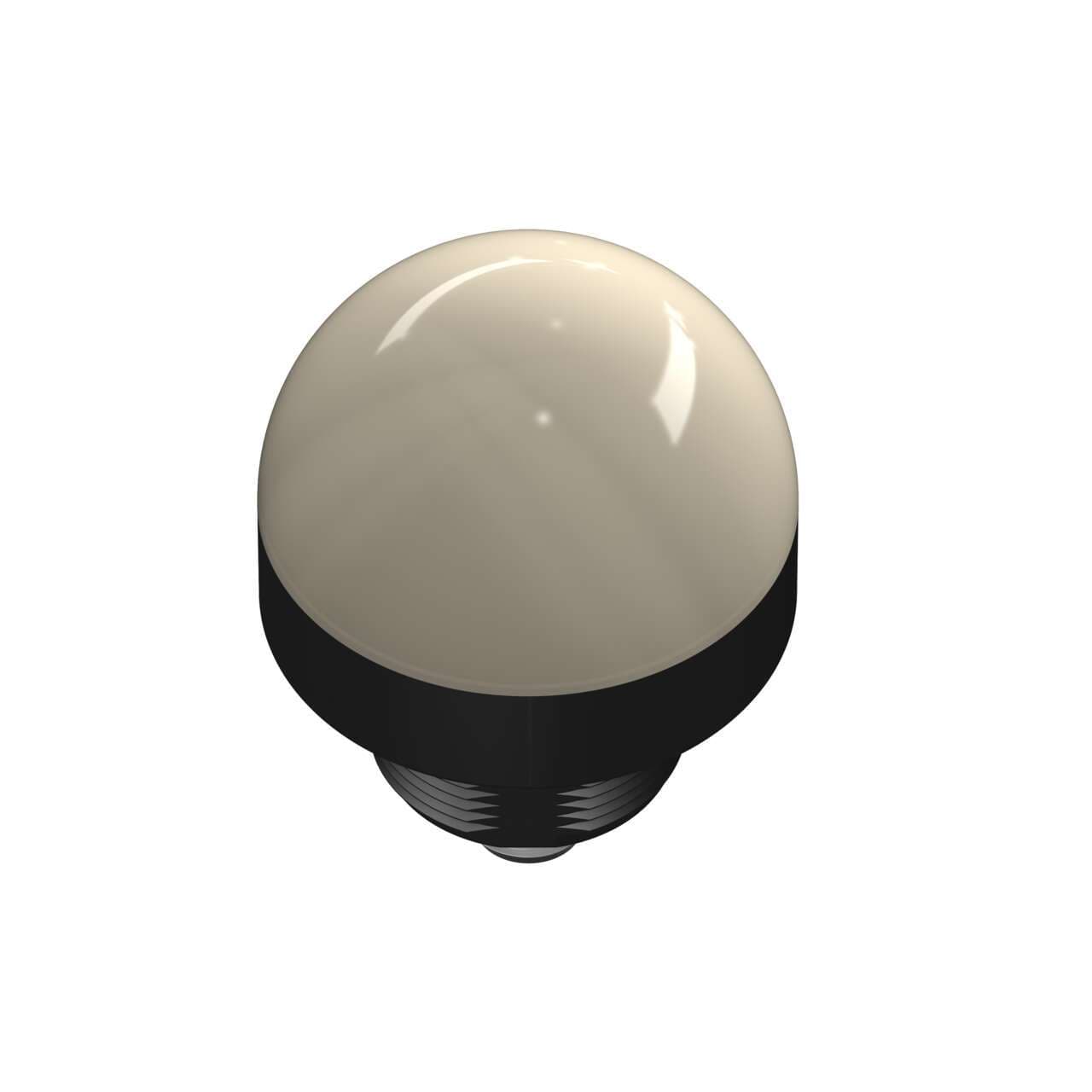

K50LGRBA120Q Banner Pick-to-Light Sensors

Product Details

• Weight
  113.398 g
• Country Of Origin
  MX
• Wireless
  No
• Pro-Editor Compatible (Discrete)
  No
• Modbus RTU
  No
• Feature: Quick Disconnect
  Yes
• IO Link
  No
• Feature: Chemical Resistant
  No
• Multi-Color Device
  Single Color On
• Feature: Audible
  No
• Primary Window Material
  Polycarbonate Diffused
• Primary Housing Color
  Black
• Feature: Washdown Rated
  Yes
• Max Op. Temperature (°C)
  50
• Feature: Hazardous Area
  No
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 55°C
• Min Op. Temperature (°C)
  -40
• Number of Input Pins/Conductors
  5
• Max Current Color (mA)
  15
• Color Option 2
  Red
Environmental Rating
IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
50.0 x 69.0
Input Type
AC
Max Input Response Time (ms)
1
Color Option 3
Blue
Supply Voltage
85-130 V ac
Product Size (mm)
50
Color Technology
Standard LED
Color Option 1
Green
Connection
Integral QD
Animation Option 1
Solid On
Power
AC
Number of Colors / Segments
3
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Cable Length (m)
0.15
Power Source
AC
Housing Style
Base Mount - Dome Window
Primary Housing Material
Polycarbonate
Mounting Thread
M30 x 1.5
Indication
Yes
