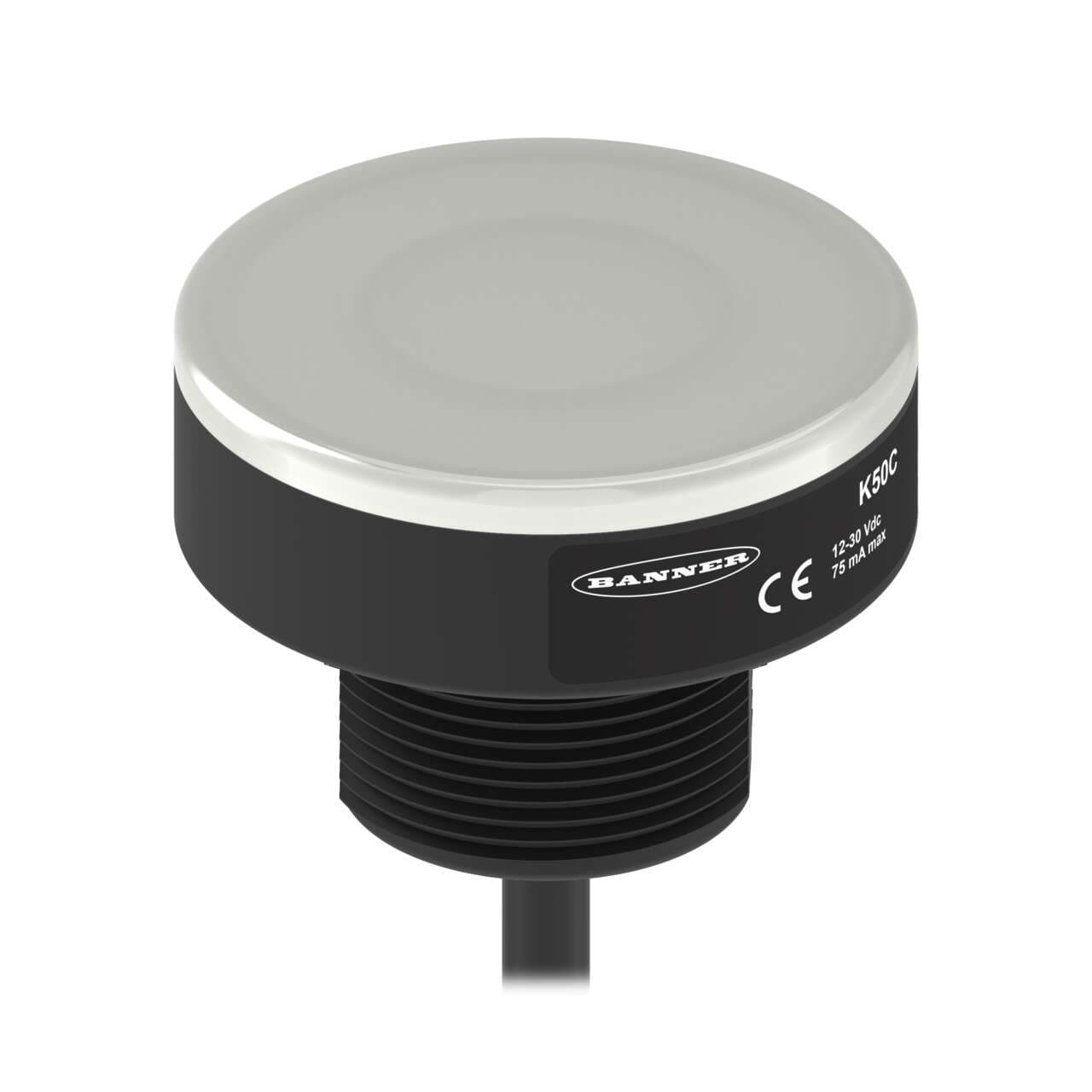

K50CL2RGB7 Banner Pick-to-Light Sensors

Product Details

• Weight
  9.07184 g
• Country Of Origin
  MX
• Pro-Editor Compatible (Discrete)
  Yes
• Feature: Chemical Resistant
  No
• Feature: Audible
  No
• Primary Window Material
  Polycarbonate Diffused
• Storage Temp (°C)
  -40 to 70
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -40
• Modbus RTU
  No
• Wireless
  No
• Feature: Hazardous Area
  No
• Feature: Washdown Rated
  Yes
• IO Link
  No
• Multi-Color Device
  Single Color On
• Max Op. Relative Humidity Non-Condensing (%)
  90% @ 50°C
• Max Op. Temperature (°C)
  50
• Max Input Response Time (ms)
  250
• NEMA Type and UL Type Rating
  NEMA and UL 4X, 13
• Environmental Rating
  IP66; IP67; IP69
Physical Dimensions (LxWxH or DxH mm)
50.0 x 37.0
Input Type
Bimodal (PNP/NPN)
Supply Voltage
10-30 V dc
Number of Input Pins/Conductors
5
Color 7 - Wavelength/Color Temp/Coordinates
0.154, 0.321
Wire Selectable Function
Multi-Function
Max Current Color (mA)
220
Color 6 - Wavelength/Color Temp/Coordinates
0.365, 0.176
Lumens Color 6
6.8
Lumens Color 7
20.1
Color 5 - Wavelength/Color Temp/Coordinates
5950K
Color Option 6
Magenta
Lumens Color 5
17.0
Color Option 5
White
Color Option 7
Cyan
Lumens Color 4
13.8
Color 4 - Wavelength/Color Temp/Coordinates
0.457, 0.485
Color Option 4
Yellow
Color 2 - Wavelength/Color Temp/Coordinates
530 nm
Color Option 3
Blue
Color Option 2
Green
Color 3 - Wavelength/Color Temp/Coordinates
470 nm
Lumens Color 2
17.1
Lumens Color 3
3.8
Lumens Color 1
5.0
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Connection
Cable
Color Option 1
Red
Color Technology
RGB Configurable
Primary Housing Material
Polycarbonate
Housing Style
Base Mount - Flat Window
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Number of Colors / Segments
7
Product Size (mm)
50
Mounting Thread
M30 x 1.5
Indication
Yes
Power
DC
Power Source
DC
