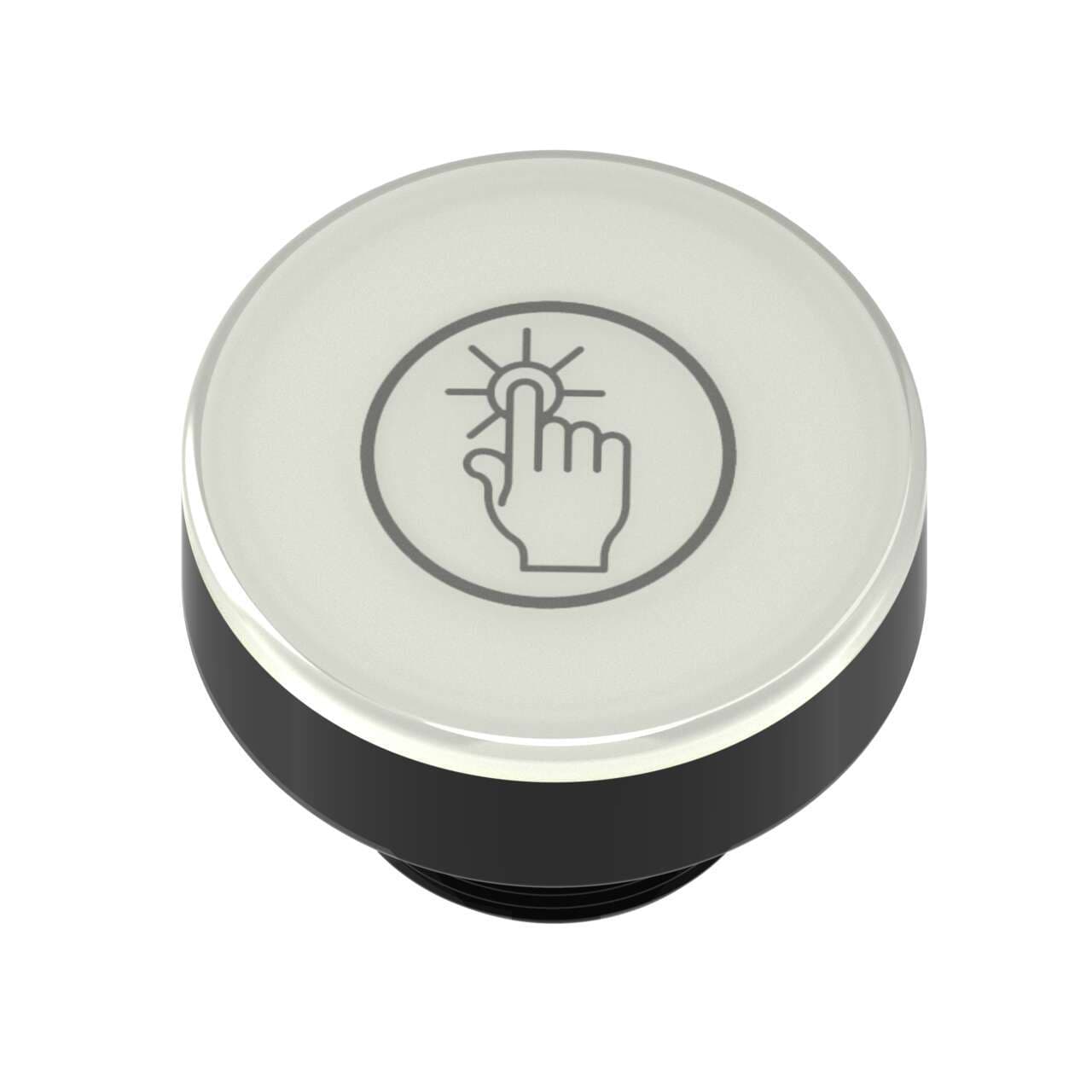

K50CANT2GRYF2Q Banner Pick-to-Light Sensors
Part#:K50CANT2GRYF2Q
Alt. Part#:803060
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Compact Series: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: NPN (NO); Colors: Green Red Yellow; 8-pin M12 Integral QD
Product Details
- Weight 99.79024 g
- Country Of Origin MX
- IO Link No
- Multi-Color Device Single Color On
- Feature: Quick Disconnect Yes
- Feature: Audible No
- Button Operation Momentary
- Primary Window Material Polycarbonate Diffused
- Output Type NPN
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Max Op. Temperature (°C) 50
- Pick-to-Light Function F2
- Supply Voltage 12-30 V dc
- Max Output Response Time (ms) 50
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 1 Green
- Lumens Color 2 13.0
- Power Source DC
- Connection Integral QD
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Activation Function Capacitive Touch
- Power DC
- Actuation Yes
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Washdown Rated Yes
- Primary Housing Color Black
- Storage Temp (°C) -40 to 70
- Min Op. Temperature (°C) -40
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.0
- Input Type NPN
- Number of Input Pins/Conductors 8
- Operation Normally Open
- Max Current Color (mA) 75
- Color Option 3 Yellow
- Lumens Color 3 24.0
- Color Option 2 Red
- Lumens Color 1 29.0
- Quick Disconnect Type M12 (Euro)
- Product Size (mm) 50
- Animation Option 1 Solid On
- Number of Colors / Segments 3
- Mounting Thread M30 x 1.5
- Primary Housing Material Polycarbonate
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Housing Style Base Mount - Flat Window
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50CANT2GRYF2Q on Powermatic Associates is $180.00. Order now.
About the product
Banner Engineering K50CANT2GRYF2Q is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series, featuring a flat-top Gen.2 design with 2-color LED illumination indicating red when not activated and green when activated. It has a black housing with a flat window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector and operates within a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. It offers versatile mounting options including surface or base pole with an M30 thread and has a 50mm button diameter. The K50CANT2GRYF2Q is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated for IP67 and IP69K degrees of protection. Its operating mode is a latched normally open (NO) touch output, with a current consumption of 75mA. Additionally, it features 2 x digital inputs for color control and 1 x digital output for touch, both supporting 12-30Vdc PNP/NPN.
